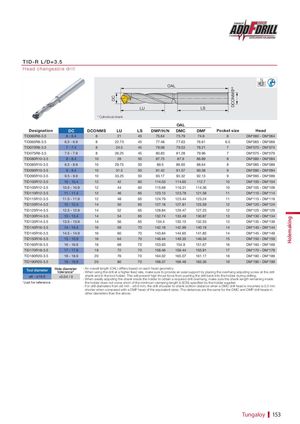

TID-R L/D=3.5
Head changeable drill
| DC | O | AL | CONMSh6 | ||||||
| Cylindr | ical shank | LU | LS | D | |||||
| OAL | |||||||||
| Designation | DC | DCONMS | LU | LS | DMP/H/N | DMC | DMF | Pocket size | Head |
| TID060R8-3.5 | 6 - 6.4 | 8 | 21 | 45 | 75.64 | 75.79 | 74.8 | 6 | DM060 - DM064 |
| TID065R8-3.5 | 6.5 - 6.9 | 8 | 22.75 | 45 | 77.48 | 77.63 | 76.61 | 6.5 | DM065 - DM069 |
| TID070R8-3.5 | 7 - 7.4 | 8 | 24.5 | 45 | 79.08 | 79.53 | 78.21 | 7 | DM070 - DM074 |
| TID075R8-3.5 | 7.5 - 7.9 | 8 | 26.25 | 45 | 80.83 | 81.28 | 79.96 | 7 | DM075 - DM079 |
| TID080R10-3.5 | 8 - 8.4 | 10 | 28 | 50 | 87.75 | 87.9 | 86.89 | 8 | DM080 - DM084 |
| TID085R10-3.5 | 8.5 - 8.9 | 10 | 29.75 | 50 | 89.5 | 89.65 | 88.64 | 8 | DM085 - DM089 |
| TID090R10-3.5 | 9 - 9.4 | 10 | 31.5 | 50 | 91.42 | 91.57 | 90.38 | 9 | DM090 - DM094 |
| TID095R10-3.5 | 9.5 - 9.9 | 10 | 33.25 | 50 | 93.17 | 93.32 | 92.13 | 9 | DM095 - DM099 |
| TID100R12-3.5 | 10 - 10.4 | 12 | 42 | 60 | 114.03 | 114.65 | 112.7 | 10 | DM100 - DM104 |
| TID105R12-3.5 | 10.5 - 10.9 | 12 | 44 | 60 | 115.69 | 116.31 | 114.36 | 10 | DM105 - DM109 |
| TID110R12-3.5 | 11 - 11.4 | 12 | 46 | 65 | 123.13 | 123.78 | 121.58 | 11 | DM110 - DM114 |
| TID115R12-3.5 | 11.5 - 11.9 | 12 | 48 | 65 | 124.79 | 125.44 | 123.24 | 11 | DM115 - DM119 |
| TID120R14-3.5 | 12 - 12.4 | 14 | 50 | 65 | 127.18 | 127.81 | 125.59 | 12 | DM120 - DM124 |
| TID125R14-3.5 | 12.5 - 12.9 | 14 | 52 | 65 | 128.84 | 129.47 | 127.25 | 12 | DM125 - DM129 |
| TID130R14-3.5 | 13 - 13.4 | 14 | 54 | 65 | 132.74 | 133.49 | 130.87 | 13 | DM130 - DM134 |
| TID135R14-3.5 | 13.5 - 13.9 | 14 | 56 | 65 | 134.4 | 135.15 | 132.53 | 13 | DM135 - DM139 |
| TID140R16-3.5 | 14 - 14.4 | 16 | 58 | 70 | 142.18 | 142.99 | 140.19 | 14 | DM140 - DM144 |
| TID145R16-3.5 | 14.5 - 14.9 | 16 | 60 | 70 | 143.84 | 144.65 | 141.85 | 14 | DM145 - DM149 |
| TID150R16-3.5 | 15 - 15.9 | 16 | 64 | 70 | 148.44 | 149.35 | 146.34 | 15 | DM150 - DM159 |
| TID160R18-3.5 | 16 - 16.9 | 18 | 68 | 70 | 153.93 | 154.9 | 151.67 | 16 | DM160 - DM169 |
| TID170R18-3.5 | 17 - 17.9 | 18 | 72 | 70 | 158.46 | 159.44 | 155.91 | 17 | DM170 - DM179 |
| TID180R20-3.5 | 18 - 18.9 | 20 | 76 | 70 | 164.02 | 165.07 | 161.17 | 18 | DM180 - DM189 |
| TID190R20-3.5 | 19 - 19.9 | 20 | 80 | 70 | 168.37 | 169.48 | 165.36 | 19 | DM190 - DM199 |
| ø6 - ø19.9 H Tool diameter | +0.04 / 0 ole diameter tolerance | - An overall length - When using the shank end in the | (OAL) differs b drill at a higher tool holder. Th | ased on ea feed rate, m is will preve | ch head geometr ake sure to provi nt high thrust for | y. de an axial s ce from pushi | upport by plac ng the drill bac | ing the overhang adj k into the holder dur | usting screw at the drill ing drilling. |
- When axially adjusting the shank inside the holder to obtain a required drill overhang, make sure the shank length remaining inside *Just for reference the holder does not come short of the minimum clamping length (LSCN) specified by the holder supplier. - For drill diameters from ø8 mm - ø9.9 mm, the drill shoulder to shank bottom distance when a DMC drill head is mounted is 0.3 mm shorter when compared with a DMP head of the equivalent sizes. The distances are the same for the DMC and DMP drill heads in other diameters than the above.
