New

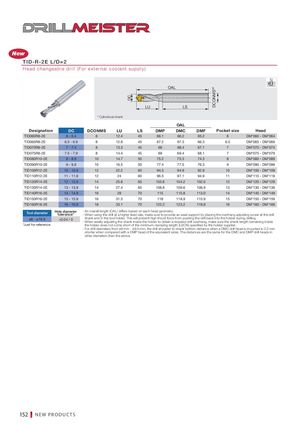

TID-R-2E L/D=2
Head changeable drill ( F o r external coolant s u p p l y )
| Cylindric | al shank | DC | O LU | AL LS | DCONMSh6 | ||||
| OAL | |||||||||
| Designation | DC | DCONMS | LU | LS | DMP | DMC | DMF | Pocket siz | Head e |
| TID060R8-2E | 6 - 6.4 | 8 | 12.4 | 45 | 66.1 | 66.2 | 65.2 | 6 | DM060 - DM064 |
| TID065R8-2E | 6.5 - 6.9 | 8 | 12.8 | 45 | 67.2 | 67.3 | 66.3 | 6.5 | DM065 - DM069 |
| TID070R8-2E | 7 - 7.4 | 8 | 13.3 | 45 | 68 | 68.4 | 67.1 | 7 | DM070 - DM074 |
| TID075R8-2E | 7.5 - 7.9 | 8 | 14.4 | 45 | 69 | 69.4 | 68.1 | 7 | DM075 - DM079 |
| TID080R10-2E | 8 - 8.9 | 10 | 14.7 | 50 | 75.2 | 75.3 | 74.3 | 8 | DM080 - DM089 |
| TID090R10-2E | 9 - 9.9 | 10 | 16.5 | 50 | 77.4 | 77.5 | 76.3 | 9 | DM090 - DM099 |
| TID100R12-2E | 10 - 10.9 | 12 | 22.2 | 60 | 94.3 | 94.9 | 92.9 | 10 | DM100 - DM109 |
| TID110R12-2E | 11 - 11.9 | 12 | 24 | 60 | 96.5 | 97.1 | 94.9 | 11 | DM110 - DM119 |
| TID120R14-2E | 12 - 12.9 | 14 | 25.8 | 65 | 103.6 | 104.2 | 102.0 | 12 | DM120 - DM129 |
| TID130R14-2E | 13 - 13.9 | 14 | 27.4 | 65 | 108.8 | 109.6 | 106.9 | 13 | DM130 - DM139 |
| TID140R16-2E | 14 - 14.9 | 16 | 29 | 70 | 115 | 115.8 | 113.0 | 14 | DM140 - DM149 |
| TID150R16-2E | 15 - 15.9 | 16 | 31.5 | 70 | 118 | 118.9 | 115.9 | 15 | DM150 - DM159 |
| TID160R18-2E | 16 - 16.9 | 18 | 33.1 | 70 | 122.2 | 123.2 | 119.9 | 16 | DM160 - DM169 |
| ø6 - ø16.9 H Tool diameter | +0.04 / 0 ole diameter tolerance | - An overall length ( - When using the dr shank end in the t | OAL) diffe ill at a hig ool holder | rs based on her feed rate, . This will pre | each head geomet make sure to pro vent high thrust fo | ry. vide an axial su rce from pushin | pport by pla g the drill ba | cing the overhang a ck into the holder | djusting screw at the drill during drilling. |
- When axially adjusting the shank inside the holder to obtain a required drill overhang, make sure the shank length remaining inside *Just for reference the holder does not come short of the minimum clamping length (LSCN) specified by the holder supplier. - For drill diameters from ø8 mm - ø9.9 mm, the drill shoulder to shank bottom distance when a DMC drill head is mounted is 0.3 mm shorter when compared with a DMP head of the equivalent sizes. The distances are the same for the DMC and DMP drill heads in other diameters than the above.
