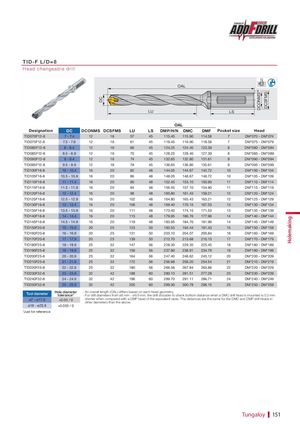

TID-F L/D=8
Head changeable drill
| O | AL | S Sh6 | ||||||||
| DC | DCSFM DCONM | |||||||||
| LU | LS | |||||||||
| OA | L | |||||||||
| Designation | DC | DCONM | S DCSFMS | LU | LS | DMP/H/N | DMC | DMF | Pocket size | Head |
| TID070F12-8 | 7 - 7.4 | 12 | 16 | 57 | 45 | 115.45 | 115.90 | 114.58 | 7 | DM070 - DM074 |
| TID075F12-8 | 7.5 - 7.9 | 12 | 16 | 61 | 45 | 119.45 | 119.90 | 118.58 | 7 | DM075 - DM079 |
| TID080F12-8 | 8 - 8.4 | 12 | 16 | 66 | 45 | 124.25 | 124.40 | 123.39 | 8 | DM080 - DM084 |
| TID085F12-8 | 8.5 - 8.9 | 12 | 16 | 70 | 45 | 128.25 | 128.40 | 127.39 | 8 | DM085 - DM089 |
| TID090F12-8 | 9 - 9.4 | 12 | 16 | 74 | 45 | 132.65 | 132.80 | 131.61 | 9 | DM090 - DM094 |
| TID095F12-8 | 9.5 - 9.9 | 12 | 16 | 78 | 45 | 136.65 | 136.80 | 135.61 | 9 | DM095 - DM099 |
| TID100F16-8 | 10 - 10.4 | 16 | 20 | 82 | 48 | 144.05 | 144.67 | 142.72 | 10 | DM100 - DM104 |
| TID105F16-8 | 10.5 - 10.9 | 16 | 20 | 86 | 48 | 148.05 | 148.67 | 146.72 | 10 | DM105 - DM109 |
| TID110F16-8 | 11 - 11.4 | 16 | 20 | 90 | 48 | 152.45 | 153.10 | 150.90 | 11 | DM110 - DM114 |
| TID115F16-8 | 11.5 - 11.9 | 16 | 20 | 94 | 48 | 156.45 | 157.10 | 154.90 | 11 | DM115 - DM119 |
| TID120F16-8 | 12 - 12.4 | 16 | 20 | 98 | 48 | 160.80 | 161.43 | 159.21 | 12 | DM120 - DM124 |
| TID125F16-8 | 12.5 - 12.9 | 16 | 20 | 102 | 48 | 164.80 | 165.43 | 163.21 | 12 | DM125 - DM129 |
| TID130F16-8 | 13 - 13.4 | 16 | 20 | 106 | 48 | 169.40 | 170.15 | 167.53 | 13 | DM130 - DM134 |
| TID135F16-8 | 13.5 - 13.9 | 16 | 20 | 111 | 48 | 173.40 | 174.15 | 171.53 | 13 | DM135 - DM139 |
| TID140F16-8 | 14 - 14.4 | 16 | 20 | 115 | 48 | 179.95 | 180.76 | 177.96 | 14 | DM140 - DM144 |
| TID145F16-8 | 14.5 - 14.9 | 16 | 20 | 119 | 48 | 183.95 | 184.76 | 181.96 | 14 | DM145 - DM149 |
| TID150F20-8 | 15 - 15.9 | 20 | 25 | 123 | 50 | 193.53 | 194.44 | 191.43 | 15 | DM150 - DM159 |
| TID160F20-8 | 16 - 16.9 | 20 | 25 | 131 | 50 | 203.10 | 204.07 | 200.84 | 16 | DM160 - DM169 |
| TID170F20-8 | 17 - 17.9 | 20 | 25 | 139 | 50 | 212.70 | 213.68 | 210.15 | 17 | DM170 - DM179 |
| TID180F25-8 | 18 - 18.9 | 25 | 32 | 147 | 56 | 228.30 | 229.35 | 225.45 | 18 | DM180 - DM189 |
| TID190F25-8 | 19 - 19.9 | 25 | 32 | 156 | 56 | 237.80 | 238.91 | 234.79 | 19 | DM190 - DM199 |
| TID200F25-8 | 20 - 20.9 | 25 | 32 | 164 | 56 | 247.40 | 248.62 | 245.12 | 20 | DM200 - DM209 |
| TID210F25-8 | 21 - 21.9 | 25 | 32 | 172 | 56 | 256.98 | 258.20 | 254.54 | 21 | DM210 - DM219 |
| TID220F25-8 | 22 - 22.9 | 25 | 32 | 180 | 56 | 266.56 | 267.84 | 263.86 | 22 | DM220 - DM229 |
| TID230F32-8 | 23 - 23.9 | 32 | 42 | 188 | 60 | 280.13 | 281.51 | 277.28 | 23 | DM230 - DM239 |
| TID240F32-8 | 24 - 24.9 | 32 | 42 | 196 | 60 | 289.70 | 291.11 | 286.71 | 24 | DM240 - DM249 |
| TID250F32-8 | 25 - 25.9 | 32 | 42 | 205 | 60 | 299.30 | 300.78 | 296.15 | 25 | DM250 - DM259 |
| ø7 - ø17.9 ø18 - ø25.9 H Tool diameter | +0.05 / 0 +0.055 / 0 ole diameter tolerance | - An overa - For drill d shorter w other dia | ll length (OAL) differ iameters from ø8 m hen compared with meters than the abo | s based m - ø9. a DMP ve. | on each hea 9 mm, the dri head of the | d geometry. ll shoulder to sh equivalent sizes. | ank bottom The distanc | distance wh es are the s | en a DMC drill hea ame for the DMC a | d is mounted is 0.3 mm nd DMP drill heads in |
*Just for reference
