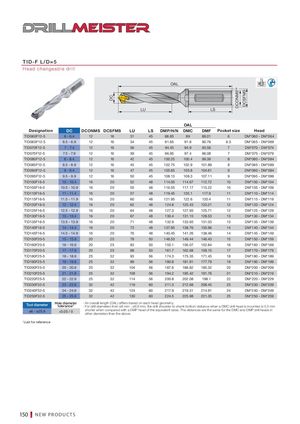

TID-F L/D=5
Head changeable drill
| OAL | MS Sh6 | |||||||||
| DC | DCSF DCONM | |||||||||
| LU | LS | |||||||||
| OAL | ||||||||||
| Designation | DC | DCONMS | DCSFMS | LU | LS | DMP/H/N | DMC | DMF | Head size | |
| TID060F12-5 | 6 - 6.4 | 12 | 16 | 31 | 45 | 88.85 | 89 | 88.01 | 6 | DM060 - DM064 |
| TID065F12-5 | 6.5 - 6.9 | 12 | 16 | 34 | 45 | 91.65 | 91.8 | 90.78 | 6.5 | DM065 - DM069 |
| TID070F12-5 | 7 - 7.4 | 12 | 16 | 36 | 45 | 94.45 | 94.9 | 93.58 | 7 | DM070 - DM074 |
| TID075F12-5 | 7.5 - 7.9 | 12 | 16 | 39 | 45 | 96.95 | 97.4 | 96.08 | 7 | DM075 - DM079 |
| TID080F12-5 | 8 - 8.4 | 12 | 16 | 42 | 45 | 100.25 | 100.4 | 99.39 | 8 | DM080 - DM084 |
| TID085F12-5 | 8.5 - 8.9 | 12 | 16 | 45 | 45 | 102.75 | 102.9 | 101.89 | 8 | DM085 - DM089 |
| TID090F12-5 | 9 - 9.4 | 12 | 16 | 47 | 45 | 105.65 | 105.8 | 104.61 | 9 | DM090 - DM094 |
| TID095F12-5 | 9.5 - 9.9 | 12 | 16 | 50 | 45 | 108.15 | 108.3 | 107.11 | 9 | DM095 - DM099 |
| TID100F16-5 | 10 - 10.4 | 16 | 20 | 52 | 48 | 114.05 | 114.67 | 112.72 | 10 | DM100 - DM104 |
| TID105F16-5 | 10.5 - 10.9 | 16 | 20 | 55 | 48 | 116.55 | 117.17 | 115.22 | 10 | DM105 - DM109 |
| TID110F16-5 | 11 - 11.4 | 16 | 20 | 57 | 48 | 119.45 | 120.1 | 117.9 | 11 | DM110 - DM114 |
| TID115F16-5 | 11.5 - 11.9 | 16 | 20 | 60 | 48 | 121.95 | 122.6 | 120.4 | 11 | DM115 - DM119 |
| TID120F16-5 | 12 - 12.4 | 16 | 20 | 62 | 48 | 124.8 | 125.43 | 123.21 | 12 | DM120 - DM124 |
| TID125F16-5 | 12.5 - 12.9 | 16 | 20 | 64 | 48 | 127.3 | 127.93 | 125.71 | 12 | DM125 - DM129 |
| TID130F16-5 | 13 - 13.4 | 16 | 20 | 67 | 48 | 130.4 | 131.15 | 128.53 | 13 | DM130 - DM134 |
| TID135F16-5 | 13.5 - 13.9 | 16 | 20 | 71 | 48 | 132.9 | 133.65 | 131.03 | 13 | DM135 - DM139 |
| TID140F16-5 | 14 - 14.4 | 16 | 20 | 73 | 48 | 137.95 | 138.76 | 135.96 | 14 | DM140 - DM144 |
| TID145F16-5 | 14.5 - 14.9 | 16 | 20 | 76 | 48 | 140.45 | 141.26 | 138.46 | 14 | DM145 - DM149 |
| TID150F20-5 | 15 - 15.9 | 20 | 25 | 78 | 50 | 148.53 | 149.44 | 146.43 | 15 | DM150 - DM159 |
| TID160F20-5 | 16 - 16.9 | 20 | 25 | 83 | 50 | 155.1 | 156.07 | 152.84 | 16 | DM160 - DM169 |
| TID170F20-5 | 17 - 17.9 | 20 | 25 | 88 | 50 | 161.7 | 162.68 | 159.15 | 17 | DM170 - DM179 |
| TID180F25-5 | 18 - 18.9 | 25 | 32 | 93 | 56 | 174.3 | 175.35 | 171.45 | 18 | DM180 - DM189 |
| TID190F25-5 | 19 - 19.9 | 25 | 32 | 99 | 56 | 180.8 | 181.91 | 177.79 | 19 | DM190 - DM199 |
| TID200F25-5 | 20 - 20.9 | 25 | 32 | 104 | 56 | 187.6 | 188.82 | 185.32 | 20 | DM200 - DM209 |
| TID210F25-5 | 21 - 21.9 | 25 | 32 | 109 | 56 | 194.2 | 195.42 | 191.76 | 21 | DM210 - DM219 |
| TID220F25-5 | 22 - 22.9 | 25 | 32 | 114 | 56 | 200.8 | 202.08 | 198.1 | 22 | DM220 - DM229 |
| TID230F32-5 | 23 - 23.9 | 32 | 42 | 119 | 60 | 211.3 | 212.68 | 208.45 | 23 | DM230 - DM239 |
| TID240F32-5 | 24 - 24.9 | 32 | 42 | 124 | 60 | 217.9 | 219.31 | 214.91 | 24 | DM240 - DM249 |
| TID250F32-5 | 25 - 25.9 | 32 | 42 | 130 | 60 | 224.5 | 225.98 | 221.35 | 25 | DM250 - DM259 |
| ø6 - ø25.9 H Tool diameter | +0.05 / 0 ole diameter tolerance | - An overall l - For drill dia shorter whe other diame | ength (OAL) diff meters from ø8 n compared w ters than the a | ers based mm - ø9.9 ith a DMP bove. | on each hea mm, the dri head of the | d geometry. ll shoulder to sh equivalent sizes. | ank bottom The distanc | distance wh es are the sa | en a DMC dr me for the | ill head is mounted is 0.3 mm DMC and DMP drill heads in |
*Just for reference
