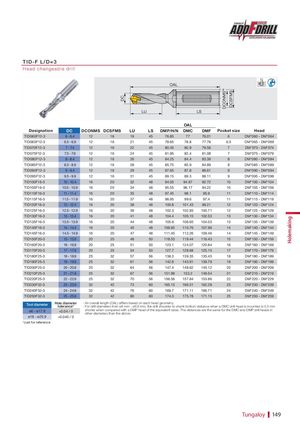

TID-F L/D=3
Head changeable drill
| DC | OAL | DCSFMS DCONMSh6 | ||||||||
| LU | LS | |||||||||
| OAL | ||||||||||
| Designation | DC | DCONMS | DCSFMS | LU | LS | DMP/H/N | DMC | DMF | Pocket size | Head |
| TID060F12-3 | 6 - 6.4 | 12 | 16 | 19 | 45 | 76.85 | 77 | 76.01 | 6 | DM060 - DM064 |
| TID065F12-3 | 6.5 - 6.9 | 12 | 16 | 21 | 45 | 78.65 | 78.8 | 77.78 | 6.5 | DM065 - DM069 |
| TID070F12-3 | 7 - 7.4 | 12 | 16 | 22 | 45 | 80.45 | 80.9 | 79.58 | 7 | DM070 - DM074 |
| TID075F12-3 | 7.5 - 7.9 | 12 | 16 | 24 | 45 | 81.95 | 82.4 | 81.08 | 7 | DM075 - DM079 |
| TID080F12-3 | 8 - 8.4 | 12 | 16 | 26 | 45 | 84.25 | 84.4 | 83.39 | 8 | DM080 - DM084 |
| TID085F12-3 | 8.5 - 8.9 | 12 | 16 | 28 | 45 | 85.75 | 85.9 | 84.89 | 8 | DM085 - DM089 |
| TID090F12-3 | 9 - 9.4 | 12 | 16 | 29 | 45 | 87.65 | 87.8 | 86.61 | 9 | DM090 - DM094 |
| TID095F12-3 | 9.5 - 9.9 | 12 | 16 | 31 | 45 | 89.15 | 89.3 | 88.11 | 9 | DM095 - DM099 |
| TID100F16-3 | 10 - 10.4 | 16 | 20 | 32 | 48 | 94.05 | 94.67 | 92.72 | 10 | DM100 - DM104 |
| TID105F16-3 | 10.5 - 10.9 | 16 | 20 | 34 | 48 | 95.55 | 96.17 | 94.22 | 10 | DM105 - DM109 |
| TID110F16-3 | 11 - 11.4 | 16 | 20 | 35 | 48 | 97.45 | 98.1 | 95.9 | 11 | DM110 - DM114 |
| TID115F16-3 | 11.5 - 11.9 | 16 | 20 | 37 | 48 | 98.95 | 99.6 | 97.4 | 11 | DM115 - DM119 |
| TID120F16-3 | 12 - 12.4 | 16 | 20 | 38 | 48 | 100.8 | 101.43 | 99.21 | 12 | DM120 - DM124 |
| TID125F16-3 | 12.5 - 12.9 | 16 | 20 | 39 | 48 | 102.3 | 102.93 | 100.71 | 12 | DM125 - DM129 |
| TID130F16-3 | 13 - 13.4 | 16 | 20 | 41 | 48 | 104.4 | 105.15 | 102.53 | 13 | DM130 - DM134 |
| TID135F16-3 | 13.5 - 13.9 | 16 | 20 | 44 | 48 | 105.9 | 106.65 | 104.03 | 13 | DM135 - DM139 |
| TID140F16-3 | 14 - 14.4 | 16 | 20 | 45 | 48 | 109.95 | 110.76 | 107.96 | 14 | DM140 - DM144 |
| TID145F16-3 | 14.5 - 14.9 | 16 | 20 | 47 | 48 | 111.45 | 112.26 | 109.46 | 14 | DM145 - DM149 |
| TID150F20-3 | 15 - 15.9 | 20 | 25 | 48 | 50 | 118.53 | 119.44 | 116.43 | 15 | DM150 - DM159 |
| TID160F20-3 | 16 - 16.9 | 20 | 25 | 51 | 50 | 123.1 | 124.07 | 120.84 | 16 | DM160 - DM169 |
| TID170F20-3 | 17 - 17.9 | 20 | 25 | 54 | 50 | 127.7 | 128.68 | 125.15 | 17 | DM170 - DM179 |
| TID180F25-3 | 18 - 18.9 | 25 | 32 | 57 | 56 | 138.3 | 139.35 | 135.45 | 18 | DM180 - DM189 |
| TID190F25-3 | 19 - 19.9 | 25 | 32 | 61 | 56 | 142.8 | 143.91 | 139.79 | 19 | DM190 - DM199 |
| TID200F25-3 | 20 - 20.9 | 25 | 32 | 64 | 56 | 147.4 | 148.62 | 145.12 | 20 | DM200 - DM209 |
| TID210F25-3 | 21 - 21.9 | 25 | 32 | 67 | 56 | 151.98 | 153.2 | 149.54 | 21 | DM210 - DM219 |
| TID220F25-3 | 22 - 22.9 | 25 | 32 | 70 | 56 | 156.56 | 157.84 | 153.86 | 22 | DM220 - DM229 |
| TID230F32-3 | 23 - 23.9 | 32 | 42 | 73 | 60 | 165.13 | 166.51 | 162.28 | 23 | DM230 - DM239 |
| TID240F32-3 | 24 - 24.9 | 32 | 42 | 76 | 60 | 169.7 | 171.11 | 166.71 | 24 | DM240 - DM249 |
| TID250F32-3 | 25 - 25.9 | 32 | 42 | 80 | 60 | 174.3 | 175.78 | 171.15 | 25 | DM250 - DM259 |
| ø6 - ø17.9 ø18 - ø25.9 H Tool diameter | +0.04 / 0 +0.045 / 0 ole diameter tolerance | - An overall l - For drill dia shorter wh other diam | ength (OAL) differs meters from ø8 mm en compared with eters than the abov | based - ø9.9 a DMP e. | on each hea mm, the dr head of the | d geometry. ill shoulder to sh equivalent sizes. | ank bottom The distan | distance wh ces are the s | en a DMC drill hea ame for the DMC a | d is mounted is 0.3 mm nd DMP drill heads in |
*Just for reference
