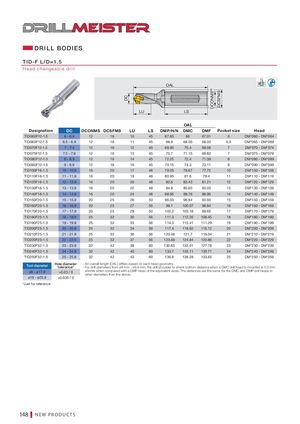

DRILL BODIES
TID-F L/D=1.5
Head changeable drill
| OAL | |||||||||
| DC | DCSFMS DCONMSh6 | DCONMSh6 | |||||||
| LU | LS | ||||||||
| OAL | |||||||||
| Designation | DC | DCONMS | DCSFMS | LU | LS | DMP/H/N | DMC | DMF Pocket siz | Head e |
| TID060F12-1.5 | 6 - 6.4 | 12 | 16 | 10 | 45 | 67.85 | 68 | 67.01 6 | DM060 - DM064 |
| TID065F12-1.5 | 6.5 - 6.9 | 12 | 16 | 11 | 45 | 68.9 | 69.05 | 68.03 6.5 | DM065 - DM069 |
| TID070F12-1.5 | 7 - 7.4 | 12 | 16 | 12 | 45 | 69.95 | 70.4 | 69.08 7 | DM070 - DM074 |
| TID075F12-1.5 | 7.5 - 7.9 | 12 | 16 | 13 | 45 | 70.7 | 71.15 | 69.83 7 | DM075 - DM079 |
| TID080F12-1.5 | 8 - 8.9 | 12 | 16 | 14 | 45 | 72.25 | 72.4 | 71.39 8 | DM080 - DM089 |
| TID090F12-1.5 | 9 - 9.9 | 12 | 16 | 16 | 45 | 74.15 | 74.3 | 73.11 9 | DM090 - DM099 |
| TID100F16-1.5 | 10 - 10.9 | 16 | 20 | 17 | 48 | 79.05 | 79.67 | 77.72 10 | DM100 - DM109 |
| TID110F16-1.5 | 11 - 11.9 | 16 | 20 | 19 | 48 | 80.95 | 81.6 | 79.4 11 | DM110 - DM119 |
| TID120F16-1.5 | 12 - 12.9 | 16 | 20 | 20 | 48 | 82.8 | 83.43 | 81.21 12 | DM120 - DM129 |
| TID130F16-1.5 | 13 - 13.9 | 16 | 20 | 22 | 48 | 84.9 | 85.65 | 83.03 13 | DM130 - DM139 |
| TID140F16-1.5 | 14 - 14.9 | 16 | 20 | 24 | 48 | 88.95 | 89.76 | 86.96 14 | DM140 - DM149 |
| TID150F20-1.5 | 15 - 15.9 | 20 | 25 | 26 | 50 | 96.03 | 96.94 | 93.93 15 | DM150 - DM159 |
| TID160F20-1.5 | 16 - 16.9 | 20 | 25 | 27 | 50 | 99.1 | 100.07 | 96.84 16 | DM160 - DM169 |
| TID170F20-1.5 | 17 - 17.9 | 20 | 25 | 29 | 50 | 102.2 | 103.18 | 99.65 17 | DM170 - DM179 |
| TID180F25-1.5 | 18 - 18.9 | 25 | 32 | 30 | 56 | 111.3 | 112.35 | 108.45 18 | DM180 - DM189 |
| TID190F25-1.5 | 19 - 19.9 | 25 | 32 | 33 | 56 | 114.3 | 115.41 | 111.29 19 | DM190 - DM199 |
| TID200F25-1.5 | 20 - 20.9 | 25 | 32 | 34 | 56 | 117.4 | 118.62 | 115.12 20 | DM200 - DM209 |
| TID210F25-1.5 | 21 - 21.9 | 25 | 32 | 36 | 56 | 120.48 | 121.7 | 118.04 21 | DM210 - DM219 |
| TID220F25-1.5 | 22 - 22.9 | 25 | 32 | 37 | 56 | 123.56 | 124.84 | 120.86 22 | DM220 - DM229 |
| TID230F32-1.5 | 23 - 23.9 | 32 | 42 | 39 | 60 | 130.63 | 132.01 | 127.78 23 | DM230 - DM239 |
| TID240F32-1.5 | 24 - 24.9 | 32 | 42 | 40 | 60 | 133.7 | 135.11 | 130.71 24 | DM240 - DM249 |
| TID250F32-1.5 | 25 - 25.9 | 32 | 42 | 43 | 60 | 136.8 | 138.28 | 133.65 25 | DM250 - DM259 |
| ø6 - ø17.9 ø18 - ø25.9 H Tool diameter | +0.03 / 0 +0.035 / 0 ole diameter tolerance | - An overall l - For drill dia shorter wh other diam | ength (OAL) diff meters from ø8 en compared w eters than the a | ers base mm - ø9 ith a DM bove. | d on each hea .9 mm, the dr P head of the | d geometry. ill shoulder to sh equivalent sizes. | ank bottom The distanc | distance when a DMC drill h es are the same for the DM | ead is mounted is 0.3 mm C and DMP drill heads in |
*Just for reference
