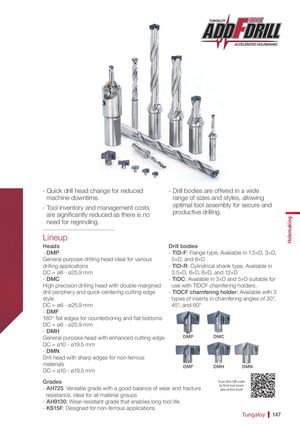

- Quick drill head change for reduced- Drill bodies are offered in a wide
machine downtime.range of sizes and styles, allowing

optimal tool assembly for secure and - Tool inventory and management costs productive drilling. are significantly reduced as there is no

need for regrinding.

Lineup

HeadsDrill bodies
- DMP- TID-F: Flange type, Available in 1.5×D, 3×D,
General purpose drilling head ideal for various5×D, and 8×D
drilling applications- TID-R: Cylindrical shank type, Available in
DC = ø6 - ø25.9 mm3.5×D, 6×D, 8×D, and 12×D
- DMC- TIDC: Available in 3×D and 5×D suitable for
High precision drilling head with double-margineduse with TIDCF chamfering holders.
drill periphery and quick centering cutting edge- TIDCF chamfering holder: Available with 3
styletypes of inserts in chamfering angles of 30°,
DC = ø6 - ø25.9 mm45°, and 60°
- DMF
180° flat edges for counterboring and flat bottoms
DC = ø6 - ø25.9 mm
- DMH
General purpose head with enhanced cutting edgeDMC DMP
DC = ø10 - ø19.5 mm
- DMN
Drill head with sharp edges for non-ferrous
materialsDMN DMH DMF

DC = ø10 - ø19.5 mm Grades Scan this QR code AH725 to fi nd out more

- : Versatile grade with a good balance of wear and fracture resistance, ideal for all material groups - AH9130: Wear-resistant grade that enables long tool life - KS15F: Designed for non-ferrous applications
