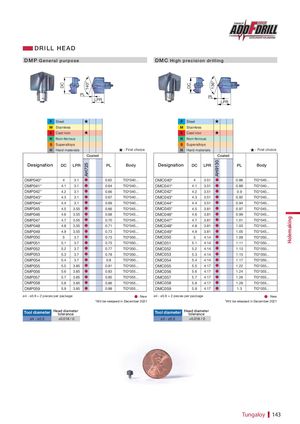

DRILL HEAD
DMP General purpose DMC High precision drilling
PL
LPR
PL
LPR
| P | Steel | P | Steel |
| M | Stainless | M | Stainless |
| K | Cast iron | K | Cast iron |
| N | Non-ferrous | N | Non-ferrous |
| S | Superalloys | S | Superalloys |
| H | Hard materials | : First choice H | : First choice Hard materials |
| Coated | Coated |
Designation DC LPR PL Body Designation DC LPR PL Body
| DMP040* | 4 | 3.1 | 0.62 | TID*040... | DMC040* | 4 | 3.51 | 0.86 | TID*040... |
| DMP041* | 4.1 | 3.1 | 0.64 | TID*040... | DMC041* | 4.1 | 3.51 | 0.88 | TID*040... |
| DMP042* | 4.2 | 3.1 | 0.66 | TID*040... | DMC042* | 4.2 | 3.51 | 0.9 | TID*040... |
| DMP043* | 4.3 | 3.1 | 0.67 | TID*040... | DMC043* | 4.3 | 3.51 | 0.92 | TID*040... |
| DMP044* | 4.4 | 3.1 | 0.69 | TID*040... | DMC044* | 4.4 | 3.51 | 0.94 | TID*040... |
| DMP045 | 4.5 | 3.55 | 0.66 | TID*045... | DMC045* | 4.5 | 3.81 | 0.97 | TID*045... |
| DMP046 | 4.6 | 3.55 | 0.68 | TID*045... | DMC046* | 4.6 | 3.81 | 0.99 | TID*045... |
| DMP047 | 4.7 | 3.55 | 0.70 | TID*045... | DMC047* | 4.7 | 3.81 | 1.01 | TID*045... |
| DMP048 | 4.8 | 3.55 | 0.71 | TID*045... | DMC048* | 4.8 | 3.81 | 1.03 | TID*045... |
| DMP049 | 4.9 | 3.55 | 0.73 | TID*045... | DMC049* | 4.9 | 3.81 | 1.05 | TID*045... |
| DMP050 | 5 | 3.7 | 0.73 | TID*050... | DMC050 | 5 | 4.14 | 1.09 | TID*050... |
| DMP051 | 5.1 | 3.7 | 0.75 | TID*050... | DMC051 | 5.1 | 4.14 | 1.11 | TID*050... |
| DMP052 | 5.2 | 3.7 | 0.77 | TID*050... | DMC052 | 5.2 | 4.14 | 1.13 | TID*050... |
| DMP053 | 5.3 | 3.7 | 0.78 | TID*050... | DMC053 | 5.3 | 4.14 | 1.15 | TID*050... |
| DMP054 | 5.4 | 3.7 | 0.8 | TID*050... | DMC054 | 5.4 | 4.14 | 1.17 | TID*050... |
| DMP055 | 5.5 | 3.85 | 0.81 | TID*055... | DMC055 | 5.5 | 4.17 | 1.22 | TID*055... |
| DMP056 | 5.6 | 3.85 | 0.83 | TID*055... | DMC056 | 5.6 | 4.17 | 1.24 | TID*055... |
| DMP057 | 5.7 | 3.85 | 0.85 | TID*055... | DMC057 | 5.7 | 4.17 | 1.26 | TID*055... |
| DMP058 | 5.8 | 3.85 | 0.86 | TID*055... | DMC058 | 5.8 | 4.17 | 1.28 | TID*055... |
| DMP059 | 5.9 | 3.85 | 0.88 | TID*055... | DMC059 | 5.9 | 4.17 | 1.3 | TID*055... |
| ø4 - ø5.9 = 2 pieces per package | : New ø4 - ø5.9 = 2 pieces per package | : New | |||||||
| *Will be released in December 2021 | *Will be released in December 2021 | ||||||||
| Tool diameter | Head diameter | Tool diameter | Head diameter | ||||||
| tolerance | tolerance | ||||||||
| +0.018 / 0 ø4 - ø5.9 | +0.018 / 0 ø4 - ø5.9 |
