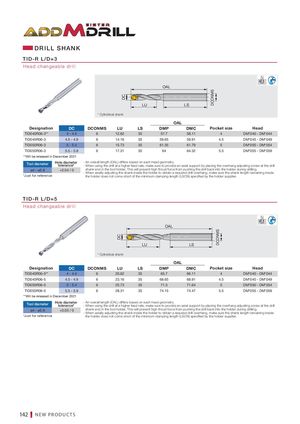

DRILL SHANK
TID-R L/D=3
Head changeable drill
OAL
LU LS
- Cylindrical shank
| OA | L | |||||||
| Designation | DC | DCONMS | LU | LS | DMP | DMC | Pocket size | Head |
| TID040R06-3 | 4 - 4.4 | 6 | 12.62 | 35 | 57.7 | 58.11 | 4 | DM040 - DM044 |
| TID045R06-3 | 4.5 - 4.9 | 6 | 14.16 | 35 | 59.65 | 59.91 | 4.5 | DM045 - DM049 |
| TID050R06-3 | 5 - 5.4 | 6 | 15.73 | 35 | 61.35 | 61.79 | 5 | DM050 - DM054 |
| TID055R06-3 | 5.5 - 5.9 | 6 | 17.31 | 35 | 64 | 64.32 | 5.5 | DM055 - DM059 |
| Will be released in D | ecember 2021 | |||||||
| ø4 - ø5.9 Tool diameter | +0.04 / 0 Hole diameter tolerance | - An overall length - When using the d shank end in the | (OAL) differs b rill at a higher tool holder. Th | ased on each feed rate, mak is will prevent | head geometry. e sure to provide a high thrust force fro | n axial support b m pushing the d | y placing the overhang rill back into the holder | adjusting screw at the drill during drilling. |
- When axially adjusting the shank inside the holder to obtain a required drill overhang, make sure the shank length remaining inside *Just for reference the holder does not come short of the minimum clamping length (LSCN) specified by the holder supplier.
TID-R L/D=5
Head changeable drill
| DC Cylindrical shank | LU | OAL LS | DCONMS | ||||
| OAL | |||||||
| Designation | DC | DCONMS LU | LS | DMP DMC | Pocket size | Head | |
| TID040R06-5 | 4 - 4.4 | 6 20.62 | 35 | 65.7 66.11 | 4 | DM040 - DM044 | |
| TID045R06-5 | 4.5 - 4.9 | 6 23.16 | 35 | 68.65 68.91 | 4.5 | DM045 - DM049 | |
| TID050R06-5 | 5 - 5.4 | 6 25.73 | 35 | 71.3 71.64 | 5 | DM050 - DM054 | |
| TID055R06-5 | 5.5 - 5.9 | 6 28.31 | 35 | 74.15 74.47 | 5.5 | DM055 - DM059 | |
| Will be released in De | cember 2021 | ||||||
| ø4 - ø5.9 H Tool diameter | +0.05 / 0 ole diameter tolerance | - An overall length (OAL) differs - When using the drill at a high shank end in the tool holder. | b er Th | ased on each feed rate, ma is will prevent | head geometry. ke sure to provide an axial support b high thrust force from pushing the d | y placing the overha rill back into the hold | ng adjusting screw at the drill er during drilling. |
- When axially adjusting the shank inside the holder to obtain a required drill overhang, make sure the shank length remaining inside *Just for reference the holder does not come short of the minimum clamping length (LSCN) specified by the holder supplier.
