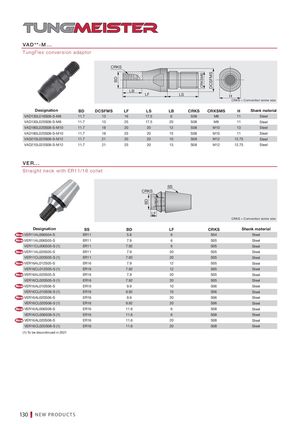

VA D * * - M . . .
TungFlex conversion adaptor
| BD CRKS LB | LF | CRKSMS LS | DCSFMS | H CRKS = C | onnection screw size | |||
| Designation | BD | DCSFMS LF | LS | LB | CRKS | CRKS | MS H | Shank material |
| VAD130L016S08-S-M8 | 11.7 | 13 16 | 17.5 | 6 | S08 | M8 | 11 | Steel |
| VAD130L025S08-S-M8 | 11.7 | 13 25 | 17.5 | 20 | S08 | M8 | 11 | Steel |
| VAD180L020S08-S-M10 | 11.7 | 18 20 | 20 | 12 | S08 | M10 | 13 | Steel |
| VAD180L025S08-S-M10 | 11.7 | 18 25 | 20 | 15 | S08 | M10 | 11 | Steel |
| VAD210L020S08-S-M12 | 11.7 | 21 20 | 20 | 10 | S08 | M12 | 12.75 | Steel |
| VAD210L025S08-S-M12 | 11.7 | 21 25 | 20 | 13 | S08 | M12 | 12.75 | Steel |
V E R . . .
Straight neck with E R 1 1 / 1 6 collet
SS
CRKS
LF
CRKS = Connection screw size
| Designation | SS | BD | LF | CRKS | Shank material | |
| New | VER11AL006S04-S | ER11 | 5.8 | 6 | S04 | Steel |
| New | VER11AL006S05-S | ER11 | 7.9 | 6 | S05 | Steel |
| VER11CL006S05-S (1) | ER11 | 7.92 | 6 | S05 | Steel | |
| New | VER11AL020S05-S | ER11 | 7.9 | 20 | S05 | Steel |
| VER11CL020S05-S (1) | ER11 | 7.92 | 20 | S05 | Steel | |
| New | VER16AL012S05-S | ER16 | 7.9 | 12 | S05 | Steel |
| VER16CL012S05-S (1) | ER16 | 7.92 | 12 | S05 | Steel | |
| New | VER16AL020S05-S | ER16 | 7.9 | 20 | S05 | Steel |
| VER16CL020S05-S (1) | ER16 | 7.92 | 20 | S05 | Steel | |
| New | VER16AL010S06-S | ER16 | 9.9 | 10 | S06 | Steel |
| VER16CL010S06-S (1) | ER16 | 9.92 | 10 | S06 | Steel | |
| New | VER16AL020S06-S | ER16 | 9.9 | 20 | S06 | Steel |
| VER16CL020S06-S (1) | ER16 | 9.92 | 20 | S06 | Steel | |
| New | VER16AL006S08-S | ER16 | 11.6 | 6 | S08 | Steel |
| VER16CL006S08-S (1) | ER16 | 11.6 | 6 | S08 | Steel | |
| New | VER16AL020S08-S | ER16 | 11.6 | 20 | S08 | Steel |
| VER16CL020S08-S (1) | ER16 | 11.6 | 20 | S08 | Steel |
(1) To be discontinued in 2021
