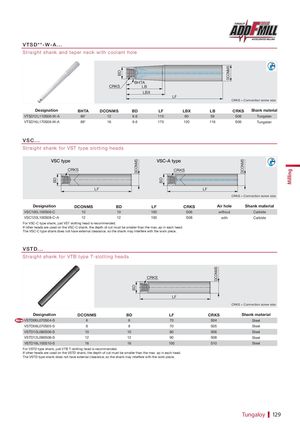

BD BD DCONMSBD BD DCONMS DCONMS DCONMS Milling VTSD**-W-A... Straight shank and taper neck with coolant hole BHTA CRKS LB LBX LF CRKS = Connection screw size Designation BHTA DCONMS BD LF LBX LB CRKS Shank material VTSD12L110S06-W-A 89° 12 9.6 110 60 59 S06 Tungsten VTSD16L170S06-W-A 89° 16 9.6 170 120 116 S06 Tungsten VSC... Straight shank for VST type slotting heads VSC type VSC-A type CRKS CRKS LF LF CRKS = Connection screw size Designation DCONMS BD LF CRKS Air hole Shank material VSC100L100S06-C 10 10 100 S06 without Carbide VSC120L100S08-C-A 12 12 100 S08 with Carbide For VSC-C type shank, just VST slotting head is recommended. If other heads are used on the VSC-C shank, the depth of cut must be smaller than the max. ap in each head. The VSC-C type shank does not have external clearance, so the shank may interfere with the work piece. VSTD... Straight shank for VTB type T-slotting heads CRKS LF CRKS = Connection screw size Designation DCONMS BD LF CRKS Shank material New VSTD06L070S04-S 6 6 70 S04 Steel VSTD08L070S05-S 8 8 70 S05 Steel VSTD10L080S06-S 10 10 80 S06 Steel VSTD12L090S08-S 12 12 90 S08 Steel VSTD16L100S10-S 16 16 100 S10 Steel For VSTD type shank, just VTB T-slotting head is recommended. If other heads are used on the VSTD shank, the depth of cut must be smaller than the max. ap in each head. The VSTD type shank does not have external clearance, so the shank may interfere with the work piece. Tungaloy 129
