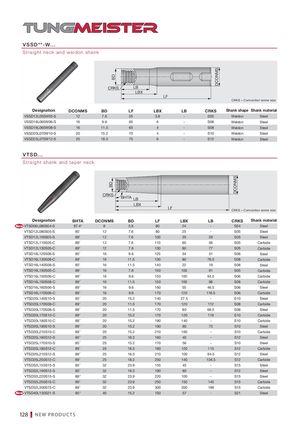

V S S D * * - W. . .
Straight neck and weldon shank
| CRKS BD | LBX LB | LF | DCONMS | CRKS = Conn | ection screw size | ||
| DCONMS Designation | BD | LF | LBX | LB | CRKS | Shank shape | Shank material |
| VSSD12L055W05-S 12 | 7.6 | 55 | 3.8 | - | S05 | Weldon | Steel |
| VSSD16L065W06-S 16 | 9.6 | 65 | 6 | - | S06 | Weldon | Steel |
| VSSD16L065W08-S 16 | 11.5 | 65 | 4 | - | S08 | Weldon | Steel |
| VSSD20L070W10-S 20 | 15.2 | 70 | 4 | - | S10 | Weldon | Steel |
| VSSD25L075W12-S 25 | 18.3 | 75 | 6 | - | S12 | Weldon | Steel |
V TS D. . .
Straight shank and taper neck
| CRKS BD BHTA LBX LB | LF | DCONMS CRKS = C | onnection screw size | ||||
| Designation | BHTA | DCONMS BD | LF | LBX | LB | CRKS | Shank material |
| VTSD08L080S04-S New | 87.4° | 8 5.8 | 80 | 24 | - | S04 | Steel |
| VTSD12L080S05-S | 85° | 12 7.6 | 80 | 25 | - | S05 | Steel |
| VTSD12L100S05-S | 89° | 12 7.6 | 100 | 35 | 29 | S05 | Steel |
| VTSD12L110S05-C | 89° | 12 7.6 | 110 | 60 | 56 | S05 | Carbide |
| VTSD12L130S05-C | 89° | 12 7.6 | 130 | 80 | 77 | S05 | Carbide |
| VTSD16L125S06-S | 85° | 16 9.6 | 125 | 34 | 31 | S06 | Steel |
| VTSD16L130S08-C | 89° | 16 11.5 | 130 | 80 | 76.5 | S08 | Carbide |
| VTSD16L140S08-S | 85° | 16 11.5 | 140 | 22 | 19 | S08 | Steel |
| VTSD16L150S05-C | 89° | 16 7.6 | 150 | 100 | 91 | S05 | Carbide |
| VTSD16L150S06-C | 89° | 16 9.6 | 150 | 100 | 94.5 | S06 | Carbide |
| VTSD16L150S08-C | 89° | 16 11.5 | 150 | 100 | 98 | S08 | Carbide |
| VTSD16L160S06-S | 89° | 16 9.6 | 160 | 55 | 46.5 | S06 | Steel |
| VTSD16L170S06-C | 89° | 16 9.6 | 170 | 120 | 116.5 | S06 | Carbide |
| VTSD20L140S10-S | 85° | 20 15.2 | 140 | 27.5 | - | S10 | Steel |
| VTSD20L170S08-C | 89° | 20 11.5 | 170 | 120 | 112 | S08 | Carbide |
| VTSD20L170S08-S | 89° | 20 11.5 | 170 | 80 | 69.5 | S08 | Steel |
| VTSD20L170S10-C | 89° | 20 15.2 | 170 | 120 | 119 | S10 | Carbide |
| VTSD20L190S10-C | 89° | 20 15.2 | 190 | 140 | - | S10 | Carbide |
| VTSD20L190S10-S | 89° | 20 15.2 | 190 | 80 | 73 | S10 | Steel |
| VTSD20L210S10-C | 89° | 20 15.2 | 210 | 160 | - | S10 | Carbide |
| VTSD25L160S12-S | 85° | 25 18.3 | 160 | 40 | - | S12 | Steel |
| VTSD25L170S10-S | 85° | 25 15.2 | 170 | 56 | - | S10 | Steel |
| VTSD25L180S12-C | 89° | 25 18.3 | 180 | 120 | 115 | S12 | Carbide |
| VTSD25L210S12-S | 89° | 25 18.3 | 210 | 100 | 94.5 | S12 | Steel |
| VTSD25L250S12-C | 89° | 25 18.3 | 250 | 140 | 136.5 | S12 | Carbide |
| VTSD32L155S15-S | 85° | 32 23.9 | 155 | 45 | - | S15 | Steel |
| VTSD32L190S12-S | 85° | 32 18.3 | 190 | 80 | - | S12 | Steel |
| VTSD32L220S15-S | 88° | 32 23.9 | 220 | 100 | - | S15 | Steel |
| VTSD32L250S15-C | 89° | 32 23.9 | 250 | 150 | 145 | S15 | Carbide |
| VTSD32L300S15-C | 89° | 32 23.9 | 300 | 200 | 198 | S15 | Carbide |
| VTSD40L150S21-S New | 85° | 40 15.2 | 150 | 57 | - | S21 | Steel |
