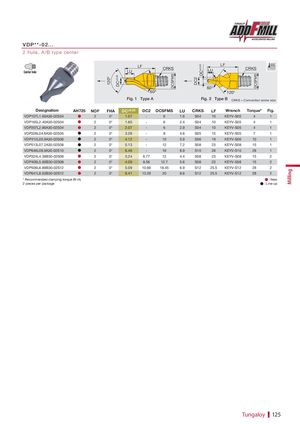

120º DC±0.02 DCSFMS DC2 DC±0.02 DCSFMS Milling VDP**-02... 2 flute, A/B type center Center hole LFLU CRKS LFLU CRKS 60° 60º 120° Fig. 1 Type A Fig. 2 Type B CRKS = Connection screw size Designation AH725 NOF FHA DC±0.02 DC2 DCSFMS LU CRKS LF Wrench Torque* Fig. VDP107L1.60A30-02S04
2 0° 1.07 - 6 1.6 S04 10 KEYV-S05 4 1 VDP165L2.40A30-02S04
2 0° 1.65 - 6 2.4 S04 10 KEYV-S05 4 1 VDP207L2.90A30-02S04
2 0° 2.07 - 6 2.9 S04 10 KEYV-S05 4 1 VDP328L04.6A30-02S05
2 0° 3.28 - 8 4.6 S05 15 KEYV-S05 7 1 VDP412L05.9A30-02S06
2 0° 4.12 - 10 5.9 S06 19 KEYV-S06 10 1 VDP513L07.2A30-02S08
2 0° 5.13 - 12 7.2 S08 23 KEYV-S08 15 1 VDP646L08.9A30-02S10
2 0° 6.46 - 16 8.9 S10 28 KEYV-S10 28 1 VDP324L4.38B30-02S08
2 0° 3.24 6.77 12 4.4 S08 23 KEYV-S08 15 2 VDP409L5.60B30-02S08
2 0° 4.09 8.56 12.7 5.6 S08 23 KEYV-S08 15 2 VDP509L6.89B30-02S12
2 0° 5.09 10.69 18.45 6.9 S12 25.5 KEYV-S12 28 2 VDP641L8.63B30-02S12
2 0° 6.41 13.29 20 8.6 S12 25.5 KEYV-S12 28 2 * Recommended clamping torque (N·m)
: New 2 pieces per package
: Line-up Tungaloy 125
