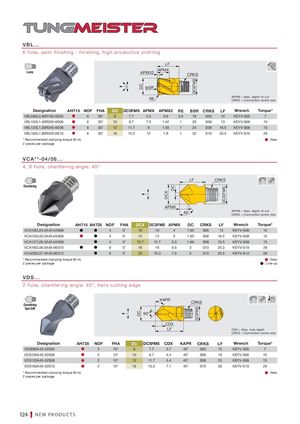

V B L . . .
6 f l u t e , semi finishing - f i n i s h i n g , high productive profiling
| Lens | RE APMX2 BSR DC | APMX LF | DCSFMS CRKS | APMX = Max. d CRKS = Conne | epth of cut ction screw | size | ||||||||
| Designation | AH715 | NOF | FHA | DC | DCSFMS | APMX | APMX2 | RE | BSR | CRKS | LF | Wrench | Torqu | e |
| VBL080L0.90R160-6S05 | � | 6 | 30° | 8 | 7.7 | 5.5 | 0.9 | 0.5 | 16 | S05 | 10 | KEYV-S05 | 7 | |
| VBL100L1.40R200-6S06 | � | 6 | 30° | 10 | 9.7 | 7.5 | 1.42 | 1 | 20 | S06 | 13 | KEYV-S06 | 10 | |
| VBL120L1.50R240-6S08 | � | 6 | 30° | 12 | 11.7 | 9 | 1.55 | 1 | 24 | S08 | 16.5 | KEYV-S08 | 15 | |
| VBL160L1.80R320-6S10 | � | 6 | 30° | 16 | 15.3 | 12 | 1.8 | 1 | 32 | S10 | 20.5 | KEYV-S10 | 28 | |
| Recommended clamping to | rque (N·m) | � | : New |
2 pieces per package
V CA - 0 4 / 0 6 . . .
4 , 6 f l u t e , chamfering a n g l e : 4 5 °
| Chamfering | DCX DC APMX | LF 45° | CRKS DCSFMS | APMX = Max. CRKS = Conne | depth of cut ction screw size | |||||||
| Designation | AH715 | AH725 | NOF | FHA | DCX | DCSFMS | APMX | DC | CRKS | LF | Wrench | Torque |
| VCA100L04.0A45-04S06 | � | � | 4 | 0° | 10 | 10 | 4 | 1.95 | S06 | 13 | KEYV-S06 | 10 |
| VCA120L05.0A45-04S08 | � | � | 4 | 0° | 12 | 12 | 5 | 1.95 | S08 | 16.5 | KEYV-S08 | 15 |
| VCA127L05.3A45-04S08 | � | 4 | 0° | 12.7 | 12.7 | 5.3 | 1.98 | S08 | 16.5 | KEYV-S08 | 15 | |
| VCA160L06.5A45-06S10 | � | � | 6 | 0° | 16 | 16 | 6.5 | 3 | S10 | 20.3 | KEYV-S10 | 28 |
| VCA200L07.5A45-06S12 | � | 6 | 0° | 20 | 18.3 | 7.5 | 5 | S12 | 25.5 | KEYV-S12 | 28 | |
| Recommended clamping torqu pieces per package | e (N·m) | �: New �: Line-up |
V D S . . .
2 f l u te, chamfering a n g l e: 4 5° , helix cutting edge
| Chamfering Spot drill | DC | 90° | LF CDX KAPR | C | RKS DCSFMS | CDX = Max. ho CRKS = Conne | le depth ction screw size | |||
| AH725 Designation | NOF | FHA | DC | DCSFMS | CDX | KAPR | CRKS | LF | Wrench | Torque |
| VDS080A45-02S05 � | 2 | 10° | 8 | 7.7 | 3.7 | 45° | S05 | 15 | KEYV-S05 | 7 |
| VDS100A45-02S06 � | 2 | 10° | 10 | 9.7 | 4.4 | 45° | S06 | 19 | KEYV-S06 | 10 |
| VDS120A45-02S08 � | 2 | 10° | 12 | 11.7 | 5.4 | 45° | S08 | 23 | KEYV-S08 | 15 |
| VDS160A45-02S10 � | 2 | 10° | 16 | 15.3 | 7.1 | 45° | S10 | 28 | KEYV-S10 | 28 |
| Recommended clamping torque (N·m) | �: New |
2 pieces per package
