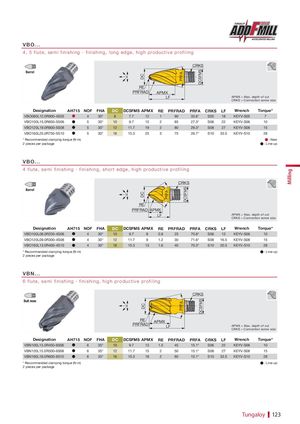

Брошюра Tungaloy новая продукция - страница 123
Навигация
Каталог Tungaloy глубокое сверление 2
Каталог Tungaloy глубокое сверление 1
Каталог Tungaloy зубофрезерование
Общий каталог Tungaloy 2020 - 2021
Каталог Tungaloy инструмент для автоматов швейцарского типа
V B O. . .
4 , 5 f l u t e , semi finishing - f i n i s h i n g , long e d g e , high productive profiling
CRKS
Barrel
RE
PRFRAD APMX
LF APMX = Max. depth of cut CRKS = Connection screw size
| Designation | AH715 NOF | FHA | DC | DCSFMS APMX | RE | PRFRAD | PRFA | CRKS | LF | Wrench | Torque* | ||||||
| VBO080L12.0R900-4S05 | 4 | 30° | 8 | 7.7 | 12 | 1 | 90 | 33.6° | S05 | 18 | KEYV-S05 | 7 | |||||
| VBO100L15.0R850-5S06 | 5 | 30° | 10 | 9.7 | 15 | 2 | 85 | 27.3° | S06 | 22 | KEYV-S06 | 10 | |||||
| VBO120L19.0R800-5S08 | 5 | 30° | 12 | 11.7 | 19 | 2 | 80 | 29.3° | S08 | 27 | KEYV-S08 | 15 | |||||
| VBO160L25.0R750-5S10 | 5 | 30° | 16 | 15.3 | 25 | 3 | 75 | 26.7° | S10 | 33.5 | KEYV-S10 | 28 |
- Recommended clamping torque (N·m) : New
2 pieces per package : Line-up
V B O. . .
4 f l u t e , semi finishing - f i n i s h i n g , short e d g e , high productive profiling
CRKS
Barrel
RE
PRFRAD APMX
LF APMX = Max. depth of cut CRKS = Connection screw size
| Designation | AH715 NOF | FHA | DC | DCSFMS APMX | RE | PRFRAD | PRFA | CRKS | LF | Wrench | Torque* | ||||||
| VBO100L08.0R250-4S06 | 4 | 30° | 10 | 9.7 | 8 | 0.8 | 25 | 70.8° | S06 | 13 | KEYV-S06 | 10 | |||||
| VBO120L09.0R300-4S08 | 4 | 30° | 12 | 11.7 | 9 | 1.2 | 30 | 71.6° | S08 | 16.5 | KEYV-S08 | 15 | |||||
| VBO160L13.0R400-4S10 | 4 | 30° | 16 | 15.3 | 13 | 1.6 | 40 | 70.3° | S10 | 20.5 | KEYV-S10 | 28 |
- Recommended clamping torque (N·m) : Line-up
2 pieces per package
V B N . . .
6 f l u t e , semi finishing - f i n i s h i n g , high productive profiling
CRKS
Bull nose
RE APMX
PRFRAD
LF APMX = Max. depth of cut CRKS = Connection screw size
| Designation | AH715 NOF | FHA | DC | DCSFMS APMX | RE | PRFRAD | PRFA | CRKS | LF | Wrench | Torque* | ||||||
| VBN100L13.0R450-6S06 | 6 | 35° | 10 | 9.7 | 13 | 1.5 | 45 | 15.1° | S06 | 22 | KEYV-S06 | 10 | |||||
| VBN120L15.0R500-6S08 | 6 | 35° | 12 | 11.7 | 15 | 2 | 50 | 15.1° | S08 | 27 | KEYV-S08 | 15 | |||||
| VBN160L18.0R600-6S10 | 6 | 35° | 16 | 15.3 | 18 | 2 | 60 | 15.1° | S10 | 33.5 | KEYV-S10 | 28 |
- Recommended clamping torque (N·m) : Line-up
2 pieces per package
