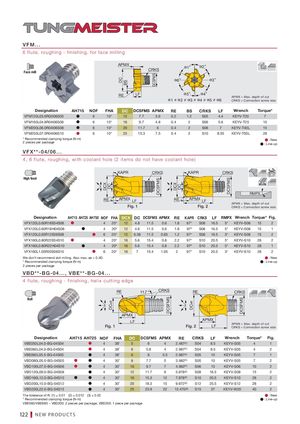

V F M . . .
6 f l u te, roughing - f i n i s h i n g, for face milling
APMX ƴ
ƴ1° 2°
CRKS
Face mill
ƴ6° ƴ3°
| RE | LF | ƴ5° | ƴ4° | ||
| APMX = Max. depth of cut | |||||
| ƴ1 = ƴ2 = ƴ3 = ƴ4 = ƴ5 = ƴ6 | CRKS = Connection screw size |
| Designation | AH715 | NOF | FHA | DC | DCSFMS APMX | RE | BS | CRKS | LF | Wrench | Torque* | ||||
| VFM120L03.6R02I06S05 | 6 | 10° | 12 | 7.7 | 3.6 | 0.2 | 1.2 | S05 | 4.4 | KEYV-T20 | 7 | ||||
| VFM160L04.8R04I06S06 | 6 | 10° | 16 | 9.7 | 4.8 | 0.4 | 2 | S06 | 5.6 | KEYV-T25 | 10 | ||||
| VFM200L06.0R04I06S08 | 6 | 10° | 20 | 11.7 | 6 | 0.4 | 2 | S08 | 7 | KEYV-T40L | 15 | ||||
| VFM250L07.5R04I06S10 | 6 | 10° | 25 | 15.3 | 7.5 | 0.4 | 2 | S10 | 8.55 | KEYV-T50L | 28 |
- Recommended clamping torque (N·m) : New
2 pieces per package : Line-up V F X - 0 4 / 0 6 . . .
4 , 6 f l u t e , r o u g h i n g , with coolant hole ( 2 items d o not have coolant h o l e )
| KAPR | CRKS CRKS KAPR |
| High feed | |
| R R | |
| RMPX | |
| RE APMX | RE APMX |
| LF LF | |
| APMX = Max. depth of cut |
Fig. 1 Fig. 2 CRKS = Connection screw size
| AH715 AH725 AH750 NOF FHA Designation | DCX | DC DCSFMS APMX | RE | KAPR CRKS | LF | RMPX | Wrench Torque* Fig. | |||||||
| VFX120L0.60R18E04S08 | 4 | 20° | 12 | 4.8 | 11.5 | 0.6 | 1.8 | 97° | S08 | 16.5 | 5° | KEYV-S08 | 15 | 2 |
| VFX120L0.60R18H04S08 | 4 | 20º | 12 | 4.8 | 11.5 | 0.6 | 1.8 | 97º | S08 | 16.5 | 5° | KEYV-S08 | 15 | 1 |
| VFX120L0.65R12E06S08 | 6 | 20° | 12 | 6.38 | 11.5 | 0.65 | 1.2 | 97° | S08 | 16.5 | 3° | KEYV-S08 | 15 | 2 |
| VFX160L0.80R22E04S10 | 4 | 20° | 16 | 5.6 | 15.4 | 0.8 | 2.2 | 97° | S10 | 20.5 | 5° | KEYV-S10 | 28 | 2 |
| VFX160L0.80R22H04S10 | 4 | 20º | 16 | 5.6 | 15.4 | 0.8 | 2.2 | 97º | S10 | 20.5 | 5° | KEYV-S10 | 28 | 1 |
| VFX160L1.05R20E06S10 | 6 | 20° | 16 | 7 | 15.4 | 1.05 | 2 | 97° | S10 | 20.5 | 3° | KEYV-S10 | 28 | 2 |
We don’t recommend slot milling. Also max. ae < 0.4D. : New
- Recommended clamping torque (N·m) : Line-up
2 pieces per package V B D - B G - 0 4 . . . , V B E - B G - 0 4 . . .
4 f l u t e , roughing - f i n i s h i n g , helix cutting edge
RE 11.7 ° CRKS RE
CRKS Ball
APMX
APMX
LF
LF APMX = Max. depth of cut
Fig. 1 Fig. 2 CRKS = Connection screw size
| AH715 AH725 NOF Designation | FHA | DC | DCSFMS APMX | RE | CRKS | LF | Wrench | Torque* | Fig. | ||
| VBE050L04.0-BG-04S04 | 4 | 38° | 5 | 6 | 4 | 2.487(1) | S04 | 8.5 | KEYV-S05 | 4 | 1 |
| VBE060L04.0-BG-04S04 | 4 | 38° | 6 | 5.8 | 4 | 2.987(1) | S04 | 8.5 | KEYV-S05 | 4 | 2 |
| VBE060L05.5-BG-04S05 | 4 | 38° | 6 | 8 | 5.5 | 2.987(1) | S05 | 10 | KEYV-S05 | 7 | 1 |
| VBD080L05.0-BG-04S05 | 4 | 30° | 8 | 7.7 | 5 | 3.982(1) | S05 | 10 | KEYV-S05 | 7 | 2 |
| VBD100L07.0-BG-04S06 | 4 | 30° | 10 | 9.7 | 7 | 4.982(1) | S06 | 13 | KEYV-S06 | 10 | 2 |
| VBD120L09.0-BG-04S08 | 4 | 30° | 12 | 11.7 | 9 | 5.978(2) | S08 | 16.5 | KEYV-S08 | 15 | 2 |
| VBD160L12.0-BG-04S10 | 4 | 30° | 16 | 15.3 | 12 | 7.978(2) | S10 | 20.5 | KEYV-S10 | 28 | 2 |
| VBD200L15.0-BG-04S12 | 4 | 30° | 20 | 18.3 | 15 | 9.972(2) | S12 | 25.5 | KEYV-S12 | 28 | 2 |
| VBD250L22.0-BG-04S15 | 4 | 30° | 25 | 23.9 | 22 | 12.470(3) | S15 | 37 | KEYV-W20 | 40 | 2 |
| The tolerance of R: (1) ± 0.01 | (3) ± 0.02 (2) ± 0.012 | : New |
- Recommended clamping torque (N·m) : Line-up
VBE060/VBD080 ~ VBD200: 2 pieces per package, VBD250: 1 piece per package
