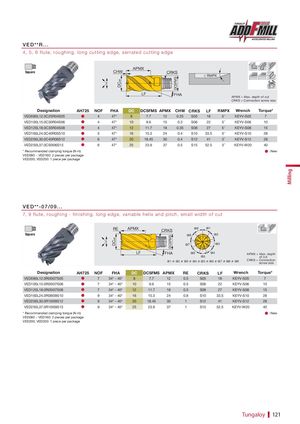

V E D R . . .
4, 5, 6 f l u te, r o u g h i n g, long cutting e d g e, serrated cutting edge
| Square | CHW DCe9 | AP | LF MX | CR | FHA DCSFMS KS | �RMP | X | APMX = Max. de CRKS = Connect | pth of cut ion screw size | |||
| Designation | AH725 | NOF | FHA | DC | DCSFMS | APMX | CHW | CRKS | LF | RMPX | Wrench | Torque |
| VED080L12.0C25R04S05 | � | 4 | 47° | 8 | 7.7 | 12 | 0.25 | S05 | 18 | 5° | KEYV-S05 | 7 |
| VED100L15.0C30R04S06 | � | 4 | 47° | 10 | 9.6 | 15 | 0.3 | S06 | 22 | 5° | KEYV-S06 | 10 |
| VED120L18.0C35R04S08 | � | 4 | 47° | 12 | 11.7 | 18 | 0.35 | S08 | 27 | 5° | KEYV-S08 | 15 |
| VED160L24.0C40R05S10 | � | 5 | 47° | 16 | 15.3 | 24 | 0.4 | S10 | 33.5 | 5° | KEYV-S10 | 28 |
| VED200L30.0C40R06S12 | � | 6 | 47° | 20 | 18.45 | 30 | 0.4 | S12 | 41 | 3° | KEYV-S12 | 28 |
| VED250L37.0C50I06S15 | � | 6 | 47° | 25 | 23.9 | 37 | 0.5 | S15 | 52.5 | 3° | KEYV-W20 | 40 |
| Recommended clamping torque (N· | m) | �: New |
VED080 ~ VED160: 2 pieces per package VED200, VED250: 1 piece per package
V E D - 0 7 / 0 9 . . .
7, 9 f l u te, roughing - f i n i s h i n g, long e d g e, variable helix and p i tc h, small width o f cut
| Square | RE DCe8 | LF APMX | FHA CRKS DCSFMS �1≠� | 2≠�3≠ � �7 �8 | �4≠�5≠� �1 �5 6 �9 | 6≠�7≠� �2 �3 �4 | 8≠�9 APM CRK | X = Max. depth of cut S = Connection screw size | ||
| AH725 Designation | NOF | FHA | DC | DCSFM | S APMX | RE | CRKS | LF | Wrench | Torque |
| VED080L12.0R05I07S05 � | 7 | 34° - 40° | 8 | 7.7 | 12 | 0.5 | S05 | 18 | KEYV-S05 | 7 |
| VED100L15.0R05I07S06 � | 7 | 34° - 40° | 10 | 9.6 | 15 | 0.5 | S06 | 22 | KEYV-S06 | 10 |
| VED120L18.0R05I07S08 � | 7 | 34° - 40° | 12 | 11.7 | 18 | 0.5 | S08 | 27 | KEYV-S08 | 15 |
| VED160L24.0R08I09S10 � | 9 | 34° - 40° | 16 | 15.3 | 24 | 0.8 | S10 | 33.5 | KEYV-S10 | 28 |
| VED200L30.0R10I09S12 � | 9 | 34° - 40° | 20 | 18.45 | 30 | 1 | S12 | 41 | KEYV-S12 | 28 |
| VED250L37.0R10I09S15 � | 9 | 34° - 40° | 25 | 23.9 | 37 | 1 | S15 | 52.5 | KEYV-W20 | 40 |
| Recommended clamping torque (N·m) | �: New |
VED080 ~ VED160: 2 pieces per package VED200, VED250: 1 piece per package
