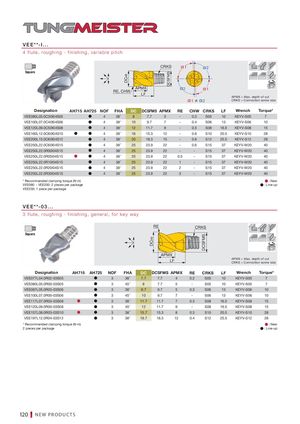

V E E - I . . .
4 f l u t e , roughing - f i n i s h i n g , variable pitch
| Square | DCe8 RE, CH | A W | LF PMX | CRKS DCSFMS | �1 �2 | �1 = | �2 �2 �1 | APMX = Max. d CRKS = Connec | epth of cut tion screw | size | ||||
| Designation | AH715 A | H725 | NOF | FHA | DC | DCSFMS | APMX | RE | CHW | CRKS | LF | Wrench | Torqu | e |
| VEE080L05.0C30I04S05 | � | 4 | 38° | 8 | 7.7 | 5 | - | 0.3 | S05 | 10 | KEYV-S05 | 7 | ||
| VEE100L07.0C40I04S06 | � | 4 | 38° | 10 | 9.7 | 7 | - | 0.4 | S06 | 13 | KEYV-S06 | 10 | ||
| VEE120L09.0C50I04S08 | � | 4 | 38° | 12 | 11.7 | 9 | - | 0.5 | S08 | 16.5 | KEYV-S08 | 15 | ||
| VEE160L12.0C60I04S10 | � | � | 4 | 38° | 16 | 15.3 | 12 | - | 0.6 | S10 | 20.5 | KEYV-S10 | 28 | |
| VEE200L15.0C60I04S12 | � | 4 | 38° | 20 | 18.3 | 15 | - | 0.6 | S12 | 25.5 | KEYV-S12 | 28 | ||
| VEE250L22.0C60I04S15 | � | 4 | 38° | 25 | 23.9 | 22 | - | 0.6 | S15 | 37 | KEYV-W20 | 40 | ||
| VEE250L22.0R00I04S15 | � | 4 | 38° | 25 | 23.9 | 22 | - | - | S15 | 37 | KEYV-W20 | 40 | ||
| VEE250L22.0R05I04S15 | � | � | 4 | 38° | 25 | 23.9 | 22 | 0.5 | - | S15 | 37 | KEYV-W20 | 40 | |
| VEE250L22.0R10I04S15 | � | 4 | 38° | 25 | 23.9 | 22 | 1 | - | S15 | 37 | KEYV-W20 | 40 | ||
| VEE250L22.0R20I04S15 | � | 4 | 38° | 25 | 23.9 | 22 | 2 | - | S15 | 37 | KEYV-W20 | 40 | ||
| VEE250L22.0R30I04S15 | � | 4 | 38° | 25 | 23.9 | 22 | 3 | - | S15 | 37 | KEYV-W20 | 40 | ||
| Recommended clamping tor | que (N·m) | �: | New | |||||||||||
| EE080 ~ VEE200: 2 pieces p | er package | �: Li | ne-up |
VEE250: 1 piece per package
V E E - 0 3 . . .
3 f l u t e , roughing - f i n i s h i n g , g e n e r a l , for key way
| Square | RE APM DCh6 | LF X | CR | KS DCSFMS | APMX = Max. de CRKS = Connect | pth of cut ion screw size | |||||
| AH715 Designation | AH725 | NOF | FHA | DC | DCSFMS | APMX | RE | CRKS | LF | Wrench | Torque |
| VEE077L04.0R02-03S05 | � | 3 | 38° | 7.7 | 7.7 | 4 | 0.2 | S05 | 10 | KEYV-S05 | 7 |
| VEE080L05.0R00-03S05 | � | 3 | 45° | 8 | 7.7 | 5 | - | S05 | 10 | KEYV-S05 | 7 |
| VEE097L05.0R03-03S06 | � | 3 | 38° | 9.7 | 9.7 | 5 | 0.3 | S06 | 13 | KEYV-S06 | 10 |
| VEE100L07.0R00-03S06 | � | 3 | 45° | 10 | 9.7 | 7 | - | S06 | 13 | KEYV-S06 | 10 |
| VEE117L07.0R03-03S08 � | � | 3 | 38° | 11.7 | 11.7 | 7 | 0.3 | S08 | 16.5 | KEYV-S08 | 15 |
| VEE120L09.0R00-03S08 | � | 3 | 45° | 12 | 11.7 | 9 | - | S08 | 16.5 | KEYV-S08 | 15 |
| VEE157L08.0R03-03S10 � | � | 3 | 38° | 15.7 | 15.3 | 8 | 0.3 | S10 | 20.5 | KEYV-S10 | 28 |
| VEE197L12.0R04-03S12 | � | 3 | 38° | 19.7 | 18.3 | 12 | 0.4 | S12 | 25.5 | KEYV-S12 | 28 |
| Recommended clamping torque (N·m) pieces per package | �: New �: Line-up |
