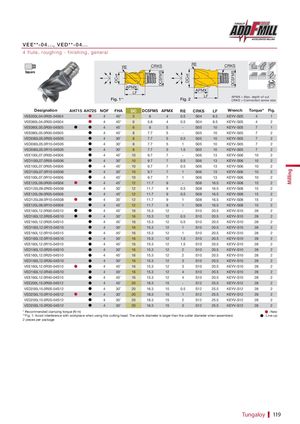

V E E * * - 0 4 . . . , V E D * * - 0 4 . . .
4 f l u t e , roughing - f i n i s h i n g , general
| Suare | R | E | CRK | S S | RE | CRKS S | |||||||
| q | DCe8 | DCSFM | DCe8 | DCSFM | |||||||||
| APMX | |||||||||||||
| Fig. 1 | LF | Fig. 2 | APMX LF | APMX = M CRKS = C | ax. depth of cu onnection scre | t w size | |||||||
| Designation | AH715 | AH725 | NOF | FHA | DC | DCSFMS | APMX | RE | CRKS | LF | Wrench | Torque | Fig. |
| VEE050L04.0R05-04S04 | � | 4 | 45° | 5 | 6 | 4 | 0.5 | S04 | 8.5 | KEYV-S05 | 4 | 1 | |
| VEE060L04.0R05-04S04 | � | 4 | 45° | 6 | 5.8 | 4 | 0.5 | S04 | 8.5 | KEYV-S05 | 4 | 2 | |
| VEE060L05.0R00-04S05 | � | � | 4 | 45° | 6 | 8 | 5 | - | S05 | 10 | KEYV-S05 | 7 | 1 |
| VEE080L05.0R00-04S05 | � | 4 | 45° | 8 | 7.7 | 5 | - | S05 | 10 | KEYV-S05 | 7 | 2 | |
| VED080L05.0R05-04S05 | � | 4 | 30° | 8 | 7.7 | 5 | 0.5 | S05 | 10 | KEYV-S05 | 7 | 2 | |
| VED080L05.0R10-04S05 | � | 4 | 30° | 8 | 7.7 | 5 | 1 | S05 | 10 | KEYV-S05 | 7 | 2 | |
| VED080L05.0R15-04S05 | � | 4 | 30° | 8 | 7.7 | 5 | 1.5 | S05 | 10 | KEYV-S05 | 7 | 2 | |
| VEE100L07.0R00-04S06 | � | 4 | 45° | 10 | 9.7 | 7 | - | S06 | 13 | KEYV-S06 | 10 | 2 | |
| VED100L07.0R05-04S06 | � | 4 | 30° | 10 | 9.7 | 7 | 0.5 | S06 | 13 | KEYV-S06 | 10 | 2 | |
| VEE100L07.0R05-04S06 | � | 4 | 45° | 10 | 9.7 | 7 | 0.5 | S06 | 13 | KEYV-S06 | 10 | 2 | |
| VED100L07.0R10-04S06 | � | 4 | 30° | 10 | 9.7 | 7 | 1 | S06 | 13 | KEYV-S06 | 10 | 2 | |
| VEE100L07.0R10-04S06 | � | 4 | 45° | 10 | 9.7 | 7 | 1 | S06 | 13 | KEYV-S06 | 10 | 2 | |
| VEE120L09.0R00-04S08 | � | � | 4 | 45° | 12 | 11.7 | 9 | - | S08 | 16.5 | KEYV-S08 | 15 | 2 |
| VED120L09.0R05-04S08 | � | 4 | 30° | 12 | 11.7 | 9 | 0.5 | S08 | 16.5 | KEYV-S08 | 15 | 2 | |
| VEE120L09.0R05-04S08 | � | 4 | 45° | 12 | 11.7 | 9 | 0.5 | S08 | 16.5 | KEYV-S08 | 15 | 2 | |
| VED120L09.0R10-04S08 | � | � | 4 | 30° | 12 | 11.7 | 9 | 1 | S08 | 16.5 | KEYV-S08 | 15 | 2 |
| VEE120L09.0R10-04S08 | � | 4 | 45° | 12 | 11.7 | 9 | 1 | S08 | 16.5 | KEYV-S08 | 15 | 2 | |
| VEE160L12.0R00-04S10 | � | � | 4 | 45° | 16 | 15.3 | 12 | - | S10 | 20.5 | KEYV-S10 | 28 | 2 |
| VED160L12.0R05-04S10 | � | � | 4 | 30° | 16 | 15.3 | 12 | 0.5 | S10 | 20.5 | KEYV-S10 | 28 | 2 |
| VEE160L12.0R05-04S10 | � | 4 | 45° | 16 | 15.3 | 12 | 0.5 | S10 | 20.5 | KEYV-S10 | 28 | 2 | |
| VED160L12.0R10-04S10 | � | 4 | 30° | 16 | 15.3 | 12 | 1 | S10 | 20.5 | KEYV-S10 | 28 | 2 | |
| VEE160L12.0R10-04S10 | � | 4 | 45° | 16 | 15.3 | 12 | 1 | S10 | 20.5 | KEYV-S10 | 28 | 2 | |
| VED160L12.0R15-04S10 | � | 4 | 30° | 16 | 15.3 | 12 | 1.5 | S10 | 20.5 | KEYV-S10 | 28 | 2 | |
| VEE160L12.0R15-04S10 | � | 4 | 45° | 16 | 15.3 | 12 | 1.5 | S10 | 20.5 | KEYV-S10 | 28 | 2 | |
| VED160L12.0R20-04S10 | � | 4 | 30° | 16 | 15.3 | 12 | 2 | S10 | 20.5 | KEYV-S10 | 28 | 2 | |
| VEE160L12.0R20-04S10 | � | 4 | 45° | 16 | 15.3 | 12 | 2 | S10 | 20.5 | KEYV-S10 | 28 | 2 | |
| VED160L12.0R30-04S10 | � | 4 | 30° | 16 | 15.3 | 12 | 3 | S10 | 20.5 | KEYV-S10 | 28 | 2 | |
| VEE160L12.0R30-04S10 | � | � | 4 | 45° | 16 | 15.3 | 12 | 3 | S10 | 20.5 | KEYV-S10 | 28 | 2 |
| VED160L12.0R40-04S10 | � | 4 | 30° | 16 | 15.3 | 12 | 4 | S10 | 20.5 | KEYV-S10 | 28 | 2 | |
| VEE160L12.0R40-04S10 | � | 4 | 45° | 16 | 15.3 | 12 | 4 | S10 | 20.5 | KEYV-S10 | 28 | 2 | |
| VEE200L15.0R00-04S12 | � | 4 | 45° | 20 | 18.3 | 15 | - | S12 | 25.5 | KEYV-S12 | 28 | 2 | |
| VED200L15.0R05-04S12 | � | 4 | 30° | 20 | 18.3 | 15 | 0.5 | S12 | 25.5 | KEYV-S12 | 28 | 2 | |
| VED200L15.0R10-04S12 | � | � | 4 | 30° | 20 | 18.3 | 15 | 1 | S12 | 25.5 | KEYV-S12 | 28 | 2 |
| VED200L15.0R20-04S12 | � | 4 | 30° | 20 | 18.3 | 15 | 2 | S12 | 25.5 | KEYV-S12 | 28 | 2 | |
| VED200L15.0R30-04S12 | � | 4 | 30° | 20 | 18.3 | 15 | 3 | S12 | 25.5 | KEYV-S12 | 28 | 2 |
* Recommended clamping torque (N·m) : New **Fig. 1: Avoid interference with workpiece when using this cutting head. The shank diameter is larger than the cutter diameter when assembled. : Line-up 2 pieces per package
