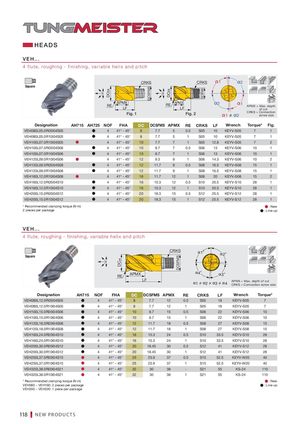

HEADS
V E H . . .
4 f l u te, roughing - f i n i s h i n g, variable helix and pitch
| Square | DCE8 RE | LF APMX Fig. | CR 1 | KS DCSFMS | RE DCE8 L APMX | F Fig. | DCSFMS CRKS 2 | �1 �2 | �1=�2 �2 �1 | APMX = CRKS = | Ma of c Co scr | x. depth ut nnection ew size | ||
| Designation | AH715 | AH725 | NOF | FHA | DC | DCSFMS | APMX | RE | CRKS | LF | Wrench | Torqu | e | Fig. |
| VEH080L05.0R05I04S05 | � | 4 | 41° - 45° | 8 | 7.7 | 5 | 0.5 | S05 | 10 | KEYV-S05 | 7 | 1 | ||
| VEH080L05.0R10I04S05 | � | 4 | 41° - 45° | 8 | 7.7 | 5 | 1 | S05 | 10 | KEYV-S05 | 7 | 1 | ||
| VEH100L07.0R10I04S05 | � | 4 | 41° - 45° | 10 | 7.7 | 7 | 1 | S05 | 12.8 | KEYV-S05 | 7 | 2 | ||
| VEH100L07.0R05I04S06 | � | 4 | 41° - 45° | 10 | 9.7 | 7 | 0.5 | S06 | 13 | KEYV-S06 | 10 | 1 | ||
| VEH100L07.0R10I04S06 | � | 4 | 41° - 45° | 10 | 9.7 | 7 | 1 | S06 | 13 | KEYV-S06 | 10 | 1 | ||
| VEH120L09.0R10I04S06 | � | 4 | 41° - 45° | 12 | 9.3 | 9 | 1 | S06 | 14.3 | KEYV-S06 | 10 | 2 | ||
| VEH120L09.0R05I04S08 | � | 4 | 41° - 45° | 12 | 11.7 | 9 | 0.5 | S08 | 16.5 | KEYV-S08 | 15 | 1 | ||
| VEH120L09.0R10I04S08 | � | 4 | 41° - 45° | 12 | 11.7 | 9 | 1 | S08 | 16.5 | KEYV-S08 | 15 | 1 | ||
| VEH160L12.0R10I04S08 | � | 4 | 41° - 45° | 16 | 11.7 | 12 | 1 | S08 | 20 | KEYV-S08 | 15 | 2 | ||
| VEH160L12.0R05I04S10 | � | 4 | 41° - 45° | 16 | 15.3 | 12 | 0.5 | S10 | 20.5 | KEYV-S10 | 28 | 1 | ||
| VEH160L12.0R10I04S10 | � | 4 | 41° - 45° | 16 | 15.3 | 12 | 1 | S10 | 20.5 | KEYV-S10 | 28 | 1 | ||
| VEH200L15.0R05I04S12 | � | 4 | 41° - 45° | 20 | 18.3 | 15 | 0.5 | S12 | 25.5 | KEYV-S12 | 28 | 1 | ||
| VEH200L15.0R10I04S12 | � | 4 | 41° - 45° | 20 | 18.3 | 15 | 1 | S12 | 25.5 | KEYV-S12 | 28 | 1 | ||
| Recommended clamping tor pieces per package | que (N·m) | � | �: New : Line-up |
V E H . . .
4 f l u te, roughing - f i n i s h i n g, variable helix and pitch
| Square | DCe8 RE | APMX | LF | CRK | DCSFMS S | �1 =�2 = �1° �4° | �3 =�4 �2° �3° | APMX = Ma CRKS = Co | x. depth of cut nnection screw | size | ||
| Designation | AH715 | NOF | FHA | DC | DCSFMS | APMX | RE | CRKS | LF | Wrench | Torqu | e |
| VEH080L12.0R05I04S05 | � | 4 | 41° - 45° | 8 | 7.7 | 12 | 0.5 | S05 | 18 | KEYV-S05 | 7 | |
| VEH080L12.0R10I04S05 | � | 4 | 41° - 45° | 8 | 7.7 | 12 | 1 | S05 | 18 | KEYV-S05 | 7 | |
| VEH100L15.0R05I04S06 | � | 4 | 41° - 45° | 10 | 9.7 | 15 | 0.5 | S06 | 22 | KEYV-S06 | 10 | |
| VEH100L15.0R10I04S06 | � | 4 | 41° - 45° | 10 | 9.7 | 15 | 1 | S06 | 22 | KEYV-S06 | 10 | |
| VEH120L18.0R05I04S08 | � | 4 | 41° - 45° | 12 | 11.7 | 18 | 0.5 | S08 | 27 | KEYV-S08 | 15 | |
| VEH120L18.0R10I04S08 | � | 4 | 41° - 45° | 12 | 11.7 | 18 | 1 | S08 | 27 | KEYV-S08 | 15 | |
| VEH160L24.0R05I04S10 | � | 4 | 41° - 45° | 16 | 15.3 | 24 | 0.5 | S10 | 33.5 | KEYV-S10 | 28 | |
| VEH160L24.0R10I04S10 | � | 4 | 41° - 45° | 16 | 15.3 | 24 | 1 | S10 | 33.5 | KEYV-S10 | 28 | |
| VEH200L30.0R05I04S12 | � | 4 | 41° - 45° | 20 | 18.45 | 30 | 0.5 | S12 | 41 | KEYV-S12 | 28 | |
| VEH200L30.0R10I04S12 | � | 4 | 41° - 45° | 20 | 18.45 | 30 | 1 | S12 | 41 | KEYV-S12 | 28 | |
| VEH250L37.0R05I04S15 | � | 4 | 41° - 45° | 25 | 23.9 | 37 | 0.5 | S15 | 52.5 | KEYV-W2 | 0 40 | |
| VEH250L37.0R10I04S15 | � | 4 | 41° - 45° | 25 | 23.9 | 37 | 1 | S15 | 52.5 | KEYV-W2 | 0 40 | |
| VEH320L38.0R00I04S21 | � | 4 | 41° - 45° | 32 | 30 | 38 | - | S21 | 55 | KS-24 | 110 | |
| VEH320L38.0R10I04S21 | � | 4 | 41° - 45° | 32 | 30 | 38 | 1 | S21 | 55 | KS-24 | 110 | |
| Recommended clamping torqu | e (N·m) | � | : New | |||||||||
| EH080 ~ VEH160: 2 pieces per | package | �: Li | ne-up |
VEH200 ~ VEH320: 1 piece per package
