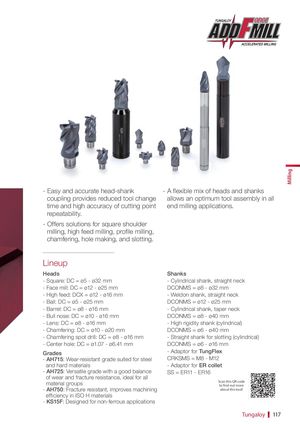

| - Easy and accurate head-shank | - A flexible mix of heads and shanks |
| coupling provides reduced tool change | allows an optimum tool assembly in all |
| time and high accuracy of cutting point | end milling applications. |
repeatability. - Offers solutions for square shoulder milling, high feed milling, profile milling, chamfering, hole making, and slotting.
Lineup
| Heads | Shanks |
| - Square: DC = ø5 - ø32 mm | - Cylindrical shank, straight neck |
| - Face mill: DC = ø12 - ø25 mm | DCONMS = ø8 - ø32 mm |
| - High feed: DCX = ø12 - ø16 mm | - Weldon shank, straight neck |
| - Ball: DC = ø5 - ø25 mm | DCONMS = ø12 - ø25 mm |
| - Barrel: DC = ø8 - ø16 mm | - Cylindrical shank, taper neck |
| - Bull nose: DC = ø10 - ø16 mm | DCONMS = ø8 - ø40 mm |
| - Lens: DC = ø8 - ø16 mm | - High rigidity shank (cylindrical) |
| - Chamfering: DC = ø10 - ø20 mm | DCONMS = ø6 - ø40 mm |
| - Chamfering spot drill: DC = ø8 - ø16 mm | - Straight shank for slotting (cylindrical) |
| - Center hole: DC = ø1.07 - ø6.41 mm | DCONMS = ø6 - ø16 mm |
| Grades | - Adaptor for TungFlex |
| - AH715: Wear-resistant grade suited for steel | CRKSMS = M8 - M12 |
| and hard materials | - Adaptor for ER collet |
| - AH725: Versatile grade with a good balance | SS = ER11 - ER16 |
of wear and fracture resistance, ideal for all material groups Scan this QR code - AH750: Fracture resistant, improves machining about this tool! efficiency in ISO H materials
- KS15F: Designed for non-ferrous applications
