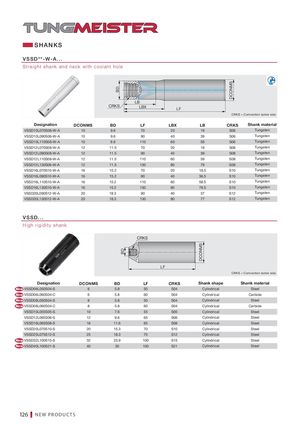

Брошюра Tungaloy новая продукция - страница 126

BD BD DCONMS DCONMS SHANKS VSSD**-W-A... Straight shank and neck with coolant hole LB CRKS LBX LF CRKS = Connection screw size Designation DCONMS BD LF LBX LB CRKS Shank material VSSD10L070S06-W-A 10 9.6 70 20 19 S06 Tungsten VSSD10L090S06-W-A 10 9.6 90 40 39 S06 Tungsten VSSD10L110S06-W-A 10 9.6 110 60 59 S06 Tungsten VSSD12L070S08-W-A 12 11.5 70 20 19 S08 Tungsten VSSD12L090S08-W-A 12 11.5 90 40 39 S08 Tungsten VSSD12L110S08-W-A 12 11.5 110 60 59 S08 Tungsten VSSD12L130S08-W-A 12 11.5 130 80 79 S08 Tungsten VSSD16L070S10-W-A 16 15.2 70 20 18.5 S10 Tungsten VSSD16L090S10-W-A 16 15.2 90 40 36.5 S10 Tungsten VSSD16L110S10-W-A 16 15.2 110 60 58.5 S10 Tungsten VSSD16L130S10-W-A 16 15.2 130 80 78.5 S10 Tungsten VSSD20L090S12-W-A 20 18.3 90 40 37 S12 Tungsten VSSD20L130S12-W-A 20 18.3 130 80 77 S12 Tungsten VSSD... High rigidity shank CRKS LF CRKS = Connection screw size Designation DCONMS BD LF CRKS Shank shape Shank material New VSSD06L050S04-S 6 5.8 50 S04 Cylindrical Steel New VSSD06L060S04-C 6 5.8 60 S04 Cylindrical Carbide New VSSD08L050S04-S 8 5.8 50 S04 Cylindrical Steel New VSSD08L060S04-C 8 5.8 60 S04 Cylindrical Carbide VSSD10L055S05-S 10 7.6 55 S05 Cylindrical Steel VSSD12L065S06-S 12 9.6 65 S06 Cylindrical Steel VSSD16L065S08-S 16 11.6 65 S08 Cylindrical Steel VSSD20L070S10-S 20 15.3 70 S10 Cylindrical Steel VSSD25L075S12-S 25 18.3 75 S12 Cylindrical Steel New VSSD32L100S15-S 32 23.9 100 S15 Cylindrical Steel New VSSD40L100S21-S 40 30 100 S21 Cylindrical Steel 126 NEW PRODUCTS
