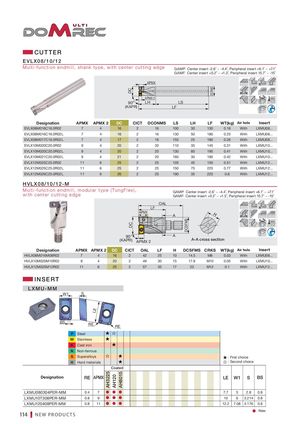

LE AH3225 AH120 AH8015 DCDC DCSFMS DCONMS CUTTER EVLX08/10/12 Multi-function endmill, shank type, with center cutting edge GAMP：Center insert -2.6˚ ~ -4.4˚, Peripheral insert +6.1˚ ~ +7.1˚ GAMF：Center insert +0.2˚ ~ +1.3˚, Peripheral insert 15.7˚ ~ -15˚ APMX R R R APMX 2 90° LH LS (KAPR) LF Designation APMX APMX 2 DC CICT DCONMS LS LH LF WT(kg) Air hole Insert EVLX08M016C16.0R02 7 4 16 2 16 100 30 130 0.18 With LXMU08... EVLX08M016C16.0R02L 7 4 16 2 16 130 50 180 0.25 With LXMU08... EVLX08M017C16.0R02L 7 4 17 2 16 155 25 180 0.26 With LXMU08... EVLX10M020C20.0R02 9 4 20 2 20 110 35 145 0.31 With LXMU10... EVLX10M020C20.0R02L 9 4 20 2 20 130 60 190 0.41 With LXMU10... EVLX10M021C20.0R02L 9 4 21 2 20 160 30 190 0.42 With LXMU10... EVLX12M025C25.0R02 11 6 25 2 25 105 45 150 0.51 With LXMU12... EVLX12M025C25.0R02L 11 6 25 2 25 150 75 225 0.77 With LXMU12... EVLX12M026C25.0R02L 11 6 26 2 25 190 35 225 0.8 With LXMU12... HVLX08/10/12-M Multi-function endmill, modular type (TungFlex),withcentercuttingedge GAMP：Center insert -2.6˚ ~ -4.4˚, Peripheral insert +6.1˚ ~ +7.1˚GAMF：Center insert +0.2˚ ~ +1.3˚, Peripheral insert 15.7˚ ~ -15˚ OAL LF R APMX A H R R 90° A (KAPR) APMX 2 A-A cross section Designation APMX APMX 2 DC CICT OAL LF H DCSFMS CRKS WT(kg) Air hole Insert HVLX08M016M08R02 7 4 16 2 42 25 10 14.5 M8 0.03 With LXMU08... HVLX10M020M10R02 9 4 20 2 49 30 15 17.8 M10 0.05 With LXMU10... HVLX12M025M12R02 11 6 25 2 57 35 17 23 M12 0.1 With LXMU12... INSERT LXMU-MM W1 S BS RE RE P Steel M Stainless K Cast iron N Non-ferrous S Superalloys : First choice H Hard materials : Second choice Coated Designation RE APMX LE W1 S BS LXMU080304PER-MM 0.4 7    7.7 5 2.8 0.8 LXMU10T308PER-MM 0.8 9    10 6 3.214 0.8 LXMU120408PER-MM 0.8 11    12.2 7.08 4.176 0.8 114 NEW PRODUCTS  : New
