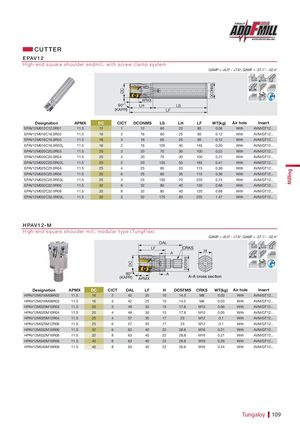

CUT TER
EPAV12
H i g h - e n d square shoulder e n d m i l l , with screw clamp system
| DC (KAPR) 90° | APMX LH | LF | LS | DCONMS GAMP = +6.0 | °~ +7.6°, G | R R R AMF = -37.1°~ -32.4° | ||||
| Designation | APMX | DC | CICT | DCONMS | LS | LH | LF | WT(kg) | Air hole | Insert |
| EPAV12M012C12.0R01 | 11.5 | 12 | 1 | 12 | 60 | 25 | 85 | 0.06 | With | AVM/GT12... |
| EPAV12M016C16.0R02 | 11.5 | 16 | 2 | 16 | 60 | 25 | 85 | 0.12 | With | AVM/GT12... |
| EPAV12M016C16.0R03 | 11.5 | 16 | 3 | 16 | 60 | 25 | 85 | 0.12 | With | AVM/GT12... |
| EPAV12M016C16.0R02L | 11.5 | 16 | 2 | 16 | 105 | 40 | 145 | 0.20 | With | AVM/GT12... |
| EPAV12M020C20.0R03 | 11.5 | 20 | 3 | 20 | 70 | 30 | 100 | 0.22 | With | AVM/GT12... |
| EPAV12M020C20.0R04 | 11.5 | 20 | 4 | 20 | 70 | 30 | 100 | 0.21 | With | AVM/GT12... |
| EPAV12M020C20.0R02L | 11.5 | 20 | 2 | 20 | 135 | 50 | 185 | 0.41 | With | AVM/GT12... |
| EPAV12M025C25.0R04 | 11.5 | 25 | 4 | 25 | 80 | 35 | 115 | 0.38 | With | AVM/GT12... |
| EPAV12M025C25.0R06 | 11.5 | 25 | 6 | 25 | 80 | 35 | 115 | 0.39 | With | AVM/GT12... |
| EPAV12M025C25.0R03L | 11.5 | 25 | 3 | 25 | 150 | 70 | 220 | 0.74 | With | AVM/GT12... |
| EPAV12M032C32.0R06 | 11.5 | 32 | 6 | 32 | 80 | 40 | 120 | 0.68 | With | AVM/GT12... |
| EPAV12M032C32.0R08 | 11.5 | 32 | 8 | 32 | 80 | 40 | 120 | 0.68 | With | AVM/GT12... |
| EPAV12M032C32.0R03L | 11.5 | 32 | 3 | 32 | 175 | 80 | 255 | 1.47 | With | AVM/GT12... |
HPAV12-M
H i g h - e n d square shoulder m i l l , modular type ( T u n g F l e x )
| GA | MP = +6.0° | ~ +7.6°, G | AMF = -37.1°~ -32.4° | ||||||||
| DC | LF OAL | DCSFMS CRKS A | H | R R R | |||||||
| 90° (KAPR) | APMX | A | A-A | cross se | ction | ||||||
| Designation | APMX | DC | CICT | OAL | LF | H | DCSFMS | CRKS | WT(kg) | Air hol | Insert e |
| HPAV12M016M08R02 | 11.5 | 16 | 2 | 42 | 25 | 10 | 14.5 | M8 | 0.03 | With | AVM/GT12... |
| HPAV12M016M08R03 | 11.5 | 16 | 3 | 42 | 25 | 10 | 14.5 | M8 | 0.03 | With | AVM/GT12... |
| HPAV12M020M10R03 | 11.5 | 20 | 3 | 49 | 30 | 15 | 17.8 | M10 | 0.06 | With | AVM/GT12... |
| HPAV12M020M10R04 | 11.5 | 20 | 4 | 49 | 30 | 15 | 17.8 | M10 | 0.05 | With | AVM/GT12... |
| HPAV12M025M12R04 | 11.5 | 25 | 4 | 57 | 35 | 17 | 23 | M12 | 0.1 | With | AVM/GT12... |
| HPAV12M025M12R06 | 11.5 | 25 | 6 | 57 | 35 | 17 | 23 | M12 | 0.1 | With | AVM/GT12... |
| HPAV12M032M16R06 | 11.5 | 32 | 6 | 63 | 40 | 22 | 28.8 | M16 | 0.21 | With | AVM/GT12... |
| HPAV12M032M16R08 | 11.5 | 32 | 8 | 63 | 40 | 22 | 28.8 | M16 | 0.21 | With | AVM/GT12... |
| HPAV12M040M16R06 | 11.5 | 40 | 6 | 63 | 40 | 22 | 28.8 | M16 | 0.25 | With | AVM/GT12... |
| HPAV12M040M16R08 | 11.5 | 40 | 8 | 63 | 40 | 22 | 28.8 | M16 | 0.24 | With | AVM/GT12... |
