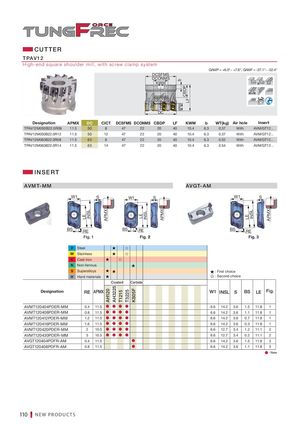

CUT TER
TPAV12
H i g h - e n d square shoulder m i l l , with screw clamp system
| DC KWW DCONMS DCSFMS | APMX LF CBDP b | G | AMP = +6.0° | ~ +7.6°, G | R R R AMF = -37.1°~ -32.4° | ||||
| APMX Designation | DC | CICT | DCSFMS | DCONMS CBDP | LF KWW | b | WT(kg) | Air hole | Insert |
| TPAV12M050B22.0R08 11.5 | 50 | 8 | 47 | 22 20 | 40 10.4 | 6.3 | 0.37 | With | AVM/GT12... |
| TPAV12M050B22.0R12 11.5 | 50 | 12 | 47 | 22 20 | 40 10.4 | 6.3 | 0.37 | With | AVM/GT12... |
| TPAV12M063B22.0R08 11.5 | 63 | 8 | 47 | 22 20 | 40 10.4 | 6.3 | 0.52 | With | AVM/GT12... |
| TPAV12M063B22.0R14 11.5 | 63 | 14 | 47 | 22 20 | 40 10.4 | 6.3 | 0.54 | With | AVM/GT12... |
INSERT
AVMT-MM AVGT-AM
W1 S W1 S W1 S
| LE INSL | LE INSL | LE INSL | ||
| BS | RE | BS RE | BS RE | |
| Fig. 1 | Fig. 2Fig. 2 | Fig. 3Fig. 3 | ||
| P | Steel | |||
| M | Stainless | |||
| K | Cast iron | |||
| N | Non-ferrous |
| S | Superalloys | : First choice | ||
| H | Hard materials | : Second choice | ||
| Coated | Carbide |
| Designation RE APMX | W1 INSL S | BS | LE | Fig. | ||||||
| AVMT120404PDER-MM | 0.4 | 11.5 | | 6.6 | 14.2 | 3.6 | 1.5 | 11.8 | 1 | |
| AVMT120408PDER-MM | 0.8 | 11.5 | | 6.6 | 14.2 | 3.6 | 1.1 | 11.8 | 1 | |
| AVMT120412PDER-MM | 1.2 | 11.5 | | 6.6 | 14.2 | 3.6 | 0.7 | 11.8 | 1 | |
| AVMT120416PDER-MM | 1.6 | 11.5 | | 6.6 | 14.2 | 3.6 | 0.3 | 11.8 | 1 | |
| AVMT120420PDER-MM | 2 | 10.5 | | 6.6 | 12.7 | 3.4 | 1.2 | 11.1 | 2 | |
| AVMT120430PDER-MM | 3 | 10.5 | | 6.6 | 12.7 | 3.4 | 0.2 | 11.1 | 2 | |
| AVGT120404PDFR-AM | 0.4 | 11.5 | | 6.6 | 14.2 | 3.6 | 1.5 | 11.8 | 3 | |
| AVGT120408PDFR-AM | 0.8 | 11.5 | | 6.6 | 14.2 | 3.6 | 1.1 | 11.8 | 3 |
: New
