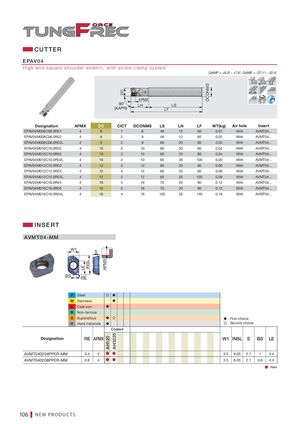

CUT TER
EPAV04
H i g h - e n d square shoulder e n d m i l l , with screw clamp system
GAMP = +6.0°~ +7.6°, GAMF = -37.1°~ -32.4°
| DC (KAPR) 90° | APMX LH | LF | LS | DCONMS | R R R | |||||
| Designation | APMX | DC | CICT | DCONMS | LS | LH | LF | WT(kg) | Air hole | Insert |
| EPAV04M006C06.0R01 | 4 | 6 | 1 | 6 | 48 | 12 | 60 | 0.01 | With | AVMT04... |
| EPAV04M008C08.0R02 | 4 | 8 | 2 | 8 | 48 | 12 | 60 | 0.02 | With | AVMT04... |
| EPAV04M008C08.0R02L | 4 | 8 | 2 | 8 | 60 | 20 | 80 | 0.03 | With | AVMT04... |
| EPAV04M010C10.0R02 | 4 | 10 | 2 | 10 | 60 | 20 | 80 | 0.04 | With | AVMT04... |
| EPAV04M010C10.0R03 | 4 | 10 | 3 | 10 | 60 | 20 | 80 | 0.04 | With | AVMT04... |
| EPAV04M010C10.0R02L | 4 | 10 | 2 | 10 | 65 | 35 | 100 | 0.05 | With | AVMT04... |
| EPAV04M012C12.0R03 | 4 | 12 | 3 | 12 | 60 | 20 | 80 | 0.06 | With | AVMT04... |
| EPAV04M012C12.0R04 | 4 | 12 | 4 | 12 | 60 | 20 | 80 | 0.06 | With | AVMT04... |
| EPAV04M012C12.0R03L | 4 | 12 | 3 | 12 | 85 | 35 | 120 | 0.09 | With | AVMT04... |
| EPAV04M016C16.0R04 | 4 | 16 | 4 | 16 | 70 | 20 | 90 | 0.12 | With | AVMT04... |
| EPAV04M016C16.0R05 | 4 | 16 | 5 | 16 | 70 | 20 | 90 | 0.12 | With | AVMT04... |
| EPAV04M016C16.0R04L | 4 | 16 | 4 | 16 | 105 | 35 | 140 | 0.19 | With | AVMT04... |
INSERT
AVMT04-MM
W1 S
LE INSL
BS RE
| P | Steel | |
| M | Stainless | |
| K | Cast iron | |
| N | Non-ferrous | |
| S | Superalloys | : First choice |
| H | Hard materials | : Second choice |
| Coated |
| Designation | RE APMX | W1 INSL S | BS | LE | |||||
| AVMT040204PPER-MM | 0.4 | 4 | | 3.5 | 6.05 | 2.1 | 1 | 4.4 | |
| AVMT040208PPER-MM | 0.8 | 4 | | 3.5 | 6.05 | 2.1 | 0.6 | 4.4 |
: New
