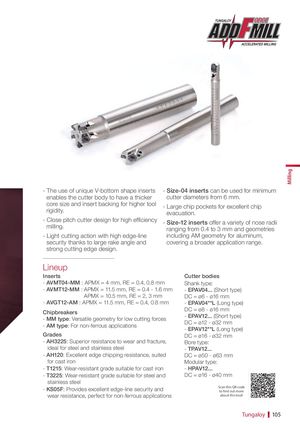

- The use of unique V-bottom shape inserts - Size-04 inserts can be used for minimum enables the cutter body to have a thicker cutter diameters from 6 mm. core size and insert backing for higher tool - Large chip pockets for excellent chip rigidity. evacuation. - Close pitch cutter design for high efficiency Size-12 inserts - offer a variety of nose radii milling. ranging from 0.4 to 3 mm and geometries - Light cutting action with high edge-line including AM geometry for aluminum, security thanks to large rake angle and covering a broader application range. strong cutting edge design.
Lineup
| Inserts | Cutter bodies |
| - AVMT04-MM : APMX = 4 mm, RE = 0.4, 0.8 mm | Shank type: |
| - AVMT12-MM : APMX = 11.5 mm, RE = 0.4 - 1.6 mm | - EPAV04... (Short type) |
| APMX = 10.5 mm, RE = 2, 3 mm DC = ø6 - ø16 mm | |
| - AVGT12-AM : APMX = 11.5 mm, RE = 0.4, 0.8 mm | - EPAV04**L (Long type) |
| Chipbreakers | DC = ø8 - ø16 mm |
| - EPAV12... (Short type) | |
| - MM type: Versatile geometry for low cutting forces | |
| AM type DC = ø12 - ø32 mm | |
| - | : For non-ferrous applications EPAV12**L |
| (Long type) - | |
| Grades | |
| DC = ø16 - ø32 mm | |
| - AH3225: Superior resistance to wear and fracture, | Bore type: |
| ideal for steel and stainless steel - TPAV12... | |
| - AH120: Excellent edge chipping resistance, suited | DC = ø50 - ø63 mm |
| for cast iron Modular type: | |
| - T1215: Wear-resistant grade suitable for cast iron | - HPAV12... |
| - T3225: Wear-resistant grade suitable for steel and | DC = ø16 - ø40 mm |
stainless steel - KS05F: Provides excellent edge-line security and Scan this QR code wear resistance, perfect for non-ferrous applications about this tool!
