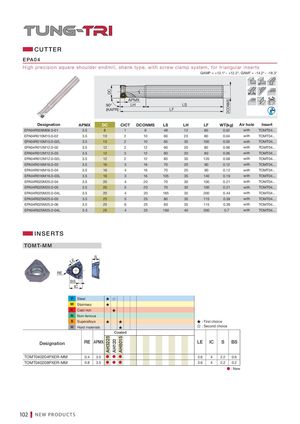

Брошюра Tungaloy новая продукция - страница 102
Навигация
Каталог Tungaloy глубокое сверление 2
Каталог Tungaloy глубокое сверление 1
Каталог Tungaloy зубофрезерование
Общий каталог Tungaloy 2020 - 2021
Каталог Tungaloy инструмент для автоматов швейцарского типа
CUTTER
E PA 0 4
High precision square shoulder e n d m i l l , shank t y p e , with screw clamp s y s te m , for triangular inserts
| GAMP = | +12.1°~ +12. | 2°, GAMF = - | 14.2°~ -18.3° | |||||||
| DC | R R | R | ||||||||
| 90° (KAP | L R) AP | H MX | LF | LS | DCONMS | |||||
| A Designation | PMX | DC | CICT | DCONMS | LS | LH | LF | WT(kg) | Air hole | Insert |
| EPA04R008M08.0-01 | 3.5 | 8 | 1 | 8 | 48 | 12 | 60 | 0.02 | with | TOMT04... |
| EPA04R010M10.0-02 | 3.5 | 10 | 2 | 10 | 60 | 20 | 80 | 0.04 | with | TOMT04... |
| EPA04R010M10.0-02L | 3.5 | 10 | 2 | 10 | 65 | 35 | 100 | 0.05 | with | TOMT04... |
| EPA04R012M12.0-02 | 3.5 | 12 | 2 | 12 | 60 | 20 | 80 | 0.06 | with | TOMT04... |
| EPA04R012M12.0-03 | 3.5 | 12 | 3 | 12 | 60 | 20 | 80 | 0.06 | with | TOMT04... |
| EPA04R012M12.0-02L | 3.5 | 12 | 2 | 12 | 85 | 35 | 120 | 0.09 | with | TOMT04... |
| EPA04R016M16.0-03 | 3.5 | 16 | 3 | 16 | 70 | 20 | 90 | 0.12 | with | TOMT04... |
| EPA04R016M16.0-04 | 3.5 | 16 | 4 | 16 | 70 | 20 | 90 | 0.12 | with | TOMT04... |
| EPA04R016M16.0-03L | 3.5 | 16 | 3 | 16 | 105 | 35 | 140 | 0.19 | with | TOMT04... |
| EPA04R020M20.0-04 | 3.5 | 20 | 4 | 20 | 70 | 30 | 100 | 0.21 | with | TOMT04... |
| EPA04R020M20.0-05 | 3.5 | 20 | 5 | 20 | 70 | 30 | 100 | 0.21 | with | TOMT04... |
| EPA04R020M20.0-04L | 3.5 | 20 | 4 | 20 | 165 | 35 | 200 | 0.44 | with | TOMT04... |
| EPA04R025M25.0-05 | 3.5 | 25 | 5 | 25 | 80 | 35 | 115 | 0.39 | with | TOMT04... |
| EPA04R025M25.0-06 | 3.5 | 25 | 6 | 25 | 80 | 35 | 115 | 0.39 | with | TOMT04... |
| EPA04R025M25.0-04L | 3.5 | 25 | 4 | 25 | 160 | 40 | 200 | 0.7 | with | TOMT04... |
INSERTS
TO M T- M M
RE
Designation
S
LE
BS
IC
| P | Steel | |
| M | Stainless | |
| K | Cast iron | |
| N | Non-ferrous | |
| S | Superalloys | : First choice |
| H | Hard materials | : Second choice |
| Coated |
RE APMX LE IC S BS
| TOMT040204PXER-MM | 0.4 | 3.5 | 3.6 | 4 | 2.2 | 0.6 |
| TOMT040208PXER-MM | 0.8 | 3.5 | 3.6 | 4 | 2.2 | 0.2 |
: New
