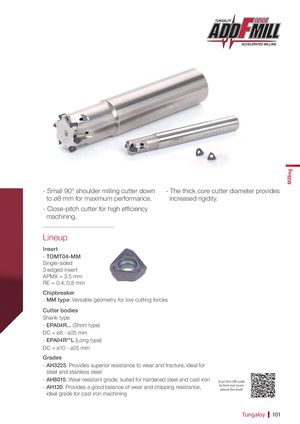

Брошюра Tungaloy новая продукция - страница 101

Milling - Small 90° shoulder milling cutter down - The thick core cutter diameter provides to ø8 mm for maximum performance. increased rigidity. - Close-pitch cutter for high efficiency machining. Lineup Insert - TOMT04-MM Single-sided 3 edged insert APMX = 3.5 mm RE = 0.4, 0.8 mm Chipbreaker - MM type: Versatile geometry for low cutting forces Cutter bodies Shank type: - EPA04R... (Short type) DC = ø8 - ø25 mm - EPA04R**L (Long type) DC = ø10 - ø25 mm Grades - AH3225: Provides superior resistance to wear and fracture, ideal for steel and stainless steel - AH8015: Wear resistant grade, suited for hardened steel and cast iron Scan this QR code - AH120: Provides a good balance of wear and chipping resistance, to find out moreabout this tool! ideal grade for cast iron machining Tungaloy 101
