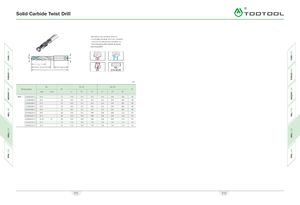

Solid Carbide Twist Drill A\

- Manufacturing standard: DIN 6537
- Chisel edge grinding: TOOTOOL standard
- Tolerance of cutting edge diameter : m 7
- Chip evacuation flute special designed,
easy evacuation


HA
DIN 6535


mm
Dc 8xD 12 xD
Designation dl 15
mm inch Lc 12 II Lc 12 II
DCl..- 16.000A16S - C 16.0 16 136 152 204 192 208 260 48
16.500A18S - C 16.5 18 153 171 223 216 234 285 48
17.000A18S - C 17.0 18 153 171 223 216 234 285 48
17.500A18S - C 17.5 18 153 171 223 216 234 285 48
18.000A18S - C 18.0 18 153 171 223 216 234 285 48
18.500A20S - C 18.5 20 170 171 244 238 258 310 50
19.000A 20S - C 19.0 20 170 190 244 238 258 310 50
3/4 "
19.050A 20S - C 19.05 20 170 190 244 238 258 310 50
19.500A20S - C 19.5 20 170 190 244 238 258 310 50
20.000A20S - C 20.0 20 170 190 244 238 258 310 50
