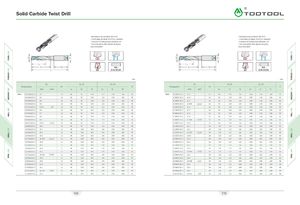

Solid Carbide Twist Drill A\
111


- Manufacturing standard : DIN 6537 - Manufacturing standard : DIN 6537
- Chisel edge grinding: TOOTOOL standard - Chisel edge grinding: TOOTOOL standard
- Tolerance of cutting edge diameter: m7 - Tolerance of cutting edge diameter: m7
- Chip evacuation flute special designed , - Chip evacuation flute special designed ,
easy evacuation easy evacuation


HA HA
DIN 6535 DIN 6535

mm mm
Dc 8x D 12 xD Dc 8xD 12 xD
Designation dl 15 Designation dl 15
mm inch Lc 12 II Lc 12 II mm inch Lc 12 II Lc 12 II
DCl .. - 09.200A10S-C 9.2 10 80 95 139 123 138 180 40 DCl .. - 11.300A12 S-C 11.3 12 96 114 163 140 158 206 45
09.300A10S-C 9.3 10 80 95 139 123 138 180 40 11.400A12S-C 11.4 12 96 114 163 140 158 206 45
09.400A10S-C 9.4 10 80 95 139 123 138 180 40 11.500A12S-C 11.5 12 96 114 163 140 158 206 45
09.500A10S-C 9.5 10 80 95 139 123 138 180 40 11.509A12S-C 11.509 29/64" 12 96 114 163 140 158 206 45
09.525A10S-C 9.525 3/8" 10 80 95 139 123 138 180 40 11.600A12S-C 11.6 12 96 114 163 140 158 206 45
09.600A10S-C 9.6 10 80 95 139 123 138 180 40 11.700A12S-C 11.7 12 96 114 163 140 158 206 45
09.700A10S-C 9.7 10 80 95 139 123 138 180 40 11.800A12S -C 11.8 12 96 114 163 140 158 206 45
09.800A10S-C 9.8 10 80 95 139 123 138 180 40 11.900A12S-C 11.9 12 96 114 163 140 158 206 45
09.900A10S-C 9.9 10 80 95 139 123 138 180 40 11.906A12S -C 11.906 15/ 32" 12 96 114 163 140 158 206 45
09.922A10S-C 9.922 25/64" 10 80 95 139 123 138 180 40 12.000A12S-C 12.0 12 96 114 163 140 158 206 45
10.000A10S-C 10.0 10 80 95 139 123 138 180 40 12.100A14S-C 12.1 14 119 133 182 168 182 230 45
10.100A12S-C 10.1 12 96 114 163 140 158 206 45 12.200A14S-C 12.2 14 119 133 182 168 182 230 45
10.200A12S-C 10.2 12 96 114 163 140 158 206 45 12.303A14S -C 12.303 31/64" 14 119 133 182 168 182 230 45
10.300A12S-C 10.3 12 96 114 163 140 158 206 45 12.250A14S -C 12.25 14 119 133 182 168 182 230 45
10.319A12S-C 10.319 13/ 32" 12 96 114 163 140 158 206 45 12.500A14S-C 12..5 14 119 133 182 168 182 230 45
10.400A12S-C 10.4 12 96 114 163 140 158 206 45 12.600A14S-C 12.6 14 119 133 182 168 182 230 45
10.500A12S-C 10.5 12 96 114 163 140 158 206 45 12.700A14S -C 12.7 14 119 133 182 168 182 230 45
10.600A12S-C 10.6 12 96 114 163 140 158 206 45 13.000A14S-C 13.0 14 119 133 182 168 182 230 45
10.700A12S-C 10.7 12 96 114 163 140 158 206 45 13.494A14S -C 13.494 17/ 32" 14 119 133 182 168 182 230 45
10.716A12S-C 10.716 27/64" 12 96 114 163 140 158 206 45 13.500A14S-C 13.5 14 119 133 182 168 182 230 45
10.800A12S-C 10.8 12 96 114 163 140 158 206 45 14.000A14S -C 14.0 14 119 133 182 168 182 230 45
10.900A12S-C 10.9 12 96 114 163 140 158 206 45 14.288A16S-C 14.288 9/16" 14 136 133 204 192 208 260 48
11.000A12S-C 11.0 12 96 114 163 140 158 206 45 14.500A16S-C 14.5 14 136 133 204 192 208 260 48
11.100A12S-C 11.1 12 96 114 163 140 158 206 45 15.000A16S -C 15.0 14 136 133 204 192 208 260 48
11.113A12S-C 11.113 7/16" 12 96 114 163 140 158 206 45 15.500A16S -C 15.5 14 136 133 204 192 208 260 48
11.200A12S-C 11.2 12 96 114 163 140 158 206 45 15.875A16S-C 15.875 5/8" 14 136 133 204 192 208 260 48
