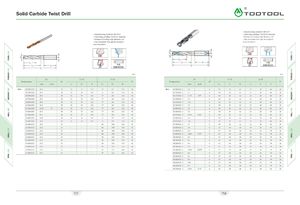

Solid Carbide Twist Drill A\
- Manufacturing standard: DIN 6537
- Manufacturing standard: DIN 6537 - Chisel edge grinding: TOOTOOL standard
- Chisel edge grinding: TOOTOOL standard - Tolerance of cutting edge diameter: m7
- Tolerance of cutting edge diameter: m 7 - Chip evacuation flute special designed,
- Chip evacuation flute special designed, easy evacuation
easy evacuation

i r:
i Dc I<J
di
Dc di T T
t T c
12 15 -
c HA
c
HA DIN 6535
12 15 DIN 6535

mm mm

Dc 3xD 5xD Dc 3xD 5xD
Designation dl 15 Designation dl 15
mm inch Lc 12 II Lc 12 II mm inch Lc 12 II Lc 12 II
DCl..- 18.000A18S - 18.0 18 51 73 123 71 93 143 48 DCl..- 03.000A 6S - C 3.0 6 14 20 62 23 28 66 36
18.200A 20S - 18.2 20 55 79 131 77 101 153 50 03.100A 6S - C 3.1 6 14 20 62 23 28 66 36
18.500A 20S - 18.5 20 55 79 131 77 101 153 50 03.175 A 6S - C 3.175 1/ 8" 6 14 20 62 23 28 66 36
18.700A 20S - 18.7 20 55 79 131 77 101 153 50 03.200A 6S - C 3.2 6 14 20 62 23 28 66 36
18.800A 20S - 18.8 20 55 79 131 77 101 153 50 03.250A 6S - C 3.25 6 14 20 62 23 28 66 36
19.000A 20S - 19.0 20 55 79 131 77 101 153 50 03.300A 6S - C 3.3 6 14 20 62 23 28 66 36
19.050A 20S - 19.05 3/4 " 20 55 79 131 77 101 153 50 03.400A 6S - C 3.4 6 14 20 62 23 28 66 36
19.500A 20S - 19.5 20 55 79 131 77 101 153 50 03.500A 6S - C 3.5 6 14 20 62 23 28 66 36
19.700A 20S - 19.7 20 55 79 131 77 101 153 50 03.572A 6S - C 3.572 9/ 64" 6 14 20 62 23 28 66 36
19.800A 20S - 19.8 20 55 79 131 77 101 153 50 03.600A 6S - C 3.6 6 14 20 62 23 28 66 36
20.000A 20S - 20.0 20 55 79 131 77 101 153 50 03.650A 6S - C 3.65 6 14 20 62 23 28 66 36
20.500A 25 S - 20.5 25 86 108 166 56 03.700A 6S - C 3.7 6 14 20 62 23 28 66 36
21.000A 25 S - 21.0 25 86 108 166 56 03.800A 6S - C 3.8 6 17 24 66 29 36 74 36
21.500A 25 S - 21.5 25 86 108 166 56 03.900A 6S - C 3.9 6 17 24 66 29 36 74 36
22.000A 25 S 22.0 25 86 108 166 56 03.969A 6S - C 3.969 5 /32 " 6 17 24 66 29 36 74 36
22.500A 25 S 22.5 25 91 115 173 56 04.000A 6S - C 4.0 6 17 24 66 29 36 74 36
23.000A 25 S 23.0 25 91 115 173 56 04.100A 6S - C 4.1 6 17 24 66 29 36 74 36
23.500A 25 S 23.5 25 91 115 173 56 04.200A 6S - C 4.2 6 17 24 66 29 36 74 36
24.000A 25 S 24.0 25 91 115 173 56 04.300A 6S - C 4.3 6 17 24 66 29 36 74 36
24.500A 25 S 24.5 25 97 122 180 56 04.366A 6S - C 4.366 11/ 64" 6 17 24 66 29 36 74 36
25.000A 25 S 25.0 25 97 122 180 56 04.400A 6S - C 4.4 6 17 24 66 29 36 74 36
04.500A 6S - C 4.5 6 17 24 66 29 36 74 36
04.600A 6S - C 4.6 6 17 24 66 29 36 74 36
04.650A 6 S - C 4.65 6 17 24 66 29 36 74 36
04.700A 6S - C 4.7 6 17 24 66 29 36 74 36
04.763A 6S - C 4.763 3 /16" 6 20 28 66 35 44 82 36
