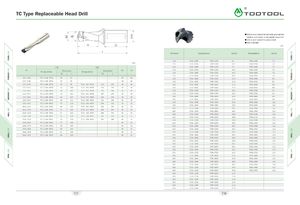

TC Type Replaceable Head Drill
140 '
L2
L
LI
i cc
i
111
TCEA is most suitable for soft steel, gray cast iron,
•stainless steel, relative to low rigidity equipment
•TCPA is most suitable for general steel. TCFA is flat drill. mm
| Dh7(mm) | Design | ations | L(mm) | Designations | L(mm) |
| 12.0 | TCEA -1200 | TCPA-1200 | 9.1 | TCFA-1200 | 7.1 |
| 12.5 | TCEA-1250 | TCPA-1250 | 9.4 | TCFA-1250 | 7.2 |
| 13.0 | TCEA -1300 | TCPA-1300 | 9.7 | TCFA-1300 | 7.5 |
| 13.5 | TCEA-1350 | TCPA-1350 | 10.3 | TCFA-1350 | 7.9 |
| 14.0 | TCEA -1400 | TCPA-1400 | 10.3 | TCFA-1400 | 7.9 |
| 14.5 | TCEA -1450 | TCPA-1450 | 10.3 | TCFA-1450 | 7.9 |
| 15.0 | TCEA -1500 | TCPA-1500 | 11.0 | TCFA-1500 | 8.3 |
| 15.5 | TCEA -1550 | TCPA-1550 | 11.0 | TCFA-1550 | 8.3 |
| 16.0 | TCEA-1600 | TCPA-1600 | 11.6 | TCFA-1600 | 8.8 |
| 16.5 | TCEA -1650 | TCPA-1650 | 11.6 | TCFA-1650 | 8.8 |
| 17.0 | TCEA-1700 | TCPA-1700 | 12.3 | TCFA-1700 | 9.3 |
| 17.5 | TCEA -1750 | TCPA-1750 | 12.3 | TCFA-1750 | 9.3 |
| 18.0 | TCEA -1800 | TCPA-1800 | 12.9 | TCFA-1800 | 9.8 |
| 18.5 | TCEA -1850 | TCPA-1850 | 12.9 | TCFA-1850 | 9.8 |
| 19.0 | TCEA -1900 | TCPA-1900 | 13.6 | TCFA-1900 | 10.2 |
| 19.5 | TCEA-1950 | TCPA-1950 | 13.6 | TCFA-1950 | 10.2 |
| 20.0 | TCEA -2000 | TCPA-2000 | 14.1 | TCFA-2000 | 10.7 |
| 20.5 | TCEA -2050 | TCPA-2050 | 14.1 | TCFA-2050 | 10.7 |
| 21.0 | TCEA-2100 | TCPA-2100 | 14.8 | TCFA-2100 | 11.2 |
| 21.5 | TCEA -2150 | TCPA-2150 | 14.8 | TCFA-2150 | 11.2 |
| 22.0 | TCEA-2200 | TCPA-2200 | 15.0 | TCFA-2200 | 11.2 |
| 22.5 | TCEA -2250 | TCPA-2250 | 15.0 | TCFA-2250 | 11.2 |
| 23.0 | TCEA -2300 | TCPA-2300 | 15.2 | TCFA-2300 | 11.2 |
| 23.5 | TCEA -2350 | TCPA-2350 | 15.2 | TCFA-2350 | 11.2 |
| 24.0 | TCEA -2400 | TCPA-2400 | 15.4 | TCFA-2400 | 11.3 |
| 24.5 | TCEA-2450 | TCPA-2450 | 15.4 | TCFA-2450 | 11.3 |
| 25.0 | TCEA -2500 | TCPA-2500 | 15.9 | TCFA-2500 | 11.7 |
| 25.5 | TCEA-2550 | TCPA-2550 | 15.9 | TCFA-2550 | 11.7 |
| 26.0 | TCEA -2600 | TCPA-2600 | 16.5 | TCFA-2600 | 12.2 |
| 26.5 | TCEA-2650 | TCPA-2650 | 16.5 | TCFA-2650 | 12.2 |
| 27.0 | TCEA -2700 | TCPA-2700 | 17.2 | TCFA-2700 | 12.7 |
| 27.5 | TCEA-2750 | TCPA-2750 | 17.2 | TCFA-2750 | 12.7 |
| 28.0 | TCEA -2800 | TCPA-2800 | 17.8 | TCFA-2800 | 13.2 |
| 28.5 | TCEA -2850 | TCPA-2850 | 17.8 | TCFA-2850 | 13.2 |
| 29.0 | TCEA -2900 | TCPA-2900 | 18.4 | TCFA-2900 | 13.6 |
| 29.5 | TCEA-2950 | TCPA-2950 | 18.4 | TCFA-2950 | 13.6 |
| 30.0 | TCEA -3000 | TCPA-3000 | 19.0 | TCFA-3000 | 14.1 |
| 30.5 | TCEA-3050 | TCPA-3050 | 19.0 | TCFA-3050 | 14.1 |
| 31.0 | TCEA -3100 | TCPA-3100 | 21.0 | ||
| 31.5 | TCEA-3150 | TCPA-3150 | 21.0 | ||
| 32.0 | TCEA -3200 | TCPA-3200 | 21.0 | ||
| 32.5 | TCEA-3250 | TCPA-3250 | 21.0 | ||
| 33.0 33.5 | TCEA -3300 TCEA-3350 | TCPA-3300 TCPA-3350 | 21.0 21.0 |
mm
| D | 1. | 5D Di | i | 12 | D Di | i | D1 | LI |
| Designations | m | nson | Designations | m | nson | |||
| L2 | L | L2 | L | |||||
| 12.0-12.49 | TCI.5-120-XP16 | 28 | 91 | 48 | 16 | |||
| 12.5-13.49 | TCI.5-130-XP16 | 30 | 92 | 48 | 16 | |||
| 13.5-14.50 | TCI.5-140-XP16 | 34 | 96 | TC12 -135- XP16 | 171 | 239 | 48 | 16 |
| 14.51-15.5 | TCI.5-150-XP20 | 35 | 100 | TC12 -145- XP20 | 183 | 239 | 50 | 20 |
| 15.51-16.5 | TCI.5-160-XP20 | 38 | 103 | TC12 -155- XP20 | 195 | 266 | 50 | 20 |
| 16.51-17.5 | TCI.5-170-XP20 | 39 | 105 | TC12-165- XP20 | 207 | 278 | 50 | 20 |
| 17.51-18.5 | TCI.5-180-XP20 | 43 | 107 | TC12-175- XP20 | 219 | 291 | 50 | 20 |
| 18.51-19.5 | TCI.5-190-XP25 | 44 | 115 | TC12 -185- XP25 | 232 | 309 | 56 | 25 |
| 19.51-20.5 | TCI.5-200-XP25 | 47 | 118 | TC12 -195- XP25 | 244 | 321 | 56 | 25 |
| 20.51-21.5 | TCI.5-210-XP25 | 48 | 119 | TC12-205- XP25 | 256 | 334 | 56 | 25 |
| 21.51-22.8 | TCI.5-220-XP25 | 51 | 121 | TC12-215- XP25 | 268 | 347 | 56 | 25 |
| 22.81-23.8 | TCI.5-230-XP25 | 51 | 122 | TC12-228- XP25 | 280 | 359 | 56 | 25 |
| 23.81-24.8 | TCI.5-240-XP32 | 54 | 129 | TC12-238- XP32 | 292 | 376 | 60 | 32 |
| 24.81-25.8 | TCI.5-250-XP32 | 54 | 129 | TC12-248- XP32 | 305 | 388 | 60 | 32 |
| 25.81-26.8 | TCI.5-260-XP32 | 57 | 132 | 60 | 32 | |||
| 26.81-27.8 | TCI.5-270-XP32 | 58 | 133 | 60 | 32 | |||
| 27.81-28.8 | TCI.5-280-XP32 | 60 | 135 | 60 | 32 | |||
| 28.81-29.8 | TCI.5-290 -XP32 | 61 | 136 | 60 | 32 | |||
| 29.81-30.8 | TCI.5-300-XP32 | 64 | 139 | 60 | 32 |
