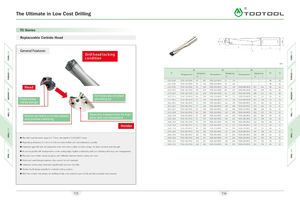

The Ultimate in Low Cost Drilling A\ 0


TC Series
Replaceable Carbide Head i i

S 140
I V ( ) '
L2 1.1
General Features L
Drill head locking
condition
mm

3D 5D 8D
D Dimension Dimension Dimension D1 LI
Designations Designations Designations
L2 L L2 L L2 L
12.0-12.49 TC03-120-XP16 46 107 TC05-120-XP16 71 132 48 16
12.5-13.49 TC03-130-XP16 49 112 TC05-130-XP16 76 142 48 16
Head 13.5-14.50 TC03-140-XP16 55 119 TC05-140-XP16 84 149 TC08-140-XP16 127 194 48 16
14.51-15.5 TC03-150-XP20 58 129 TC05-150-XP20 89 159 TC08-150-XP20 136 204 50 20
15.51-16.5 TC03-160-XP20 62 134 TC05-160-XP20 95 169 TC08-160-XP20 144 214 50 20
Oil holes are directed 16.51-17.5 TC03-170-XP20 66 140 TC05-170-XP20 101 175 TC08-170-XP20 154 225 50 20
Front screw at cutting lip 17.51-18.5 TC03-180-XP20 70 145 TC05-180-XP20 107 180 TC08-180-XP20 162 230 50 20
clamp design -
18.51 19.5 TC03-190-XP25 73 160 TC05-190-XP25 112 195 TC08-190-XP25 171 255 56 25
-
19.51 20.5 TC03-200-XP25 77 160 TC05-200-XP25 118 200 TC08-200-XP25 179 262 56 25
20.51-21.5 TC03-210-XP25 80 160 TC05-210-XP25 123 200 TC08-210-XP25 188 266 56 25
21.51-22.8 TC03-220-XP25 84 165 TC05-220-XP25 129 205 TC08-220-XP25 196 275 56 25
Radial serration provides steady
Specially treated body for high 22.81-23.8 TC03-230-XP25 87 165 TC05-230-XP25 134 215 TC06-230-XP25 205 285 56 25
and precise clamping
wear and rust resistance 23.81-24.8 TC03-240-XP32 91 175 TC05-240-XP32 140 225 TC08-240-XP32 213 300 60 32
24.81-25.8 TC03-250-XP32 93 175 TC05-250-XP32 145 230 TC08-250-XP32 222 305 60 32
Holder -
25.81 26.8 TC03-260-XP32 97 180 TC05-260-XP32 151 235 TC08-260-XP32 230 315 60 32
26.81-27.8 TC03-270-XP32 99 180 TC05-270-XP32 156 240 TC08-270-XP32 239 325 60 32
27.81-28.8 TC03-280-XP32 102 185 TC05-280-XP32 162 245 TC08-280-XP32 247 330 60 32
28.81-29.8 TC03-290-XP32 105 190 TC05-290-XP32 167 250 TC08-290-XP32 256 340 60 32
•The drill head diameter range isl2 -32mm, the depth is 1.5/3/5/8/12 times 29.81-30.8 TC03-300-XP32 110 191 TC05-300-XP32 173 261 TC08-300-XP32 265 351 60 32

•Regrinding allowance of 1.5mm to 3.0mm makes further tool cost reductions possible.
30.81-32.0
32.01-33.5
TC03-320-XP32
TC03-330-XP32
116
121
201
206
TC05-320-XP32
TC05-330-XP32
181
191
266
276
TC08-320-XP32
TC08-330-XP32
276
291
361
376
60
60
32
32
•Indexable type drill with exchangeable head, which has a radial serration design, for high precision and strength.
•An exchangeable drill head provides a new cutting edge, higher productivity and cost efficiency with easy tool management.
•The same tool holder can be equipped with different diameter heads, saving tool costs
•Optimized spiral design improves chip control for soft materials.
•Enhanced cutting edge treatment significantly improves tools life.
•Holder shank design suitable for multiple tooling systems
•With the coolant hole design, the drilling is fully cold, makes longer tool life and the smoother chip removal.
