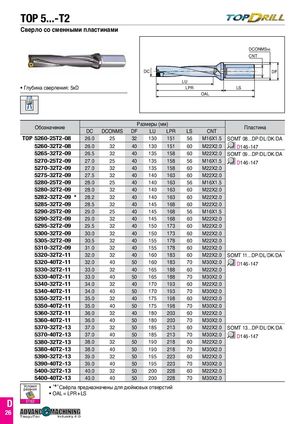

Каталог TaeguTec вращающиеся инструменты 2020 - 2021 - страница 93
Навигация
Каталог TaeguTec токарные инструменты 2020 - 2021
DC LU
Глубина сверления: 5xD LPR LS
OAL
DCONMSh6 CNT DF
| Обозначение | DC | DCONMS | Ра DF | змеры( LU | мм) LPR | LS | CNT | Пластина |
| TOP 5260-25T2-08 | 26.0 | 25 | 32 | 130 | 151 | 56 | M16X1.5 | SOMT 08...DP/DL/DK/DA |
| 5260-32T2-08 | 26.0 | 32 | 40 | 130 | 151 | 60 | M22X2.0 | D146-147 |
| 5265-32T2-09 | 26.5 | 32 | 40 | 135 | 158 | 60 | M22X2.0 | SOMT 09...DP/DL/DK/DA |
| 5270-25T2-09 | 27.0 | 25 | 40 | 135 | 158 | 56 | M16X1.5 | D146-147 |
| 5270-32T2-09 | 27.0 | 32 | 40 | 135 | 158 | 60 | M22X2.0 | |
| 5275-32T2-09 | 27.5 | 32 | 40 | 140 | 163 | 60 | M22X2.0 | |
| 5280-25T2-09 | 28.0 | 25 | 40 | 140 | 163 | 56 | M16X1.5 | |
| 5280-32T2-09 | 28.0 | 32 | 40 | 140 | 163 | 60 | M22X2.0 | |
| 5282-32T2-09 | 28.2 | 32 | 40 | 140 | 163 | 60 | M22X2.0 | |
| 5285-32T2-09 | 28.5 | 32 | 40 | 145 | 168 | 60 | M22X2.0 | |
| 5290-25T2-09 | 29.0 | 25 | 40 | 145 | 168 | 56 | M16X1.5 | |
| 5290-32T2-09 | 29.0 | 32 | 40 | 145 | 168 | 60 | M22X2.0 | |
| 5295-32T2-09 | 29.5 | 32 | 40 | 150 | 173 | 60 | M22X2.0 | |
| 5300-32T2-09 | 30.0 | 32 | 40 | 150 | 173 | 60 | M22X2.0 | |
| 5305-32T2-09 | 30.5 | 32 | 40 | 155 | 178 | 60 | M22X2.0 | |
| 5310-32T2-09 | 31.0 | 32 | 40 | 155 | 178 | 60 | M22X2.0 | |
| 5320-32T2-11 | 32.0 | 32 | 40 | 160 | 183 | 60 | M22X2.0 | SOMT 11...DP/DL/DK/DA |
| 5320-40T2-11 | 32.0 | 40 | 50 | 160 | 183 | 70 | M30X2.0 | D146-147 |
| 5330-32T2-11 | 33.0 | 32 | 40 | 165 | 188 | 60 | M22X2.0 | |
| 5330-40T2-11 | 33.0 | 40 | 50 | 165 | 188 | 70 | M30X2.0 | |
| 5340-32T2-11 | 34.0 | 32 | 40 | 170 | 193 | 60 | M22X2.0 | |
| 5340-40T2-11 | 34.0 | 40 | 50 | 170 | 193 | 70 | M30X2.0 | |
| 5350-32T2-11 | 35.0 | 32 | 40 | 175 | 198 | 60 | M22X2.0 | |
| 5350-40T2-11 | 35.0 | 40 | 50 | 175 | 198 | 70 | M30X2.0 | |
| 5360-32T2-11 | 36.0 | 32 | 40 | 180 | 203 | 60 | M22X2.0 | |
| 5360-40T2-11 | 36.0 | 40 | 50 | 180 | 203 | 70 | M30X2.0 | |
| 5370-32T2-13 | 37.0 | 32 | 50 | 185 | 213 | 60 | M22X2.0 | SOMT 13...DP/DL/DK/DA |
| 5370-40T2-13 | 37.0 | 40 | 50 | 185 | 213 | 70 | M30X2.0 | D146-147 |
| 5380-32T2-13 | 38.0 | 32 | 50 | 190 | 218 | 60 | M22X2.0 | |
| 5380-40T2-13 | 38.0 | 40 | 50 | 190 | 218 | 70 | M30X2.0 | |
| 5390-32T2-13 | 39.0 | 32 | 50 | 195 | 223 | 60 | M22X2.0 | |
| 5390-40T2-13 | 39.0 | 40 | 50 | 195 | 223 | 70 | M30X2.0 | |
| 5400-32T2-13 | 40.0 | 32 | 50 | 200 | 228 | 60 | M22X2.0 | |
| 5400-40T2-13 | 40.0 | 40 | 50 | 200 | 228 | 70 | M30X2.0 |
