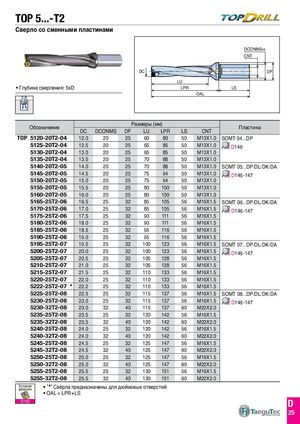

Каталог TaeguTec вращающиеся инструменты 2020 - 2021 - страница 92
Навигация
Каталог TaeguTec токарные инструменты 2020 - 2021
DC LU
Глубина сверления: 5xD LPR LS
OAL
DCONMSh6 CNT DF
| Обозначение | DC | DCONMS | Ра DF | змеры( LU | мм) LPR | LS | CNT | Пластина |
| TOP 5120-20T2-04 | 12.0 | 20 | 25 | 60 | 80 | 50 | M13X1.0 | SOMT 04...DP |
| 5125-20T2-04 | 12.5 | 20 | 25 | 65 | 85 | 50 | M13X1.0 | D146 |
| 5130-20T2-04 | 13.0 | 20 | 25 | 65 | 85 | 50 | M13X1.0 | |
| 5135-20T2-04 | 13.5 | 20 | 25 | 70 | 88 | 50 | M13X1.0 | |
| 5140-20T2-05 | 14.0 | 20 | 25 | 70 | 88 | 50 | M13X1.0 | SOMT 05...DP/DL/DK/DA |
| 5145-20T2-05 | 14.5 | 20 | 25 | 75 | 94 | 50 | M13X1.0 | D146-147 |
| 5150-20T2-05 | 15.0 | 20 | 25 | 75 | 94 | 50 | M13X1.0 | |
| 5155-20T2-05 | 15.5 | 20 | 25 | 80 | 100 | 50 | M13X1.0 | |
| 5160-20T2-05 | 16.0 | 20 | 25 | 80 | 100 | 50 | M13X1.0 | |
| 5165-25T2-06 | 16.5 | 25 | 32 | 85 | 105 | 56 | M16X1.5 | SOMT 06...DP/DL/DK/DA |
| 5170-25T2-06 | 17.0 | 25 | 32 | 85 | 105 | 56 | M16X1.5 | D146-147 |
| 5175-25T2-06 | 17.5 | 25 | 32 | 90 | 111 | 56 | M16X1.5 | |
| 5180-25T2-06 | 18.0 | 25 | 32 | 90 | 111 | 56 | M16X1.5 | |
| 5185-25T2-06 | 18.5 | 25 | 32 | 95 | 116 | 56 | M16X1.5 | |
| 5190-25T2-06 | 19.0 | 25 | 32 | 95 | 116 | 56 | M16X1.5 | |
| 5195-25T2-07 | 19.5 | 25 | 32 | 100 | 123 | 56 | M16X1.5 | SOMT 07...DP/DL/DK/DA |
| 5200-25T2-07 | 20.0 | 25 | 32 | 100 | 123 | 56 | M16X1.5 | D146-147 |
| 5205-25T2-07 | 20.5 | 25 | 32 | 105 | 128 | 56 | M16X1.5 | |
| 5210-25T2-07 | 21.0 | 25 | 32 | 105 | 128 | 56 | M16X1.5 | |
| 5215-25T2-07 | 21.5 | 25 | 32 | 110 | 133 | 56 | M16X1.5 | |
| 5220-25T2-07 | 22.0 | 25 | 32 | 110 | 133 | 56 | M16X1.5 | |
| 5222-25T2-07 | 22.2 | 25 | 32 | 110 | 133 | 56 | M16X1.5 | |
| 5225-25T2-08 | 22.5 | 25 | 32 | 115 | 137 | 56 | M16X1.5 | SOMT 08...DP/DL/DK/DA |
| 5230-25T2-08 | 23.0 | 25 | 32 | 115 | 137 | 56 | M16X1.5 | D146-147 |
| 5230-32T2-08 | 23.0 | 32 | 40 | 115 | 137 | 60 | M22X2.0 | |
| 5235-25T2-08 | 23.5 | 25 | 32 | 120 | 142 | 56 | M16X1.5 | |
| 5235-32T2-08 | 23.5 | 32 | 40 | 120 | 142 | 60 | M22X2.0 | |
| 5240-25T2-08 | 24.0 | 25 | 32 | 120 | 142 | 56 | M16X1.5 | |
| 5240-32T2-08 | 24.0 | 32 | 40 | 120 | 142 | 60 | M22X2.0 | |
| 5245-25T2-08 | 24.5 | 25 | 32 | 125 | 147 | 56 | M16X1.5 | |
| 5245-32T2-08 | 24.5 | 32 | 40 | 125 | 147 | 60 | M22X2.0 | |
| 5250-25T2-08 | 25.0 | 25 | 32 | 125 | 147 | 56 | M16X1.5 | |
| 5250-32T2-08 | 25.0 | 32 | 40 | 125 | 147 | 60 | M22X2.0 | |
| 5255-25T2-08 | 25.5 | 25 | 32 | 130 | 151 | 56 | M16X1.5 | |
| 5255-32T2-08 | 25.5 | 32 | 40 | 130 | 151 | 60 | M22X2.0 |
5255-32T2-08⁎ 25.5 32 40 130 151 60 M22X2.0
Условия ' 'Свёрла предназначены для дюймовых отверстий
