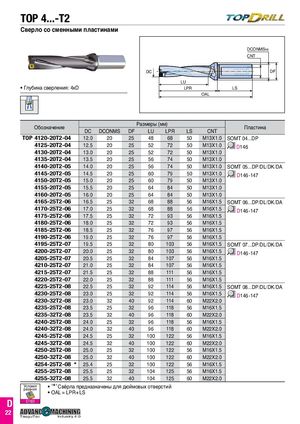

Каталог TaeguTec вращающиеся инструменты 2020 - 2021 - страница 89
Навигация
Каталог TaeguTec токарные инструменты 2020 - 2021
DC LU
Глубина сверления: 4xD LPR LS
OAL
DCONMSh6 CNT DF
| Обозначение | DC | DCONMS | Р DF | азмеры( LU | мм) LPR | LS | CNT | Пластина |
| TOP 4120-20T2-04 | 12.0 | 20 | 25 | 48 | 68 | 50 | M13X1.0 | SOMT 04...DP |
| 4125-20T2-04 | 12.5 | 20 | 25 | 52 | 72 | 50 | M13X1.0 | D146 |
| 4130-20T2-04 | 13.0 | 20 | 25 | 52 | 72 | 50 | M13X1.0 | |
| 4135-20T2-04 | 13.5 | 20 | 25 | 56 | 74 | 50 | M13X1.0 | |
| 4140-20T2-05 | 14.0 | 20 | 25 | 56 | 74 | 50 | M13X1.0 | SOMT 05...DP/DL/DK/DA |
| 4145-20T2-05 | 14.5 | 20 | 25 | 60 | 79 | 50 | M13X1.0 | D146-147 |
| 4150-20T2-05 | 15.0 | 20 | 25 | 60 | 79 | 50 | M13X1.0 | |
| 4155-20T2-05 | 15.5 | 20 | 25 | 64 | 84 | 50 | M13X1.0 | |
| 4160-20T2-05 | 16.0 | 20 | 25 | 64 | 84 | 50 | M13X1.0 | |
| 4165-25T2-06 | 16.5 | 25 | 32 | 68 | 88 | 56 | M16X1.5 | SOMT 06...DP/DL/DK/DA |
| 4170-25T2-06 | 17.0 | 25 | 32 | 68 | 88 | 56 | M16X1.5 | D146-147 |
| 4175-25T2-06 | 17.5 | 25 | 32 | 72 | 93 | 56 | M16X1.5 | |
| 4180-25T2-06 | 18.0 | 25 | 32 | 72 | 93 | 56 | M16X1.5 | |
| 4185-25T2-06 | 18.5 | 25 | 32 | 76 | 97 | 56 | M16X1.5 | |
| 4190-25T2-06 | 19.0 | 25 | 32 | 76 | 97 | 56 | M16X1.5 | |
| 4195-25T2-07 | 19.5 | 25 | 32 | 80 | 103 | 56 | M16X1.5 | SOMT 07...DP/DL/DK/DA |
| 4200-25T2-07 | 20.0 | 25 | 32 | 80 | 103 | 56 | M16X1.5 | D146-147 |
| 4205-25T2-07 | 20.5 | 25 | 32 | 84 | 107 | 56 | M16X1.5 | |
| 4210-25T2-07 | 21.0 | 25 | 32 | 84 | 107 | 56 | M16X1.5 | |
| 4215-25T2-07 | 21.5 | 25 | 32 | 88 | 111 | 56 | M16X1.5 | |
| 4220-25T2-07 | 22.0 | 25 | 32 | 88 | 111 | 56 | M16X1.5 | |
| 4225-25T2-08 | 22.5 | 25 | 32 | 92 | 114 | 56 | M16X1.5 | SOMT 08...DP/DL/DK/DA |
| 4230-25T2-08 | 23.0 | 25 | 32 | 92 | 114 | 56 | M16X1.5 | D146-147 |
| 4230-32T2-08 | 23.0 | 32 | 40 | 92 | 114 | 60 | M22X2.0 | |
| 4235-25T2-08 | 23.5 | 25 | 32 | 96 | 118 | 56 | M16X1.5 | |
| 4235-32T2-08 | 23.5 | 32 | 40 | 96 | 118 | 60 | M22X2.0 | |
| 4240-25T2-08 | 24.0 | 25 | 32 | 96 | 118 | 56 | M16X1.5 | |
| 4240-32T2-08 | 24.0 | 32 | 40 | 96 | 118 | 60 | M22X2.0 | |
| 4245-25T2-08 | 24.5 | 25 | 32 | 100 | 122 | 56 | M16X1.5 | |
| 4245-32T2-08 | 24.5 | 32 | 40 | 100 | 122 | 60 | M22X2.0 | |
| 4250-25T2-08 | 25.0 | 25 | 32 | 100 | 122 | 56 | M16X1.5 | |
| 4250-32T2-08 | 25.0 | 32 | 40 | 100 | 122 | 60 | M22X2.0 | |
| 4254-25T2-08 | 25.4 | 25 | 32 | 100 | 122 | 56 | M16X1.5 | |
| 4255-25T2-08 | 25.5 | 25 | 32 | 104 | 125 | 56 | M16X1.5 | |
| 4255-32T2-08 | 25.5 | 32 | 40 | 104 | 125 | 60 | M22X2.0 |
4255-32T2-08⁎ 25.5 32 40 104 125 60 M22X2.0
