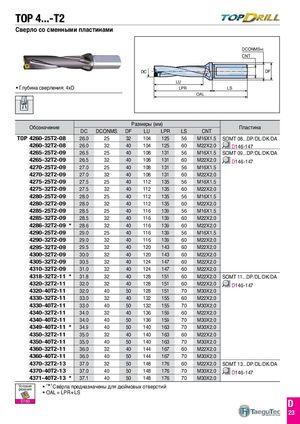

Каталог TaeguTec вращающиеся инструменты 2020 - 2021 - страница 90
Навигация
Каталог TaeguTec токарные инструменты 2020 - 2021
DC LU
Глубина сверления: 4xD LPR LS
OAL
DCONMSh6 CNT DF
| Обозначение | DC | DCONMS | Ра DF | змеры( LU | мм) LPR | LS | CNT | Пластина |
| TOP 4260-25T2-08 | 26.0 | 25 | 32 | 104 | 125 | 56 | M16X1.5 | SOMT 08...DP/DL/DK/DA |
| 4260-32T2-08 | 26.0 | 32 | 40 | 104 | 125 | 60 | M22X2.0 | D146-147 |
| 4265-25T2-09 | 26.5 | 25 | 40 | 108 | 131 | 56 | M16X1.5 | SOMT 09...DP/DL/DK/DA |
| 4265-32T2-09 | 26.5 | 32 | 40 | 108 | 131 | 60 | M22X2.0 | D146-147 |
| 4270-25T2-09 | 27.0 | 25 | 40 | 108 | 131 | 56 | M16X1.5 | |
| 4270-32T2-09 | 27.0 | 32 | 40 | 108 | 131 | 60 | M22X2.0 | |
| 4275-25T2-09 | 27.5 | 25 | 40 | 112 | 135 | 56 | M16X1.5 | |
| 4275-32T2-09 | 27.5 | 32 | 40 | 112 | 135 | 60 | M22X2.0 | |
| 4280-25T2-09 | 28.0 | 25 | 40 | 112 | 135 | 56 | M16X1.5 | |
| 4280-32T2-09 | 28.0 | 32 | 40 | 112 | 135 | 60 | M22X2.0 | |
| 4285-25T2-09 | 28.5 | 25 | 40 | 116 | 139 | 56 | M16X1.5 | |
| 4285-32T2-09 | 28.5 | 32 | 40 | 116 | 139 | 60 | M22X2.0 | |
| 4286-32T2-09 | 28.6 | 32 | 40 | 116 | 139 | 60 | M22X2.0 | |
| 4290-25T2-09 | 29.0 | 25 | 40 | 116 | 139 | 56 | M16X1.5 | |
| 4290-32T2-09 | 29.0 | 32 | 40 | 116 | 139 | 60 | M22X2.0 | |
| 4295-32T2-09 | 29.5 | 32 | 40 | 120 | 143 | 60 | M22X2.0 | |
| 4300-32T2-09 | 30.0 | 32 | 40 | 120 | 143 | 60 | M22X2.0 | |
| 4305-32T2-09 | 30.5 | 32 | 40 | 124 | 147 | 60 | M22X2.0 | |
| 4310-32T2-09 | 31.0 | 32 | 40 | 124 | 147 | 60 | M22X2.0 | |
| 4318-32T2-11 | 31.8 | 32 | 40 | 128 | 151 | 60 | M22X2.0 | SOMT 11...DP/DL/DK/DA |
| 4320-32T2-11 | 32.0 | 32 | 40 | 128 | 151 | 60 | M22X2.0 | D146-147 |
| 4320-40T2-11 | 32.0 | 40 | 50 | 128 | 151 | 70 | M30X2.0 | |
| 4330-32T2-11 | 33.0 | 32 | 40 | 132 | 155 | 60 | M22X2.0 | |
| 4330-40T2-11 | 33.0 | 40 | 50 | 132 | 155 | 70 | M30X2.0 | |
| 4340-32T2-11 | 34.0 | 32 | 40 | 136 | 159 | 60 | M22X2.0 | |
| 4340-40T2-11 | 34.0 | 40 | 50 | 136 | 159 | 70 | M30X2.0 | |
| 4349-40T2-11 | 34.9 | 40 | 50 | 140 | 163 | 70 | M30X2.0 | |
| 4350-32T2-11 | 35.0 | 32 | 40 | 140 | 163 | 60 | M22X2.0 | |
| 4350-40T2-11 | 35.0 | 40 | 50 | 140 | 163 | 70 | M30X2.0 | |
| 4360-32T2-11 | 36.0 | 32 | 40 | 144 | 167 | 60 | M22X2.0 | |
| 4360-40T2-11 | 36.0 | 40 | 50 | 144 | 167 | 70 | M30X2.0 | |
| 4370-32T2-13 | 37.0 | 32 | 50 | 148 | 176 | 60 | M22X2.0 | SOMT 13...DP/DL/DK/DA |
| 4370-40T2-13 | 37.0 | 40 | 50 | 148 | 176 | 70 | M30X2.0 | D146-147 |
| 4371-40T2-13 | 37.1 | 40 | 50 | 148 | 176 | 70 | M30X2.0 |
4371-40T2-13 *⁎ 37.1 40 50 148 176 70 M30X2.0
