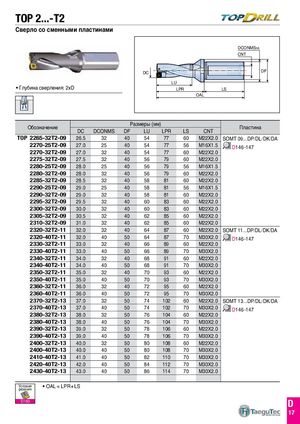

Каталог TaeguTec вращающиеся инструменты 2020 - 2021 - страница 84
Навигация
Каталог TaeguTec токарные инструменты 2020 - 2021
DC LU
Глубина сверления: 2xD LPR LS
OAL
DCONMSh6 CNT DF
| Обозначение | DC | DCONMS | Раз DF | меры(м LU | м) LPR | LS | CNT | Пластина |
| TOP 2265-32T2-09 | 26.5 | 32 | 40 | 54 | 77 | 60 | M22X2.0 | SOMT 09...DP/DL/DK/DA |
| 2270-25T2-09 | 27.0 | 25 | 40 | 54 | 77 | 56 | M16X1.5 | D146-147 |
| 2270-32T2-09 | 27.0 | 32 | 40 | 54 | 77 | 60 | M22X2.0 | |
| 2275-32T2-09 | 27.5 | 32 | 40 | 56 | 79 | 60 | M22X2.0 | |
| 2280-25T2-09 | 28.0 | 25 | 40 | 56 | 79 | 56 | M16X1.5 | |
| 2280-32T2-09 | 28.0 | 32 | 40 | 56 | 79 | 60 | M22X2.0 | |
| 2285-32T2-09 | 28.5 | 32 | 40 | 58 | 81 | 60 | M22X2.0 | |
| 2290-25T2-09 | 29.0 | 25 | 40 | 58 | 81 | 56 | M16X1.5 | |
| 2290-32T2-09 | 29.0 | 32 | 40 | 58 | 81 | 60 | M22X2.0 | |
| 2295-32T2-09 | 29.5 | 32 | 40 | 60 | 83 | 60 | M22X2.0 | |
| 2300-32T2-09 | 30.0 | 32 | 40 | 60 | 83 | 60 | M22X2.0 | |
| 2305-32T2-09 | 30.5 | 32 | 40 | 62 | 85 | 60 | M22X2.0 | |
| 2310-32T2-09 | 31.0 | 32 | 40 | 62 | 85 | 60 | M22X2.0 | |
| 2320-32T2-11 | 32.0 | 32 | 40 | 64 | 87 | 60 | M22X2.0 | SOMT 11...DP/DL/DK/DA |
| 2320-40T2-11 | 32.0 | 40 | 50 | 64 | 87 | 70 | M30X2.0 | D146-147 |
| 2330-32T2-11 | 33.0 | 32 | 40 | 66 | 89 | 60 | M22X2.0 | |
| 2330-40T2-11 | 33.0 | 40 | 50 | 66 | 89 | 70 | M30X2.0 | |
| 2340-32T2-11 | 34.0 | 32 | 40 | 68 | 91 | 60 | M22X2.0 | |
| 2340-40T2-11 | 34.0 | 40 | 50 | 68 | 91 | 70 | M30X2.0 | |
| 2350-32T2-11 | 35.0 | 32 | 40 | 70 | 93 | 60 | M22X2.0 | |
| 2350-40T2-11 | 35.0 | 40 | 50 | 70 | 93 | 70 | M30X2.0 | |
| 2360-32T2-11 | 36.0 | 32 | 40 | 72 | 95 | 60 | M22X2.0 | |
| 2360-40T2-11 | 36.0 | 40 | 50 | 72 | 95 | 70 | M30X2.0 | |
| 2370-32T2-13 | 37.0 | 32 | 50 | 74 | 102 | 60 | M22X2.0 | SOMT 13...DP/DL/DK/DA |
| 2370-40T2-13 | 37.0 | 40 | 50 | 74 | 102 | 70 | M30X2.0 | D146-147 |
| 2380-32T2-13 | 38.0 | 32 | 50 | 76 | 104 | 60 | M22X2.0 | |
| 2380-40T2-13 | 38.0 | 40 | 50 | 76 | 104 | 70 | M30X2.0 | |
| 2390-32T2-13 | 39.0 | 32 | 50 | 78 | 106 | 60 | M22X2.0 | |
| 2390-40T2-13 | 39.0 | 40 | 50 | 78 | 106 | 70 | M30X2.0 | |
| 2400-32T2-13 | 40.0 | 32 | 50 | 80 | 108 | 60 | M22X2.0 | |
| 2400-40T2-13 | 40.0 | 40 | 50 | 80 | 108 | 70 | M30X2.0 | |
| 2410-40T2-13 | 41.0 | 40 | 50 | 82 | 110 | 70 | M30X2.0 | |
| 2420-40T2-13 | 42.0 | 40 | 50 | 84 | 112 | 70 | M30X2.0 | |
| 2430-40T2-13 | 43.0 | 40 | 50 | 86 | 114 | 70 | M30X2.0 |
