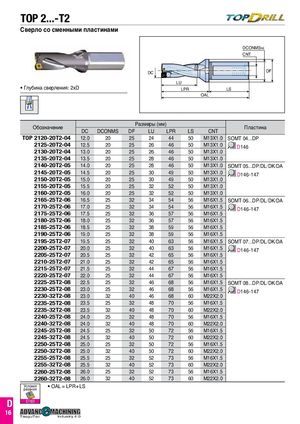

Каталог TaeguTec вращающиеся инструменты 2020 - 2021 - страница 83
Навигация
Каталог TaeguTec токарные инструменты 2020 - 2021
DC LU
Глубина сверления: 2xD LPR LS
OAL
DCONMSh6 CNT DF
| Обозначение | DC | DCONMS | Ра DF | змеры( LU | мм) LPR | LS | CNT | Пластина |
| TOP 2120-20T2-04 | 12.0 | 20 | 25 | 24 | 44 | 50 | M13X1.0 | SOMT 04...DP |
| 2125-20T2-04 | 12.5 | 20 | 25 | 26 | 46 | 50 | M13X1.0 | D146 |
| 2130-20T2-04 | 13.0 | 20 | 25 | 26 | 46 | 50 | M13X1.0 | |
| 2135-20T2-04 | 13.5 | 20 | 25 | 28 | 46 | 50 | M13X1.0 | |
| 2140-20T2-05 | 14.0 | 20 | 25 | 28 | 46 | 50 | M13X1.0 | SOMT 05...DP/DL/DK/DA |
| 2145-20T2-05 | 14.5 | 20 | 25 | 30 | 49 | 50 | M13X1.0 | D146-147 |
| 2150-20T2-05 | 15.0 | 20 | 25 | 30 | 49 | 50 | M13X1.0 | |
| 2155-20T2-05 | 15.5 | 20 | 25 | 32 | 52 | 50 | M13X1.0 | |
| 2160-20T2-05 | 16.0 | 20 | 25 | 32 | 52 | 50 | M13X1.0 | |
| 2165-25T2-06 | 16.5 | 25 | 32 | 34 | 54 | 56 | M16X1.5 | SOMT 06...DP/DL/DK/DA |
| 2170-25T2-06 | 17.0 | 25 | 32 | 34 | 54 | 56 | M16X1.5 | D146147 |
| 2175-25T2-06 | 17.5 | 25 | 32 | 36 | 57 | 56 | M16X1.5 | - |
| 2180-25T2-06 | 18.0 | 25 | 32 | 36 | 57 | 56 | M16X1.5 | |
| 2185-25T2-06 | 18.5 | 25 | 32 | 38 | 59 | 56 | M16X1.5 | |
| 2190-25T2-06 | 19.0 | 25 | 32 | 38 | 59 | 56 | M16X1.5 | |
| 2195-25T2-07 | 19.5 | 25 | 32 | 40 | 63 | 56 | M16X1.5 | SOMT 07...DP/DL/DK/DA |
| 2200-25T2-07 | 20.0 | 25 | 32 | 40 | 63 | 56 | M16X1.5 | D146-147 |
| 2205-25T2-07 | 20.5 | 25 | 32 | 42 | 65 | 56 | M16X1.5 | |
| 2210-25T2-07 | 21.0 | 25 | 32 | 42 | 65 | 56 | M16X1.5 | |
| 2215-25T2-07 | 21.5 | 25 | 32 | 44 | 67 | 56 | M16X1.5 | |
| 2220-25T2-07 | 22.0 | 25 | 32 | 44 | 67 | 56 | M16X1.5 | |
| 2225-25T2-08 | 22.5 | 25 | 32 | 46 | 68 | 56 | M16X1.5 | SOMT 08...DP/DL/DK/DA |
| 2230-25T2-08 | 23.0 | 25 | 32 | 46 | 68 | 56 | M16X1.5 | D146-147 |
| 2230-32T2-08 | 23.0 | 32 | 40 | 46 | 68 | 60 | M22X2.0 | |
| 2235-25T2-08 | 23.5 | 25 | 32 | 48 | 70 | 56 | M16X1.5 | |
| 2235-32T2-08 | 23.5 | 32 | 40 | 48 | 70 | 60 | M22X2.0 | |
| 2240-25T2-08 | 24.0 | 25 | 32 | 48 | 70 | 56 | M16X1.5 | |
| 2240-32T2-08 | 24.0 | 32 | 40 | 48 | 70 | 60 | M22X2.0 | |
| 2245-25T2-08 | 24.5 | 25 | 32 | 50 | 72 | 56 | M16X1.5 | |
| 2245-32T2-08 | 24.5 | 32 | 40 | 50 | 72 | 60 | M22X2.0 | |
| 2250-25T2-08 | 25.0 | 25 | 32 | 50 | 72 | 56 | M16X1.5 | |
| 2250-32T2-08 | 25.0 | 32 | 40 | 50 | 72 | 60 | M22X2.0 | |
| 2255-25T2-08 | 25.5 | 25 | 32 | 52 | 73 | 56 | M16X1.5 | |
| 2255-32T2-08 | 25.5 | 32 | 40 | 52 | 73 | 60 | M22X2.0 | |
| 2260-25T2-08 | 26.0 | 25 | 32 | 52 | 73 | 56 | M16X1.5 | |
| 2260-32T2-08 | 26.0 | 32 | 40 | 52 | 73 | 60 | M22X2.0 |
