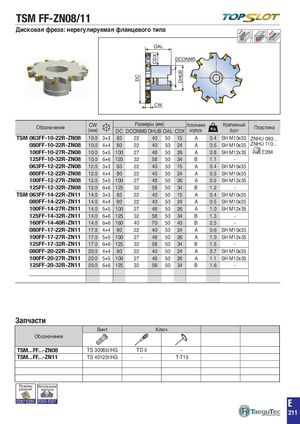

TSM FF-ZN08/11 플런징 가공 경사각 측면 가공 및 챔퍼 가공 평면 가공 카운터 보링
Дисковая фреза: нерегулируемая фланцевого типа OAL
| DC | CDX OAL CW | DHUB DCO | NMS | ||||||||
| Об | CW | Раз | меры(мм | ) | Исполнение | Крепежный | П | ||||
| означение | (мм) | DC D | CONM | SDHUB | OAL | CDX | корпуса | болт | ластина | ||
| TSM 063FF-10-22R-ZN08 | 10.0 | 3+3 | 63 | 22 | 40 | 50 | 15 | A | 0.4 | SH M10x35 | ZNHU 080... |
| 080FF-10-22R-ZN08 | 10.0 | 4+4 | 80 | 22 | 40 | 50 | 24 | A | 0.5 | SH M10x35 | ZNHU 110... |
| 100FF-10-27R-ZN08 | 10.0 | 5+5 | 100 | 27 | 48 | 50 | 26 | A | 0.8 | SH M12x35 | E284 |
| 125FF-10-32R-ZN08 | 10.0 | 6+6 | 125 | 32 | 58 | 50 | 34 | B | 1.1 | - | |
| 063FF-12-22R-ZN08 | 12.0 | 3+3 | 63 | 22 | 40 | 50 | 15 | A | 0.4 | SH M10x35 | |
| 080FF-12-22R-ZN08 | 12.0 | 4+4 | 80 | 22 | 40 | 50 | 24 | A | 0.5 | SH M10x35 | |
| 100FF-12-27R-ZN08 | 12.0 | 5+5 | 100 | 27 | 48 | 50 | 26 | A | 0.9 | SH M12x35 | |
| 125FF-12-32R-ZN08 | 12.0 | 6+6 | 125 | 32 | 58 | 50 | 34 | B | 1.2 | - | |
| TSM 063FF-14-22R-ZN11 | 14.0 | 3+3 | 63 | 22 | 40 | 50 | 15 | A | 0.4 | SH M10x35 | |
| 080FF-14-22R-ZN11 | 14.0 | 4+4 | 80 | 22 | 40 | 50 | 24 | A | 0.5 | SH M10x35 | |
| 100FF-14-27R-ZN11 | 14.0 | 5+5 | 100 | 27 | 48 | 50 | 26 | A | 1.0 | SH M12x35 | |
| 125FF-14-32R-ZN11 | 14.0 | 6+6 | 125 | 32 | 58 | 50 | 34 | B | 1.3 | - | |
| 160FF-14-40R-ZN11 | 14.0 | 6+6 | 160 | 40 | 70 | 50 | 43 | B | 2.5 | - | |
| 080FF-17-22R-ZN11 | 17.0 | 4+4 | 80 | 22 | 40 | 50 | 24 | A | 0.6 | SH M10x35 | |
| 100FF-17-27R-ZN11 | 17.0 | 5+5 | 100 | 27 | 48 | 50 | 26 | A | 1.0 | SH M12x35 | |
| 125FF-17-32R-ZN11 | 17.0 | 6+6 | 125 | 32 | 58 | 50 | 34 | B | 1.5 | - | |
| 080FF-20-22R-ZN11 | 20.0 | 4+4 | 80 | 22 | 40 | 50 | 24 | A | 0.7 | SH M10x35 | |
| 100FF-20-27R-ZN11 | 20.0 | 5+5 | 100 | 27 | 48 | 50 | 26 | A | 1.1 | SH M12x35 | |
| 125FF-20-32R-ZN11 | 20.0 | 6+6 | 125 | 32 | 58 | 50 | 34 | B | 1.6 | - |
Запчасти
| Винт | Кл | юч | |
| Обозначение | |||
| TSM...FF...-ZN08 | TS 30085I/HG | TD 9 | - |
| TSM...FF...-ZN11 | TS 40120I/HG | - | T-T15 |
