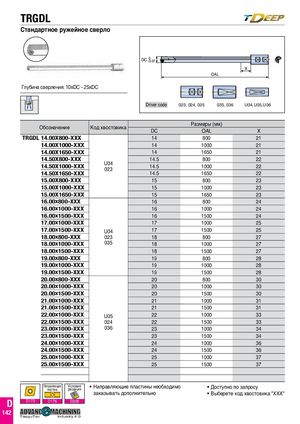

TRGDL
DC 0 DC -0.070 -0.07
Глубина сверления: 10xDC - 25xDC Driver code
X OAL X OAL
| 023, 024, 025 | 035, 036 | U04 ,U 05 , U 06 |
| 023, 024, 025 | 035, 036 | U04 ,U 05 , U 06 |
| Обозначение | Код хвостовика | DC | Размеры(мм) OAL | X |
| TRGDL14.00X800-XXX | 14 | 800 | 21 | |
| 14.00X1000-XXX | 14 | 1000 | 21 | |
| 14.00X1650-XXX | 14 | 1650 | 21 | |
| 14.50X800-XXX | 14.5 | 800 | 22 | |
| 14.50X1000-XXX | U04 023 | 14.5 | 1000 | 22 |
| 14.50X1650-XXX | 14.5 | 1650 | 22 | |
| 15.00X800-XXX | 15 | 800 | 23 | |
| 15.00X1000-XXX | 15 | 1000 | 23 | |
| 15.00X1650-XXX | 15 | 1650 | 23 | |
| 16.00x800-XXX | 16 | 800 | 24 | |
| 16.00x1000-XXX | 16 | 1000 | 24 | |
| 16.00x1500-XXX | 16 | 1500 | 24 | |
| 17.00x1000-XXX | 17 | 1000 | 25 | |
| 17.00x1500-XXX | U04 | 17 | 1500 | 25 |
| 18.00x800-XXX | 023 | 18 | 800 | 27 |
| 18.00x1000-XXX | 035 | 18 | 1000 | 27 |
| 18.00x1500-XXX | 18 | 1500 | 27 | |
| 19.00x800-XXX | 19 | 800 | 28 | |
| 19.00x1000-XXX | 19 | 1000 | 28 | |
| 19.00x1500-XXX | 19 | 1500 | 28 | |
| 20.00x800-XXX | 20 | 800 | 30 | |
| 20.00x1000-XXX | 20 | 1000 | 30 | |
| 20.00x1500-XXX | 20 | 1500 | 30 | |
| 21.00x1000-XXX | 21 | 1000 | 31 | |
| 21.00x1500-XXX | 21 | 1500 | 31 | |
| 22.00x1000-XXX | U05 | 22 | 1000 | 33 |
| 22.00x1500-XXX | 024 | 22 | 1500 | 33 |
| 23.00x1000-XXX | 036 | 23 | 1000 | 34 |
| 23.00x1500-XXX | 23 | 1500 | 34 | |
| 24.00x1000-XXX | 24 | 1000 | 36 | |
| 24.00x1500-XXX | 24 | 1500 | 36 | |
| 25.00x1000-XXX | 25 | 1000 | 37 | |
| 25.00x1500-XXX | 25 | 1500 | 37 |
TaeguTec Industry 4.0
| Направляющая | Условия | • Направляющие пластины необходимо | • Доступно по запросу |
| пластина | резания | заказывать дополнительно | Выберете код хвостовика "ХХХ" |
