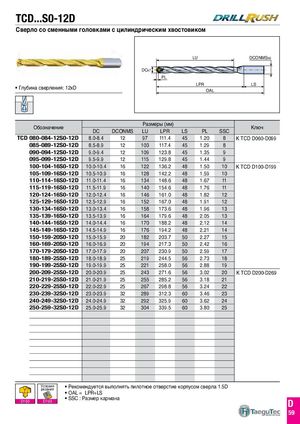

DC k7 Глубина сверления: 12xD
PL
LU DCONMSh6
LPR LS OAL
| Об | Разм | еры(мм) | К | |||||
| означение | DC | DCONMS | LU | LPR | LS | PL | SSC | люч |
| TCD 080-084-12S0-12D | 8.0-8.4 | 12 | 97 | 111.4 | 45 | 1.20 | 8 | K TCD D060-D099 |
| 085-089-12S0-12D | 8.5-8.9 | 12 | 103 | 117.4 | 45 | 1.29 | 8 | |
| 090-094-12S0-12D | 9.0-9.4 | 12 | 109 | 123.8 | 45 | 1.35 | 9 | |
| 095-099-12S0-12D | 9.5-9.9 | 12 | 115 | 129.8 | 45 | 1.44 | 9 | |
| 100-104-16S0-12D | 10.0-10.4 | 16 | 122 | 136.2 | 48 | 1.50 | 10 | K TCD D100-D199 |
| 105-109-16S0-12D | 10.5-10.9 | 16 | 128 | 142.2 | 48 | 1.59 | 10 | |
| 110-114-16S0-12D | 11.0-11.4 | 16 | 134 | 148.6 | 48 | 1.67 | 11 | |
| 115-119-16S0-12D | 11.5-11.9 | 16 | 140 | 154.6 | 48 | 1.76 | 11 | |
| 120-124-16S0-12D | 12.0-12.4 | 16 | 146 | 161.0 | 48 | 1.82 | 12 | |
| 125-129-16S0-12D | 12.5-12.9 | 16 | 152 | 167.0 | 48 | 1.91 | 12 | |
| 130-134-16S0-12D | 13.0-13.4 | 16 | 158 | 173.6 | 48 | 1.96 | 13 | |
| 135-139-16S0-12D | 13.5-13.9 | 16 | 164 | 179.6 | 48 | 2.05 | 13 | |
| 140-144-16S0-12D | 14.0-14.4 | 16 | 170 | 188.2 | 48 | 2.12 | 14 | |
| 145-149-16S0-12D | 14.5-14.9 | 16 | 176 | 194.2 | 48 | 2.21 | 14 | |
| 150-159-20S0-12D | 15.0-15.9 | 20 | 182 | 203.7 | 50 | 2.27 | 15 | |
| 160-169-20S0-12D | 16.0-16.9 | 20 | 194 | 217.3 | 50 | 2.42 | 16 | |
| 170-179-20S0-12D | 17.0-17.9 | 20 | 207 | 230.9 | 50 | 2.59 | 17 | |
| 180-189-25S0-12D | 18.0-18.9 | 25 | 219 | 244.5 | 56 | 2.73 | 18 | |
| 190-199-25S0-12D | 19.0-19.9 | 25 | 221 | 258.0 | 56 | 2.88 | 19 | |
| 200-209-25S0-12D | 20.0-20.9 | 25 | 243 | 271.6 | 56 | 3.02 | 20 | K TCD D200-D269 |
| 210-219-25S0-12D | 21.0-21.9 | 25 | 255 | 285.2 | 56 | 3.18 | 21 | |
| 220-229-25S0-12D | 22.0-22.9 | 25 | 267 | 298.8 | 56 | 3.24 | 22 | |
| 230-239-32S0-12D | 23.0-23.9 | 32 | 289 | 312.3 | 60 | 3.46 | 23 | |
| 240-249-32S0-12D | 24.0-24.9 | 32 | 292 | 325.9 | 60 | 3.62 | 24 | |
| 250-259-32S0-12D | 25.0-25.9 | 32 | 304 | 339.5 | 60 | 3.80 | 25 |
- SSC : Размер кармана D
