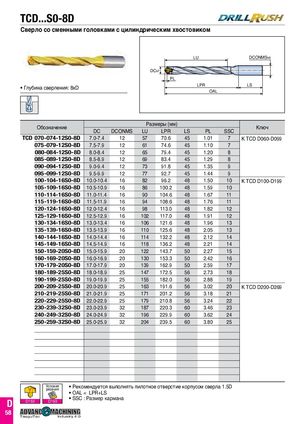

Каталог TaeguTec вращающиеся инструменты 2020 - 2021 - страница 125
Навигация
Каталог TaeguTec токарные инструменты 2020 - 2021
DC k7 PL
- Глубина сверления: 8xD
LU DCONMSh6
LPR LS OAL
| Об | Раз | меры(мм) | К | |||||
| означение | DC | DCONMS | LU | LPR | LS | PL | SSC | люч |
| TCD 070-074-12S0-8D | 7.0-7.4 | 12 | 57 | 70.6 | 45 | 1.01 | 7 | K TCD D060-D099 |
| 075-079-12S0-8D | 7.5-7.9 | 12 | 61 | 74.6 | 45 | 1.10 | 7 | |
| 080-084-12S0-8D | 8.0-8.4 | 12 | 65 | 79.4 | 45 | 1.20 | 8 | |
| 085-089-12S0-8D | 8.5-8.9 | 12 | 69 | 83.4 | 45 | 1.29 | 8 | |
| 090-094-12S0-8D | 9.0-9.4 | 12 | 73 | 91.8 | 45 | 1.35 | 9 | |
| 095-099-12S0-8D | 9.5-9.9 | 12 | 77 | 92.7 | 45 | 1.44 | 9 | |
| 100-104-16S0-8D | 10.0-10.4 | 16 | 82 | 96.2 | 48 | 1.50 | 10 | K TCD D100-D199 |
| 105-109-16S0-8D | 10.5-10.9 | 16 | 86 | 100.2 | 48 | 1.59 | 10 | |
| 110-114-16S0-8D | 11.0-11.4 | 16 | 90 | 104.6 | 48 | 1.67 | 11 | |
| 115-119-16S0-8D | 11.5-11.9 | 16 | 94 | 108.6 | 48 | 1.76 | 11 | |
| 120-124-16S0-8D | 12.0-12.4 | 16 | 98 | 113.0 | 48 | 1.82 | 12 | |
| 125-129-16S0-8D | 12.5-12.9 | 16 | 102 | 117.0 | 48 | 1.91 | 12 | |
| 130-134-16S0-8D | 13.0-13.4 | 16 | 106 | 121.6 | 48 | 1.96 | 13 | |
| 135-139-16S0-8D | 13.5-13.9 | 16 | 110 | 125.6 | 48 | 2.05 | 13 | |
| 140-144-16S0-8D | 14.0-14.4 | 16 | 114 | 132.2 | 48 | 2.12 | 14 | |
| 145-149-16S0-8D | 14.5-14.9 | 16 | 118 | 136.2 | 48 | 2.21 | 14 | |
| 150-159-20S0-8D | 15.0-15.9 | 20 | 122 | 143.7 | 50 | 2.27 | 15 | |
| 160-169-20S0-8D | 16.0-16.9 | 20 | 130 | 153.3 | 50 | 2.42 | 16 | |
| 170-179-20S0-8D | 17.0-17.9 | 20 | 139 | 162.9 | 50 | 2.59 | 17 | |
| 180-189-25S0-8D | 18.0-18.9 | 25 | 147 | 172.5 | 56 | 2.73 | 18 | |
| 190-199-25S0-8D | 19.0-19.9 | 25 | 155 | 182.0 | 56 | 2.88 | 19 | |
| 200-209-25S0-8D | 20.0-20.9 | 25 | 163 | 191.6 | 56 | 3.02 | 20 | K TCD D200-D269 |
| 210-219-25S0-8D | 21.0-21.9 | 25 | 171 | 201.2 | 56 | 3.18 | 21 | |
| 220-229-25S0-8D | 22.0-22.9 | 25 | 179 | 210.8 | 56 | 3.24 | 22 | |
| 230-239-32S0-8D | 23.0-23.9 | 32 | 187 | 220.3 | 60 | 3.46 | 23 | |
| 240-249-32S0-8D | 24.0-24.9 | 32 | 196 | 229.9 | 60 | 3.62 | 24 | |
| 250-259-32S0-8D | 25.0-25.9 | 32 | 204 | 239.5 | 60 | 3.80 | 25 |
TaeguTec Industry 4.0
D TaeguTec Industry 4.0• SSC : Размер кармана
