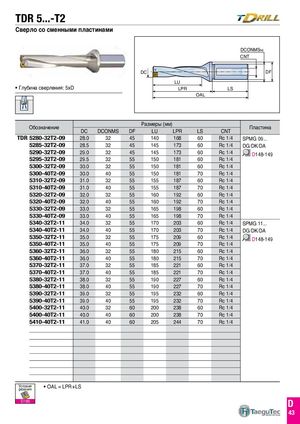

Каталог TaeguTec вращающиеся инструменты 2020 - 2021 - страница 110
Навигация
Каталог TaeguTec токарные инструменты 2020 - 2021
DC LU
Глубина сверления: 5xD LPR LS
OAL
DCONMSh6 CNT DF
| Об | Р | азмеры( | мм) | П | ||||
| означение | DC | DCONMS | DF | LU | LPR | LS | CNT | ластина |
| TDR 5280-32T2-09 | 28.0 | 32 | 45 | 140 | 168 | 60 | Rc 1/4 | SPMG 09... |
| 5285-32T2-09 | 28.5 | 32 | 45 | 145 | 173 | 60 | Rc 1/4 | DG/DK/DA |
| 5290-32T2-09 | 29.0 | 32 | 45 | 145 | 173 | 60 | Rc 1/4 | D148-149 |
| 5295-32T2-09 | 29.5 | 32 | 55 | 150 | 181 | 60 | Rc 1/4 | |
| 5300-32T2-09 | 30.0 | 32 | 55 | 150 | 181 | 60 | Rc 1/4 | |
| 5300-40T2-09 | 30.0 | 40 | 55 | 150 | 181 | 70 | Rc 1/4 | |
| 5310-32T2-09 | 31.0 | 32 | 55 | 155 | 187 | 60 | Rc 1/4 | |
| 5310-40T2-09 | 31.0 | 40 | 55 | 155 | 187 | 70 | Rc 1/4 | |
| 5320-32T2-09 | 32.0 | 32 | 55 | 160 | 192 | 60 | Rc 1/4 | |
| 5320-40T2-09 | 32.0 | 40 | 55 | 160 | 192 | 70 | Rc 1/4 | |
| 5330-32T2-09 | 33.0 | 32 | 55 | 165 | 198 | 60 | Rc 1/4 | |
| 5330-40T2-09 | 33.0 | 40 | 55 | 165 | 198 | 70 | Rc 1/4 | |
| 5340-32T2-11 | 34.0 | 32 | 55 | 170 | 203 | 60 | Rc 1/4 | SPMG 11... |
| 5340-40T2-11 | 34.0 | 40 | 55 | 170 | 203 | 70 | Rc 1/4 | DG/DK/DA |
| 5350-32T2-11 | 35.0 | 32 | 55 | 175 | 209 | 60 | Rc 1/4 | D148-149 |
| 5350-40T2-11 | 35.0 | 40 | 55 | 175 | 209 | 70 | Rc 1/4 | |
| 5360-32T2-11 | 36.0 | 32 | 55 | 180 | 215 | 60 | Rc 1/4 | |
| 5360-40T2-11 | 36.0 | 40 | 55 | 180 | 215 | 70 | Rc 1/4 | |
| 5370-32T2-11 | 37.0 | 32 | 55 | 185 | 221 | 60 | Rc 1/4 | |
| 5370-40T2-11 | 37.0 | 40 | 55 | 185 | 221 | 70 | Rc 1/4 | |
| 5380-32T2-11 | 38.0 | 32 | 55 | 190 | 227 | 60 | Rc 1/4 | |
| 5380-40T2-11 | 38.0 | 40 | 55 | 190 | 227 | 70 | Rc 1/4 | |
| 5390-32T2-11 | 39.0 | 32 | 55 | 195 | 232 | 60 | Rc 1/4 | |
| 5390-40T2-11 | 39.0 | 40 | 55 | 195 | 232 | 70 | Rc 1/4 | |
| 5400-32T2-11 | 40.0 | 32 | 60 | 200 | 238 | 60 | Rc 1/4 | |
| 5400-40T2-11 | 40.0 | 40 | 60 | 200 | 238 | 70 | Rc 1/4 | |
| 5410-40T2-11 | 41.0 | 40 | 60 | 205 | 244 | 70 | Rc 1/4 |
