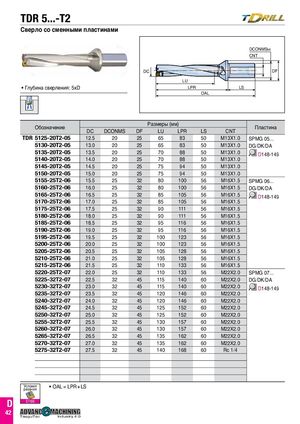

Каталог TaeguTec вращающиеся инструменты 2020 - 2021 - страница 109
Навигация
Каталог TaeguTec токарные инструменты 2020 - 2021
DCONMSh6 CNT DC DF LU
Глубина сверления: 5xD LPR LS
OAL
| Обозначение | Р | азмеры( | мм) | Пластина | ||||
| DC | DCONMS | DF | LU | LPR | LS | CNT | ||
| TDR 5125-20T2-05 | 12.5 | 20 | 25 | 65 | 83 | 50 | M13X1.0 | SPMG 05... |
| 5130-20T2-05 | 13.0 | 20 | 25 | 65 | 83 | 50 | M13X1.0 | DG/DK/DA |
| 5135-20T2-05 | 13.5 | 20 | 25 | 70 | 88 | 50 | M13X1.0 | D148-149 |
| 5140-20T2-05 | 14.0 | 20 | 25 | 70 | 88 | 50 | M13X1.0 | |
| 5145-20T2-05 | 14.5 | 20 | 25 | 75 | 94 | 50 | M13X1.0 | |
| 5150-20T2-05 | 15.0 | 20 | 25 | 75 | 94 | 50 | M13X1.0 | |
| 5155-25T2-06 | 15.5 | 25 | 32 | 80 | 100 | 56 | M16X1.5 | SPMG 06... |
| 5160-25T2-06 | 16.0 | 25 | 32 | 80 | 100 | 56 | M16X1.5 | DG/DK/DA |
| 5165-25T2-06 | 16.5 | 25 | 32 | 85 | 105 | 56 | M16X1.5 | D148-149 |
| 5170-25T2-06 | 17.0 | 25 | 32 | 85 | 105 | 56 | M16X1.5 | |
| 5175-25T2-06 | 17.5 | 25 | 32 | 90 | 111 | 56 | M16X1.5 | |
| 5180-25T2-06 | 18.0 | 25 | 32 | 90 | 111 | 56 | M16X1.5 | |
| 5185-25T2-06 | 18.5 | 25 | 32 | 95 | 116 | 56 | M16X1.5 | |
| 5190-25T2-06 | 19.0 | 25 | 32 | 95 | 116 | 56 | M16X1.5 | |
| 5195-25T2-06 | 19.5 | 25 | 32 | 100 | 123 | 56 | M16X1.5 | |
| 5200-25T2-06 | 20.0 | 25 | 32 | 100 | 123 | 56 | M16X1.5 | |
| 5205-25T2-06 | 20.5 | 25 | 32 | 105 | 128 | 56 | M16X1.5 | |
| 5210-25T2-06 | 21.0 | 25 | 32 | 105 | 128 | 56 | M16X1.5 | |
| 5215-25T2-06 | 21.5 | 25 | 32 | 110 | 133 | 56 | M16X1.5 | |
| 5220-25T2-07 | 22.0 | 25 | 32 | 110 | 133 | 56 | M22X2.0 | SPMG 07... |
| 5225-32T2-07 | 22.5 | 32 | 45 | 115 | 140 | 60 | M22X2.0 | DG/DK/DA |
| 5230-32T2-07 | 23.0 | 32 | 45 | 115 | 140 | 60 | M22X2.0 | D148-149 |
| 5235-32T2-07 | 23.5 | 32 | 45 | 120 | 146 | 60 | M22X2.0 | |
| 5240-32T2-07 | 24.0 | 32 | 45 | 120 | 146 | 60 | M22X2.0 | |
| 5245-32T2-07 | 24.5 | 32 | 45 | 125 | 152 | 60 | M22X2.0 | |
| 5250-32T2-07 | 25.0 | 32 | 45 | 125 | 152 | 60 | M22X2.0 | |
| 5255-32T2-07 | 25.5 | 32 | 45 | 130 | 157 | 60 | M22X2.0 | |
| 5260-32T2-07 | 26.0 | 32 | 45 | 130 | 157 | 60 | M22X2.0 | |
| 5265-32T2-07 | 26.5 | 32 | 45 | 135 | 162 | 60 | M22X2.0 | |
| 5270-32T2-07 | 27.0 | 32 | 45 | 135 | 162 | 60 | M22X2.0 | |
| 5275-32T2-07 | 27.5 | 32 | 45 | 140 | 168 | 60 | Rc 1/4 |
