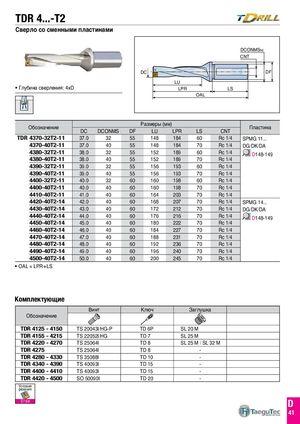

Каталог TaeguTec вращающиеся инструменты 2020 - 2021 - страница 108
Навигация
Каталог TaeguTec токарные инструменты 2020 - 2021
DC LU
Глубина сверления: 4xD LPR LS
OAL
DCONMSh6 CNT DF
| Обозначение | Р | азмеры( | мм) | Пластина | ||||
| DC | DCONMS | DF | LU | LPR | LS | CNT | ||
| TDR 4370-32T2-11 | 37.0 | 32 | 55 | 148 | 184 | 60 | Rc 1/4 | SPMG 11... |
| 4370-40T2-11 | 37.0 | 40 | 55 | 148 | 184 | 70 | Rc 1/4 | DG/DK/DA |
| 4380-32T2-11 | 38.0 | 32 | 55 | 152 | 189 | 60 | Rc 1/4 | D148-149 |
| 4380-40T2-11 | 38.0 | 40 | 55 | 152 | 189 | 70 | Rc 1/4 | |
| 4390-32T2-11 | 39.0 | 32 | 55 | 156 | 193 | 60 | Rc 1/4 | |
| 4390-40T2-11 | 39.0 | 40 | 55 | 156 | 193 | 70 | Rc 1/4 | |
| 4400-32T2-11 | 40.0 | 32 | 60 | 160 | 198 | 60 | Rc 1/4 | |
| 4400-40T2-11 | 40.0 | 40 | 60 | 160 | 198 | 70 | Rc 1/4 | |
| 4410-40T2-11 | 41.0 | 40 | 60 | 164 | 203 | 70 | Rc 1/4 | |
| 4420-40T2-14 | 42.0 | 40 | 60 | 168 | 207 | 70 | Rc 1/4 | SPMG 14... |
| 4430-40T2-14 | 43.0 | 40 | 60 | 172 | 212 | 70 | Rc 1/4 | DG/DK/DA |
| 4440-40T2-14 | 44.0 | 40 | 60 | 176 | 216 | 70 | Rc 1/4 | D148-149 |
| 4450-40T2-14 | 45.0 | 40 | 60 | 180 | 222 | 70 | Rc 1/4 | |
| 4460-40T2-14 | 46.0 | 40 | 60 | 184 | 227 | 70 | Rc 1/4 | |
| 4470-40T2-14 | 47.0 | 40 | 60 | 188 | 231 | 70 | Rc 1/4 | |
| 4480-40T2-14 | 48.0 | 40 | 60 | 192 | 236 | 70 | Rc 1/4 | |
| 4490-40T2-14 | 49.0 | 40 | 60 | 196 | 240 | 70 | Rc 1/4 | |
| 4500-40T2-14 | 50.0 | 40 | 60 | 200 | 245 | 70 | Rc 1/4 |
- OAL = LPR+LS
Комплектующие
| Винт | Ключ | Заглушка | |
| Обозначение | |||
| TDR 4125- 4150 | TS 20043I/HG-P | TD 6P | SL 20 M |
| TDR 4155- 4215 | TS 22052I/HG | TD 7 | SL 25 M |
| TDR 4220- 4270 | TS 25064I | TD 8 | SL 25 M / SL 32 M |
| TDR 4275 | TS 25064I | TD 8 | - |
| TDR 4280- 4330 | TS 35088I | TD 10 | - |
| TDR 4340- 4390 | TS 40093I | TD 15 | - |
| TDR 4400- 4410 | TS 40093I | TD 15 | - |
| TDR 4420 - 4500 | SO 50090I | TD 20 | - |
