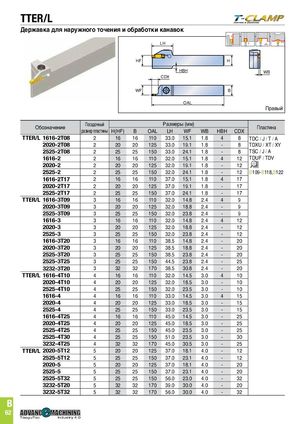

TTER/L
LH
HF H HBH WB CDX WF B OAL Правый
| Обозначение | Посадочный размерпластины | H(Hf) | B | OAL | Размер LH | ы(мм) WF | WB | HBH | CDX | Пластина |
| TTER/L 1616-2T08 | 2 | 16 | 16 | 110 | 33.0 | 15.1 | 1.8 | 4 | 8 | tdC / J / t / A |
| 2020-2T08 | 2 | 20 | 20 | 125 | 33.0 | 19.1 | 1.8 | - | 8 | tdXu / Xt / XY |
| 2525-2T08 | 2 | 25 | 25 | 150 | 33.0 | 24.1 | 1.8 | - | 8 | tSC / J / A |
| 1616-2 | 2 | 16 | 16 | 110 | 32.0 | 15.1 | 1.8 | 4 | 12 | tduf / tdV |
| 2020-2 | 2 | 20 | 20 | 125 | 32.0 | 19.1 | 1.8 | - | 12 | |
| 2525-2 | 2 | 25 | 25 | 150 | 32.0 | 24.1 | 1.8 | - | 12 | B109-B118,B122 |
| 1616-2T17 | 2 | 16 | 16 | 110 | 37.0 | 15.1 | 1.8 | 4 | 17 | |
| 2020-2T17 | 2 | 20 | 20 | 125 | 37.0 | 19.1 | 1.8 | - | 17 | |
| 2525-2T17 | 2 | 25 | 25 | 150 | 37.0 | 24.1 | 1.8 | - | 17 | |
| TTER/L 1616-3T09 | 3 | 16 | 16 | 110 | 32.0 | 14.8 | 2.4 | 4 | 9 | |
| 2020-3T09 | 3 | 20 | 20 | 125 | 32.0 | 18.8 | 2.4 | - | 9 | |
| 2525-3T09 | 3 | 25 | 25 | 150 | 32.0 | 23.8 | 2.4 | - | 9 | |
| 1616-3 | 3 | 16 | 16 | 110 | 32.0 | 14.8 | 2.4 | 4 | 12 | |
| 2020-3 | 3 | 20 | 20 | 125 | 32.0 | 18.8 | 2.4 | - | 12 | |
| 2525-3 | 3 | 25 | 25 | 150 | 32.0 | 23.8 | 2.4 | - | 12 | |
| 1616-3T20 | 3 | 16 | 16 | 110 | 38.5 | 14.8 | 2.4 | - | 20 | |
| 2020-3T20 | 3 | 20 | 20 | 125 | 38.5 | 18.8 | 2.4 | - | 20 | |
| 2525-3T20 | 3 | 25 | 25 | 150 | 38.5 | 23.8 | 2.4 | - | 20 | |
| 2525-3T25 | 3 | 25 | 25 | 150 | 44.5 | 23.8 | 2.4 | - | 25 | |
| 3232-3T20 | 3 | 32 | 32 | 170 | 38.5 | 30.8 | 2.4 | - | 20 | |
| TTER/L 1616-4T10 | 4 | 16 | 16 | 110 | 32.0 | 14.5 | 3.0 | 4 | 10 | |
| 2020-4T10 | 4 | 20 | 20 | 125 | 32.0 | 18.5 | 3.0 | - | 10 | |
| 2525-4T10 | 4 | 25 | 25 | 150 | 32.0 | 23.5 | 3.0 | - | 10 | |
| 1616-4 | 4 | 16 | 16 | 110 | 33.0 | 14.5 | 3.0 | 4 | 15 | |
| 2020-4 | 4 | 20 | 20 | 125 | 33.0 | 18.5 | 3.0 | - | 15 | |
| 2525-4 | 4 | 25 | 25 | 150 | 33.0 | 23.5 | 3.0 | - | 15 | |
| 1616-4T25 | 4 | 16 | 16 | 110 | 45.0 | 14.5 | 3.0 | - | 25 | |
| 2020-4T25 | 4 | 20 | 20 | 125 | 45.0 | 18.5 | 3.0 | - | 25 | |
| 2525-4T25 | 4 | 25 | 25 | 150 | 45.0 | 23.5 | 3.0 | - | 25 | |
| 2525-4T30 | 4 | 25 | 25 | 150 | 51.0 | 23.5 | 3.0 | - | 30 | |
| 3232-4T25 | 4 | 32 | 32 | 170 | 45.0 | 30.5 | 3.0 | - | 25 | |
| TTER/L 2020-5T12 | 5 | 20 | 20 | 125 | 37.0 | 18.1 | 4.0 | - | 12 | |
| 2525-5T12 | 5 | 25 | 25 | 150 | 37.0 | 23.1 | 4.0 | - | 12 | |
| 2020-5 | 5 | 20 | 20 | 125 | 37.0 | 18.1 | 4.0 | - | 20 | |
| 2525-5 | 5 | 25 | 25 | 150 | 37.0 | 23.1 | 4.0 | - | 20 | |
| 2525-5T32 | 5 | 25 | 25 | 150 | 56.0 | 23.0 | 4.0 | - | 32 | |
| 3232-5T20 | 5 | 32 | 32 | 170 | 39.0 | 30.0 | 4.0 | - | 20 | |
| 3232-5T32 | 5 | 32 | 32 | 170 | 56.0 | 30.0 | 4.0 | - | 32 |
