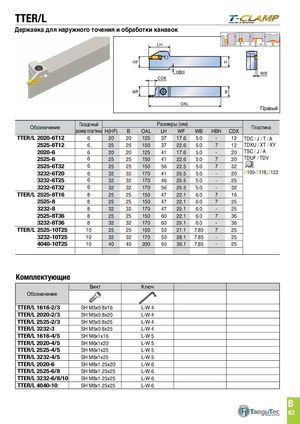

Каталог TaeguTec токарные инструменты 2020 - 2021 - страница 426
Навигация
Каталог TaeguTec вращающиеся инструменты 2020 - 2021
TTER/L
LH
HF H HBH WB CDX WF B OAL Правый Посадочный Размеры (мм)
Обозначение размер пластины Пластина
| H(Hf) | B | OAL | LH | WF | WB | HBH | CDX | |||
| TTER/L 2020-6T12 | 6 | 20 | 20 | 125 | 37 | 17.6 | 5.0 | - | 12 | tdC / J / t / A |
| 2525-6T12 | 6 | 25 | 25 | 150 | 37 | 22.6 | 5.0 | 7 | 12 | tdXu / Xt / XY |
| 2020-6 | 6 | 20 | 20 | 125 | 41 | 17.6 | 5.0 | - | 20 | tSC / J / A |
| 2525-6 | 6 | 25 | 25 | 150 | 41 | 22.6 | 5.0 | 7 | 20 | tduf / tdV |
| 2525-6T32 | 6 | 25 | 25 | 150 | 56 | 22.5 | 5.0 | 7 | 32 | |
| 3232-6T20 | 6 | 32 | 32 | 170 | 41 | 29.5 | 5.0 | - | 20 | B109-B118,B122 |
| 3232-6T25 | 6 | 32 | 32 | 170 | 46 | 29.5 | 5.0 | - | 25 | |
| 3232-6T32 | 6 | 32 | 32 | 170 | 56 | 29.5 | 5.0 | - | 32 | |
| TTER/L 2525-8T16 | 8 | 25 | 25 | 150 | 47 | 22.1 | 6.0 | 7 | 16 | |
| 2525-8 | 8 | 25 | 25 | 150 | 47 | 22.1 | 6.0 | 7 | 25 | |
| 3232-8 | 8 | 32 | 32 | 170 | 47 | 29.1 | 6.0 | - | 25 | |
| 2525-8T36 | 8 | 25 | 25 | 150 | 60 | 22.1 | 6.0 | 7 | 36 | |
| 3232-8T36 | 8 | 32 | 32 | 170 | 60 | 29.1 | 6.0 | - | 36 | |
| TTER/L 2525-10T25 | 10 | 25 | 25 | 150 | 50 | 21.1 7.85 | 7 | 25 | ||
| 3232-10T25 | 10 | 32 | 32 | 170 | 50 | 28.1 | 7.85 | - | 25 | |
| 4040-10T25 | 10 | 40 | 40 | 200 | 50 | 36.1 | 7.85 | - | 25 |
Комплектующие
Винт Ключ Обозначение
| TTER/L 1616-2/3 | SH M5x0.8x16 | L-W 4 |
| TTER/L 2020-2/3 | SH M5x0.8x20 | L-W 4 |
| TTER/L 2525-2/3 | SH M5x0.8x25 | L-W 4 |
| TTER/L 3232-3 | SH M5x0.8x25 | L-W 4 |
| TTER/L 1616-4/5 | SH M6x1x16 | L-W 5 |
| TTER/L 2020-4/5 | SH M6x1x20 | L-W 5 |
| TTER/L 2525-4/5 | SH M6x1x25 | L-W 5 |
| TTER/L 3232-4/5 | SH M6x1x25 | L-W 5 |
| TTER/L 2020-6 | SH M8x1.25x20 | L-W 6 |
| TTER/L 2525-6/8 | SH M8x1.25x25 | L-W 6 |
| TTER/L 3232-6/8/10 | SH M8x1.25x25 | L-W 6 |
| TTER/L 4040-10 | SH M8x1.25x25 | L-W 6 |
