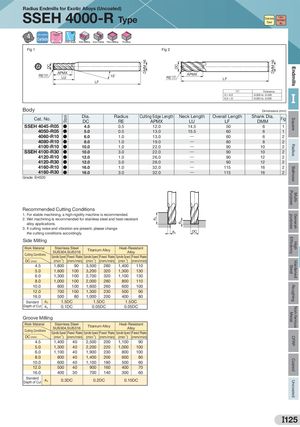

Общий каталог Sumitomo 2019 - 2020 - страница 809

DC Stock DMM h6 ap DC ap DMM h6 UncoatedCoatedCFRPNon-ferrousMetalRoughingHardenedSteelHighEfficiencyGeneral-purposeMulti-PurposeBallnoseRadiusSquareEndmills Radius Endmills for Exotic Alloys (Uncoated) SSEH 4000-R Type Stainless Ti Alloy /Heat ResistantSteelAlloy Uncoated Corner Flutes Carbide Helix Angle Side Milling Groove Finishing Face Milling Profiling Fig 1 Fig 2 APMXRE+0.02-0.01LU 15˚ APMXRE+0.02-0.01 LF LF DC Tolerance D ≤ 6.06.0 < D -0.028 to -0.043-0.033 to -0.052 I Body Dimensions (mm) Cat. No. Dia.DC RadiusRE Cutting Edge Length Neck Length Overall LengthAPMXLULF Shank Dia.DMM Fig SSEH 4045-R05 ● 4.5 0.5 12.0 14.5 50 6 1 SSEH 4050-R05 ● 5.0 0.5 13.0 15.5 60 6 1 SSEH 4060-R10 ● 6.0 1.0 13.0 ― 60 6 2 SSEH 4080-R10 ● 8.0 1.0 19.0 ― 80 8 2 SSEH 4100-R10 ● 10.0 1.0 22.0 ― 90 10 2 SSEH 4100-R30 ● 10.0 3.0 22.0 ― 90 10 2 SSEH 4120-R10 ● 12.0 1.0 26.0 ― 90 12 2 SSEH 4120-R30 ● 12.0 3.0 26.0 ― 90 12 2 SSEH 4160-R10 ● 16.0 1.0 32.0 ― 115 16 2 SSEH 4160-R30 ● 16.0 3.0 32.0 ― 115 16 2 Grade: EH520 Recommended Cutting Conditions 1. For stable machining, a high-rigidity machine is recommended. 2. Wet machining is recommended for stainless steel and heat-resistant alloy applications. 3. ‌If cutting noise and vibration are present, please change the cutting conditions accordingly. ae DC Side Milling Work MaterialCutting Conditions Stainless SteelSUS304,SUS316 Titanium Alloy Heat-ResistantAlloySpindle Speed Feed Rate Spindle Speed Feed Rate Spindle Speed Feed Rate DC (mm) (min-1) (mm/min) (min-1) (mm/min) (min-1) (mm/min) 4.5 1,800 90 3,500 280 1,400 110 5.0 1,600 100 3,200 320 1,300 130 6.0 1,300 100 2,700 320 1,100 130 8.0 1,000 100 2,000 280 800 110 10.0 800 100 1,600 260 600 100 12.0 700 100 1,300 230 500 90 16.0 500 80 1,000 200 400 80 Standard ap 1.5DC 1.5DC 1.5DC Depth of Cut ae 0.1DC 0.05DC 0.05DC Groove Milling Work MaterialCutting Conditions Stainless SteelSUS304,SUS316 Titanium Alloy Heat-ResistantAlloySpindle Speed Feed Rate Spindle Speed Feed Rate Spindle Speed Feed Rate DC (mm) (min-1) (mm/min) (min-1) (mm/min) (min-1) (mm/min) 4.5 1,400 40 2,500 200 1,100 90 5.0 1,300 40 2,200 220 1,000 100 6.0 1,100 40 1,900 230 800 100 8.0 800 40 1,400 200 600 80 10.0 600 40 1,100 180 500 80 12.0 500 40 900 160 400 70 16.0 400 30 700 140 300 60 StandardDepth of Cutap 0.3DC 0.2DC 0.15DC I125
